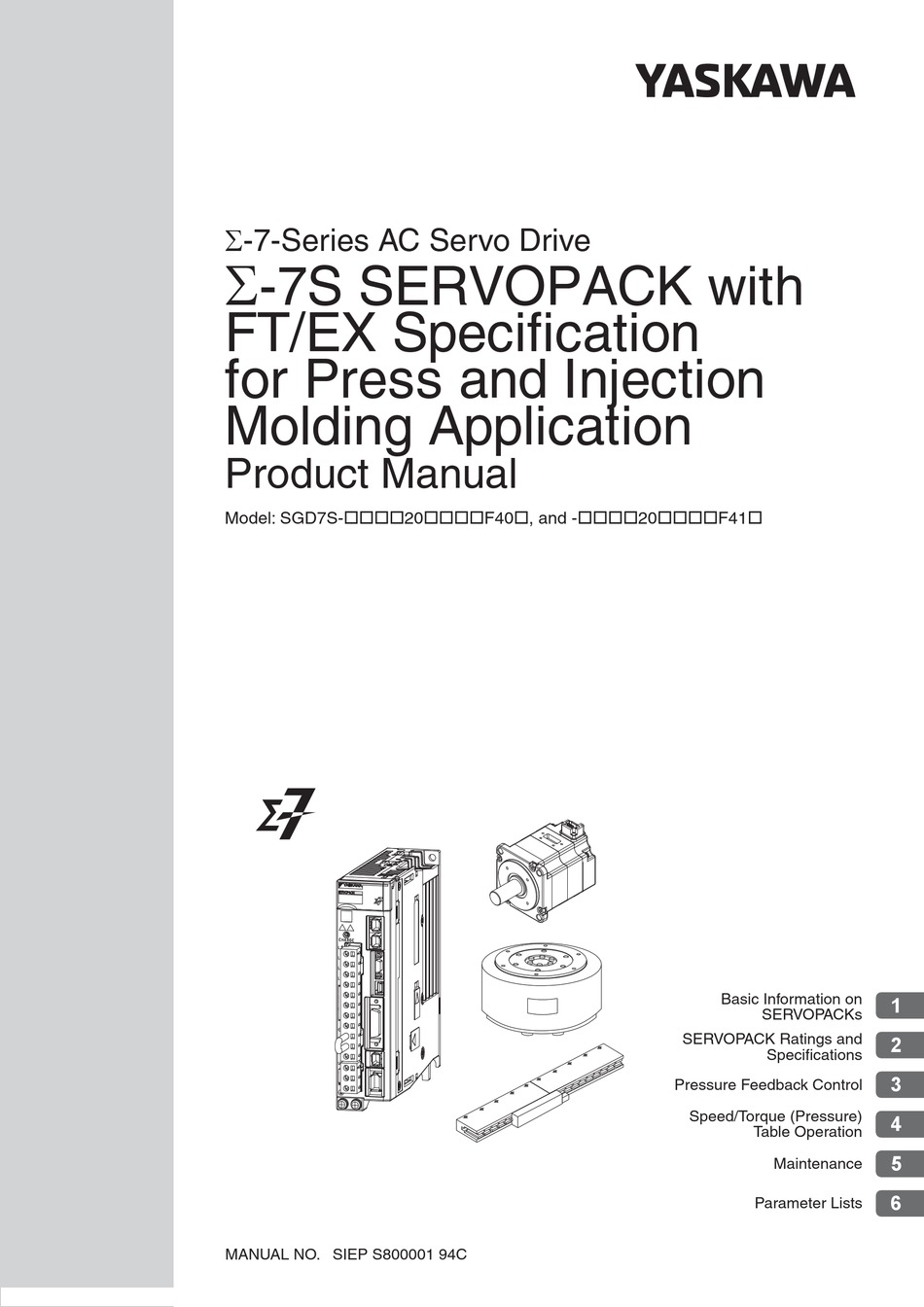

-7-Series AC Servo Drive
-7S SERVOPACK with
FT/EX Specification
for Press and Injection
Molding Application
Product Manual
Model: SGD7S-20F40, and -20F41
MANUAL NO. SIEP S800001 94C
Basic Information on
SERVOPACKs
SERVOPACK Ratings and
Specifications
Pressure Feedback Control
Speed/Torque (Pressure)
Table Operation
Maintenance
Parameter Lists
1
2
3
4
5
6
