Display information

Vector display

46
To turn on the Multi-Input display mode, select Multi-Input Display and press
SEL. Next, press the FULL button to view the waveform in Multi-Input mode.
NOTE.
The Multi-Input menu option is only available in the WFM pop-up menu
when the feature is enabled from the MAIN button or CONFIG button menu. (See
page 28, Multi-Input display mode.)
NOTE.
The 3D display menu options are only available in the WFM pop-up menu
when the feature is enabled from the MAIN button menu. (See page 34, 3D input
monitoring.)
To cancel any horizontal or vertical position adjustments and restore the trace to
the default position, select Center Waveform and press SEL. For a tile in WFM
mode, this puts the baseline at the zero graticule.
The VECT button calls up the Vector and Lightning displays, which provide for
selection between two plots of the color portions of the signal. (See Figure 29.)
(See Figure 30.)

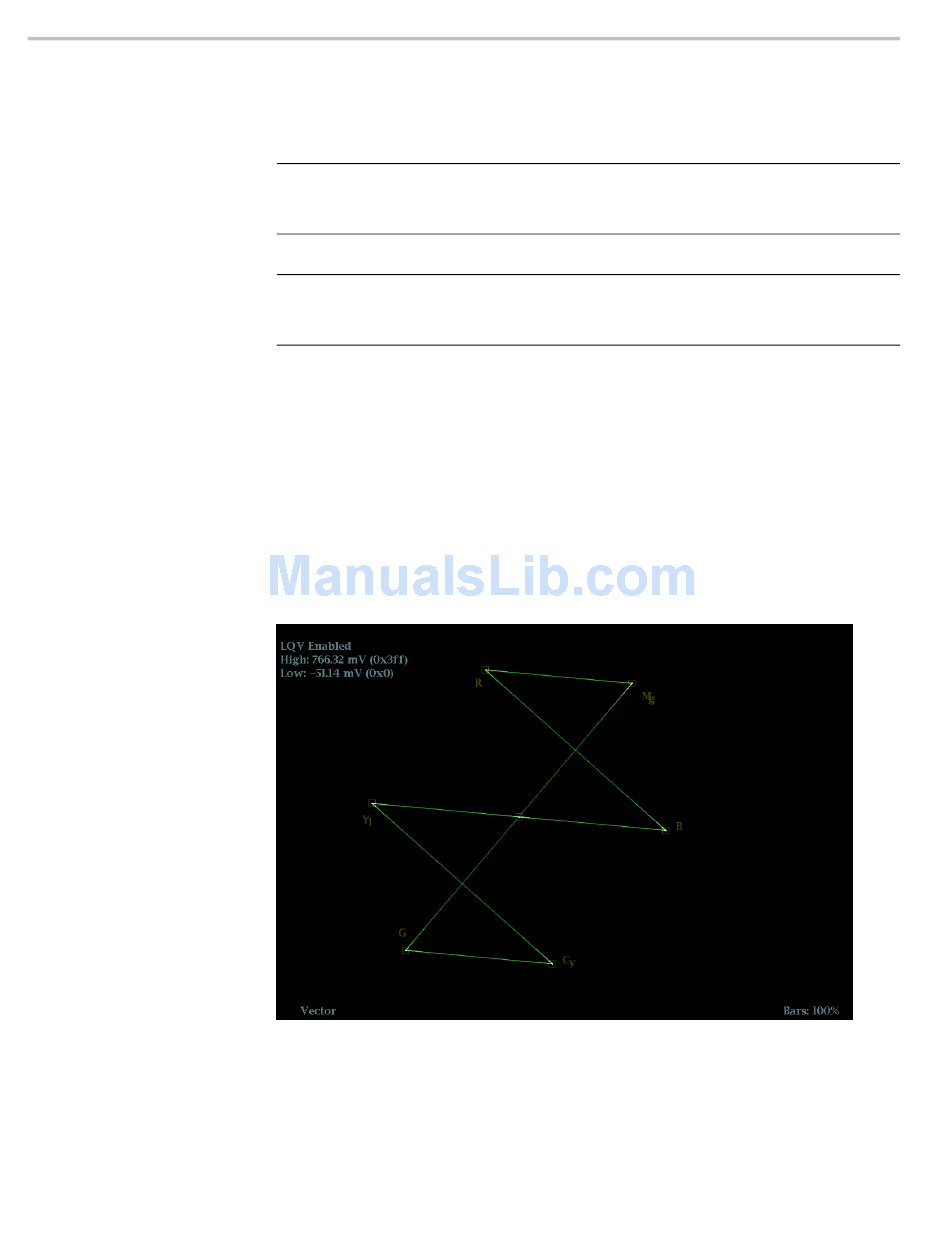

Figure 29: Vector display with Luma Qualified Vector (LQV) enabled
WVR8200 and WVR8300 User Manual
