Figure 61: Vchip, Cc-Display, Teletext, And Safe Area Graticule In Picture Display - Tektronix WVR8200 User Manual

Elements of the Picture
display
WVR8200 and WVR8300 User Manual
In full-screen mode, there is no cropping. Pictures are decimated horizontally or
vertically for the correct aspect ratio. This decimation may cause some artifacts.
This behavior may be evident on a sweep signal. Also see the online help for the
Picture Aspect Ratio for related information. Display can be set to include Closed
Captioning text or Teletext subtitles overlaid on the picture.
The VChip, CC-display, Teletext, and Safe Area Graticule are described below.
(See Figure 61.)
1. VChip Area: Displays detected VChip ratings from any of these systems:
MPAA (US), TV (US), Canadian English, and Canadian French. VChip
information is labeled CA (Content Advisory).
2. Safe Graticules: SMPTE, BBC, and ARIB B-4 standards for safe area
graticules allow for selection of up to two Safe Area and two Safe Title
graticules. Custom graticules with adjustable areas can also be specified.
3. Closed Caption Text and Teletext Area: Displays closed captioning or
Teletext, configurable to decode to the following Closed Caption and Teletext
standards.
For Composite: CEA-608-line-21 (VBI), TeletextB VBI (PAL)
For SD: CEA-608-line-21, TeletextB VBI (625), CEA-608 (ANC),
CEA-608 (708), CEA-708, TeletextB VBI, TeletextB OP47 SDP (ANC),
and TeletextB OP47 Multi (ANC)
For HD and 3G: CEA-608 (ANC), CEA-608 (708), CEA-708, TeletextB
VBI, TeletextB OP47 SDP (ANC), and TeletextB OP47 Multi (ANC)

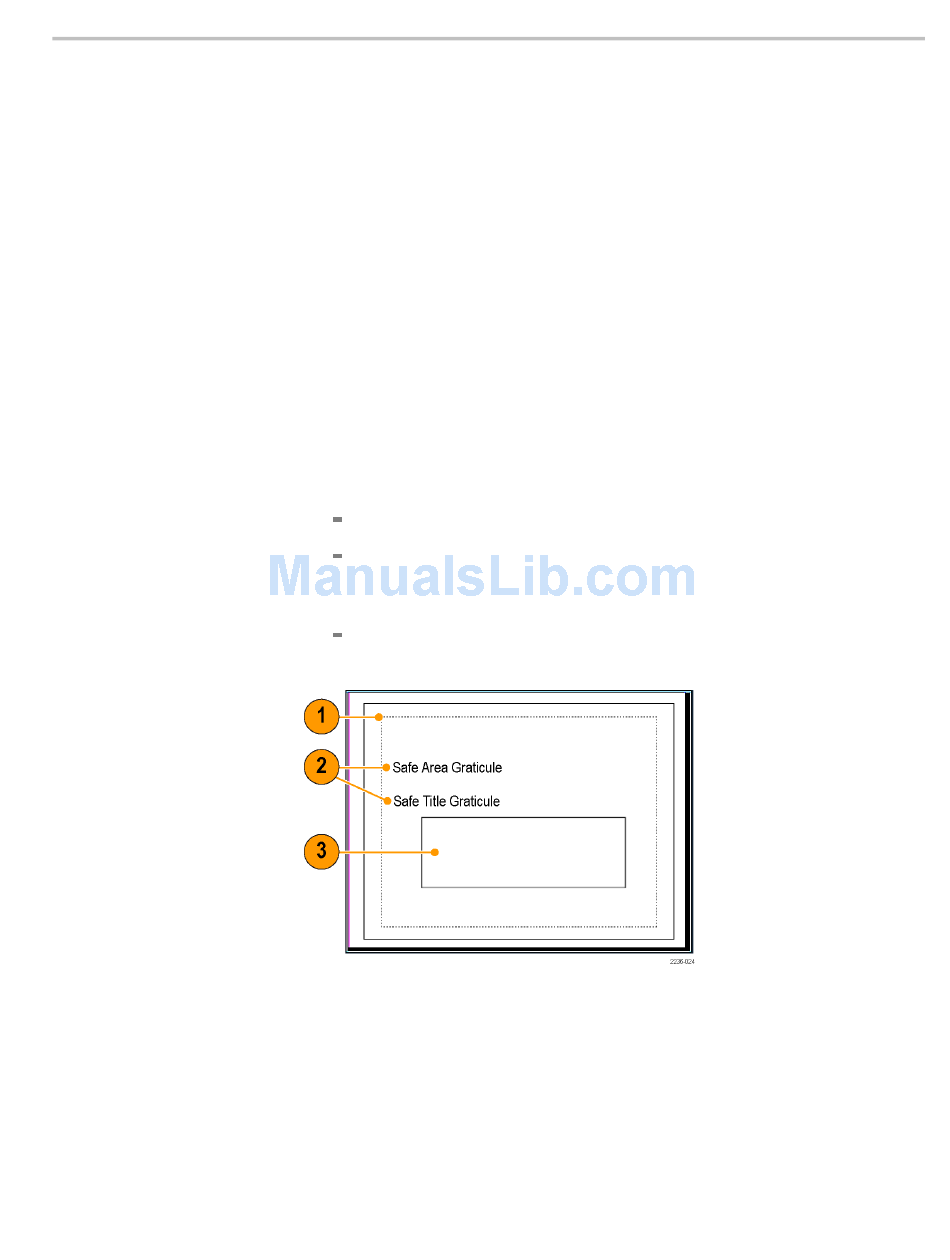

Figure 61: VChip, CC-display, Teletext, and Safe Area Graticule in Picture display

Display information
