Using ARIB displays

ARIB STD-B.35 display and status screens

152
The ARIB STD-B.35 display shows the decoded data for video signals using
ancillary data compliant with ARIB STD-B.35. (See Figure 78.) When this
display is selected, the instrument searches the signal for ARIB STD-B.35 packets
using the DID/SDID combinations defined by ARIB.

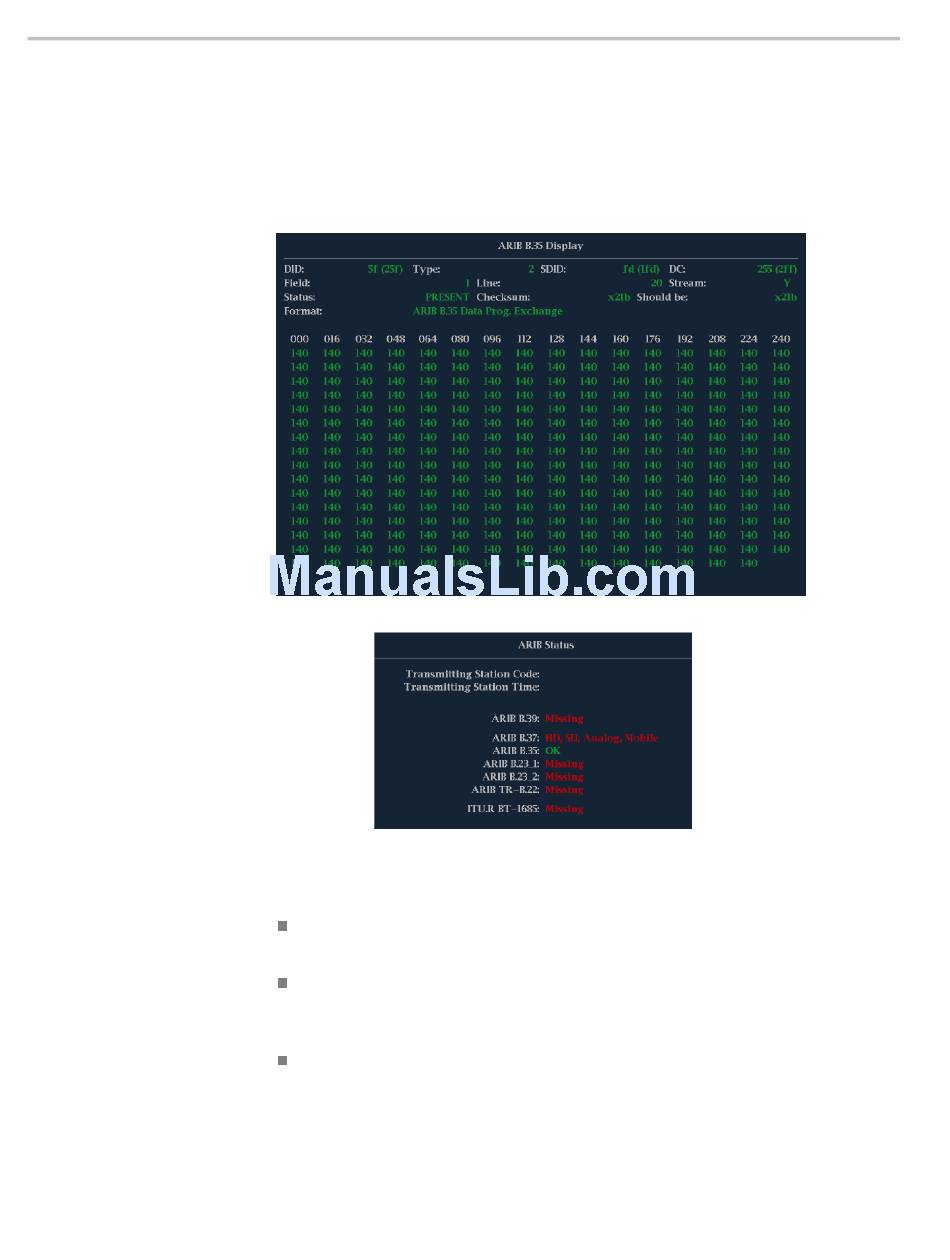

Figure 78: ARIB STD-B.35 display (with the associated ARIB Status display)
The decoded ancillary data includes the following:
DID - Data Identifier of the requested packet; permissible values range from 1
to 0xFF (255) inclusive.
Type - Type of the ANC Data packet. For ARIB B.35, this is always a Type 2
packet (DID less than 0x80), as defined by SMPTE 291M. The actual value
(with parity bits added) is displayed in parentheses.
SDID - Secondary Data Identifier of the requested packet; permissible values
range from 0 through 0xFF (255) inclusive. This field only appears when
a Type 2 packet is selected (see above). The actual value (with parity bits
added) is displayed in parentheses.
