Getting acquainted with your instrument
Switch from 4-tile to single tile (full-screen) view by pressing the FULL button.
Press the FULL button again to return to 4-tile view. (See Figure 6.)

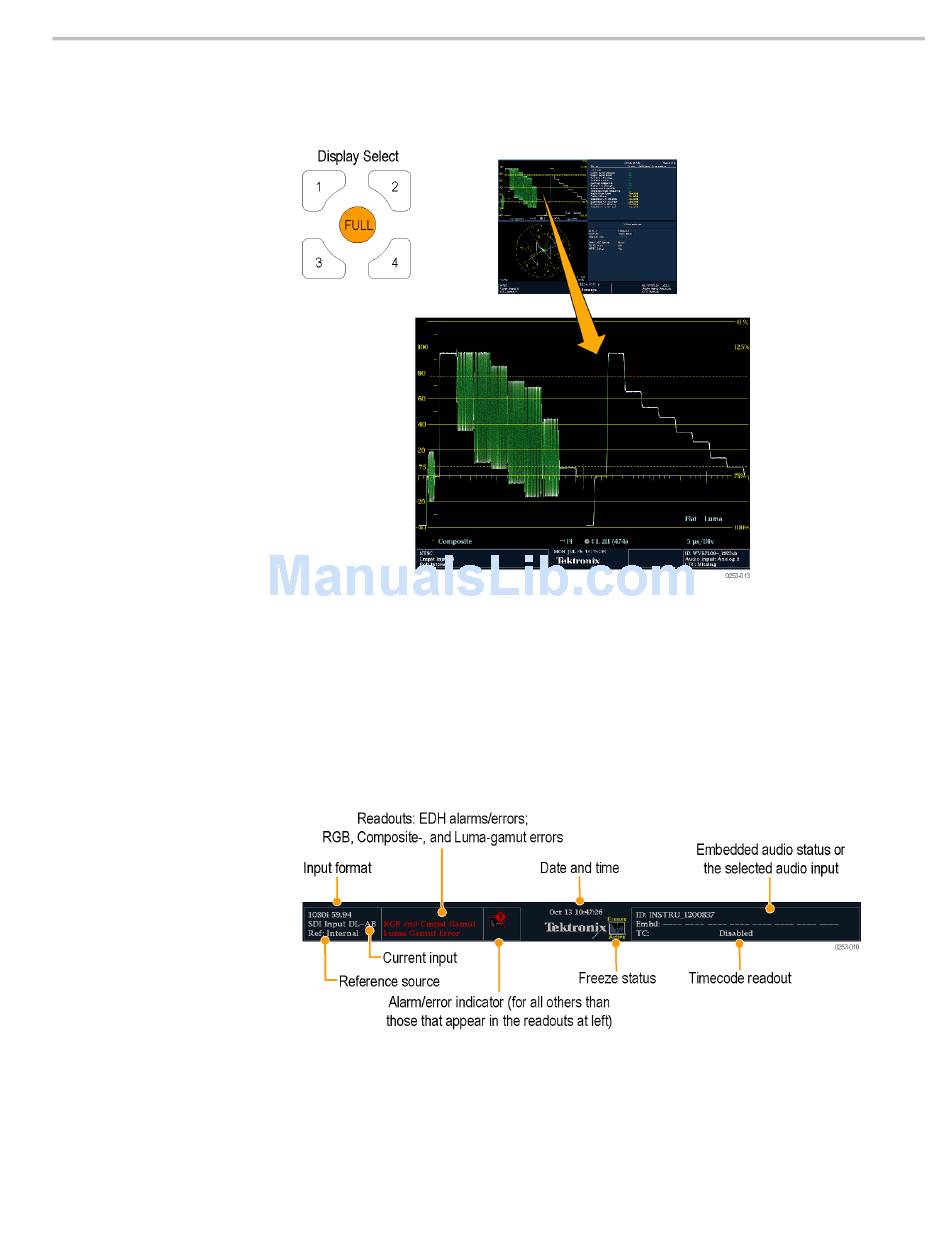

Figure 6: Full button function

Status bar
The Status Bar is located on the bottom of the instrument display and shows
instrument status and monitored signal information. (See Figure 7.) (See
Figure 8.)
When a single input is being monitored, the status bar shows the type of signal,
any alarms associated with that signal, and other information. (See Figure 7.)

Figure 7: Status bar in single input mode

WVR8200 and WVR8300 User Manual 19
