Display information

Picture display

UHDTV1/4K picture display
102
Pressing the PICT button calls up the Picture display, which lets you see the
picture generated by the video signal. You can choose to display the picture with
or without a Picture Frame, VChip, Closed Captioning (CC), Teletext, and Safe
Area Graticules. (See Figure 59.) (See page 179, Closed caption (CC), Teletext,
AFD, and Safe Area compliance.)

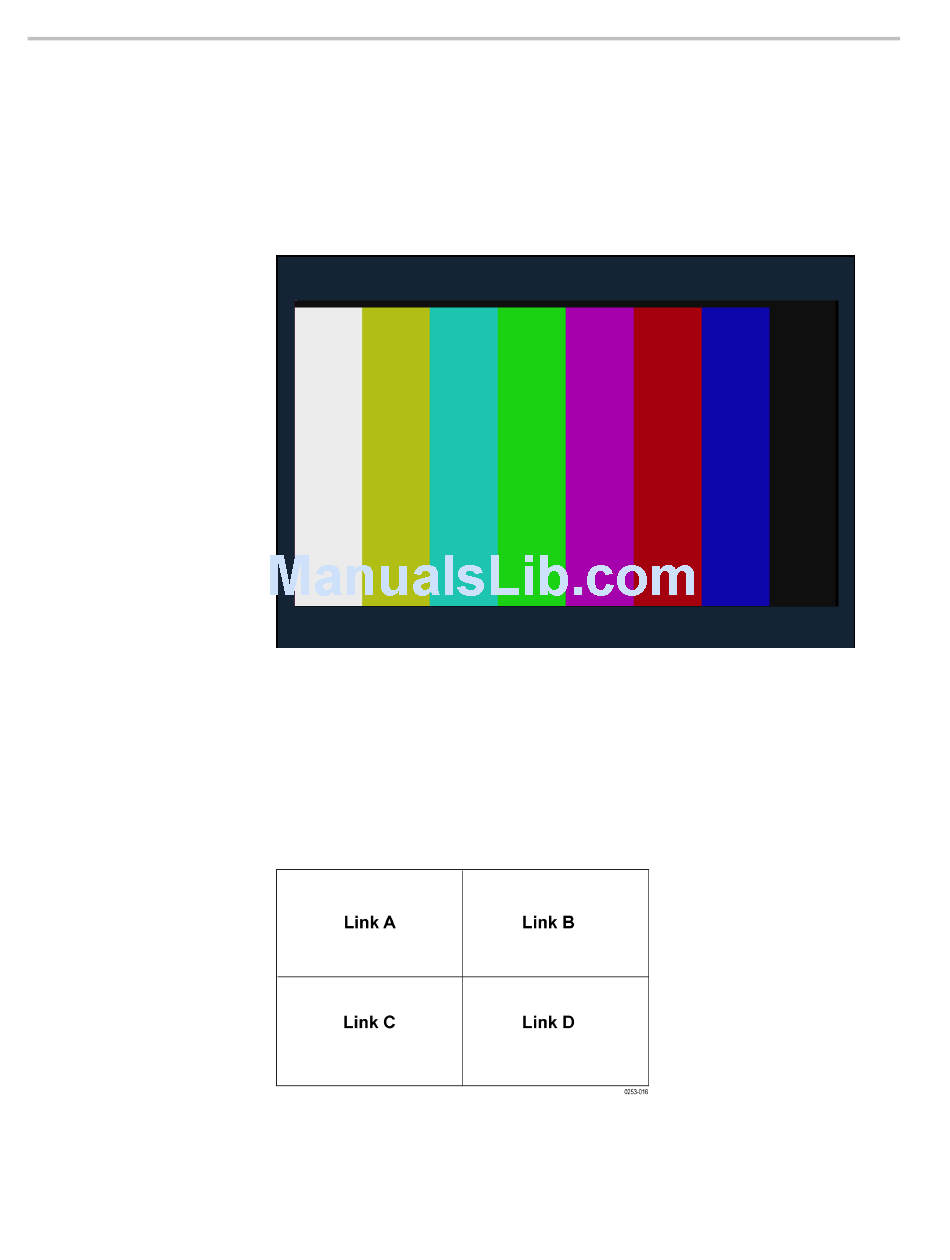

Figure 59: Picture display showing color bars
To be displayed properly, the UHDTV1/4K signal must be in square division
format and each of the four links must be connected correctly to the SDI inputs.
(See page 23, UHDTV1/4K signals.)
In square division signals, the four links of the signal combine to display the
video picture as shown below.
Figure 60: Mapping of the four links that make up a UHDTV1/4K format signal
