Configuring audio inputs
for embedded 16-channel
audio
WVR8200 and WVR8300 User Manual

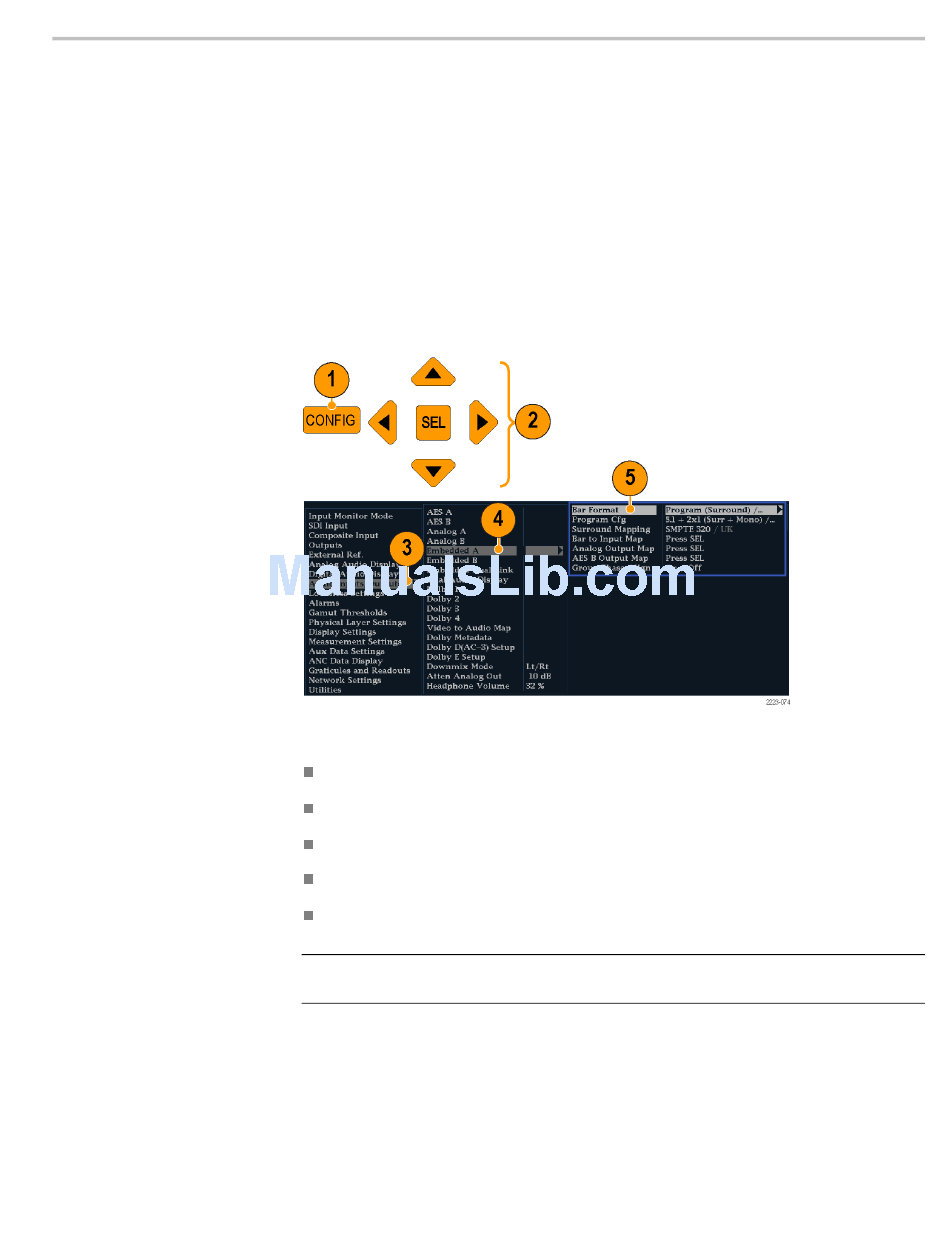

To set up an audio input for embedded 16-channel audio:
1. Press the CONFIG button to display the configuration menu.
2. Use the arrow keys and SEL button to make selections in the steps that follow.
3. Select Digital Audio Displays.
4. Select Embd 16-Ch Ballistics.
5. Select the appropriate ballistics from the available list (True Peak, PPM
Type 1, and PPM Type 2). If the previous selection was VU Ballistics, the
instrument will default to PPM Type 2 ballistics.
The following functions are not supported for 16-channel audio:
Audio input to bar mapping
Audio output mapping
Correlation meters
Lissajous and phase displays
Headphone
NOTE.
You cannot modify the input and output mapping because the mappings
are fixed for 16-channel audio.
Display information
99
