Elements of the Vector
display
Vector pop-up menu
WVR8200 and WVR8300 User Manual

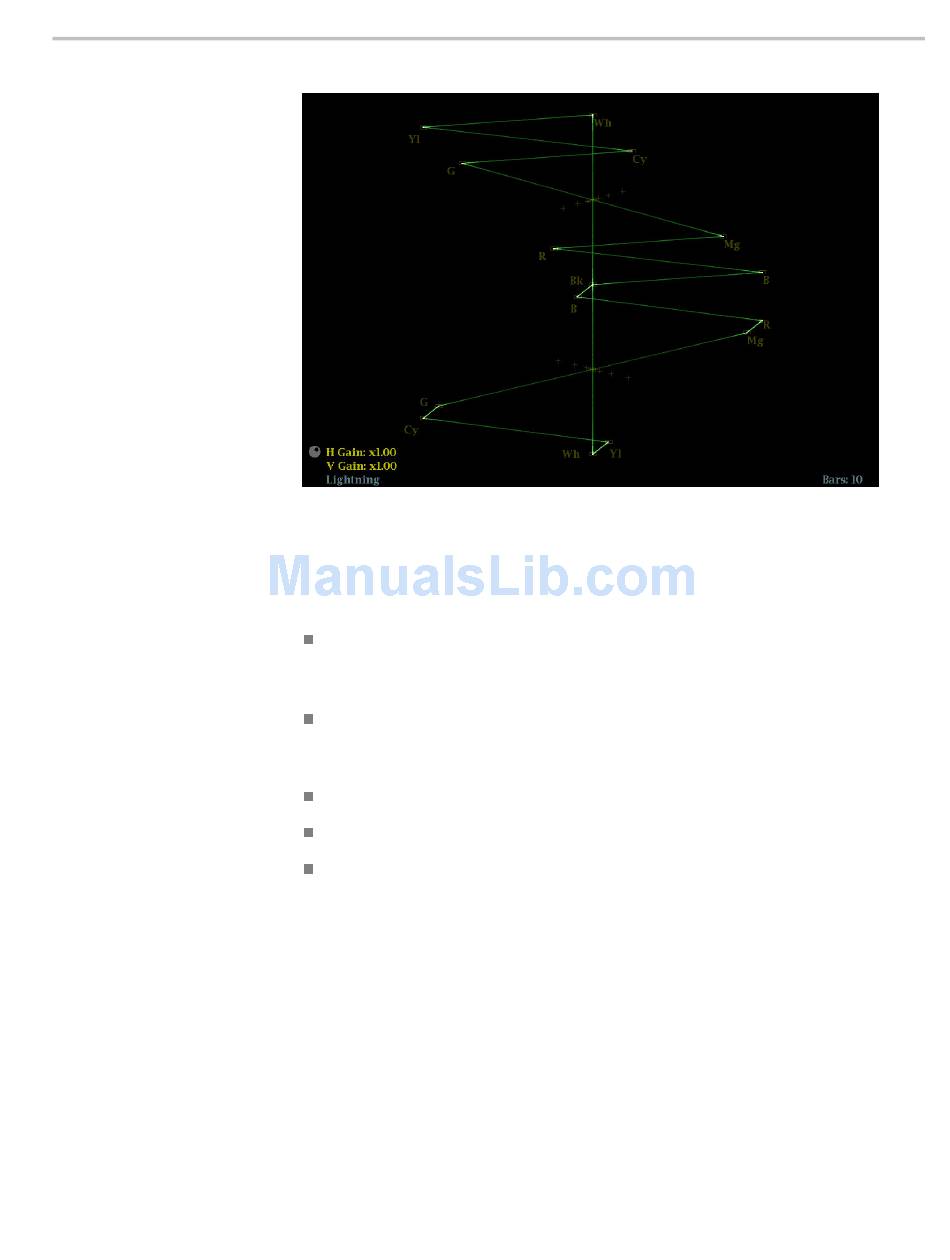

Figure 30: Lightning display

The following elements appear on the display. Some elements may only appear
on one display type.
V Gain. Press and hold the GAIN button to select V Gain settings. Then
select the gain to 1X, 2X, 5X, 10X, or Variable. (Variable enables you to
adjust the vertical gain using the GENERAL knob.)
H Gain. Press and hold the MAG button to select H Gain Settings. Then
select the horizontal gain to 2X, 5X, 10X, or Variable. (Variable enables you
to adjust the horizontal gain using the GENERAL knob.)
Display Type. The selected display, either Lightning or Vector.
Bar Target Setting. The bar target setting, either 75% or 100%.
LQV Enabled. Luma qualified vector is enabled and luma high (High) and
luma low (Low) values are displayed. (Requires Option PROD.)
The Vector pop-up menu enables you to specify the display type and display mode
(SDI inputs only), to set the bar targets, to turn on the Multi-Input display mode,
and to center the waveform in the display.
If you have Option PROD installed, you can also select to turn Luma Qualified
Vector On or Off. When it is on, you can set luma high and luma low parameters
Display information
47
