Alarm Status display
WVR8200 and WVR8300 User Manual
View current alarm status. (See Figure 46.)

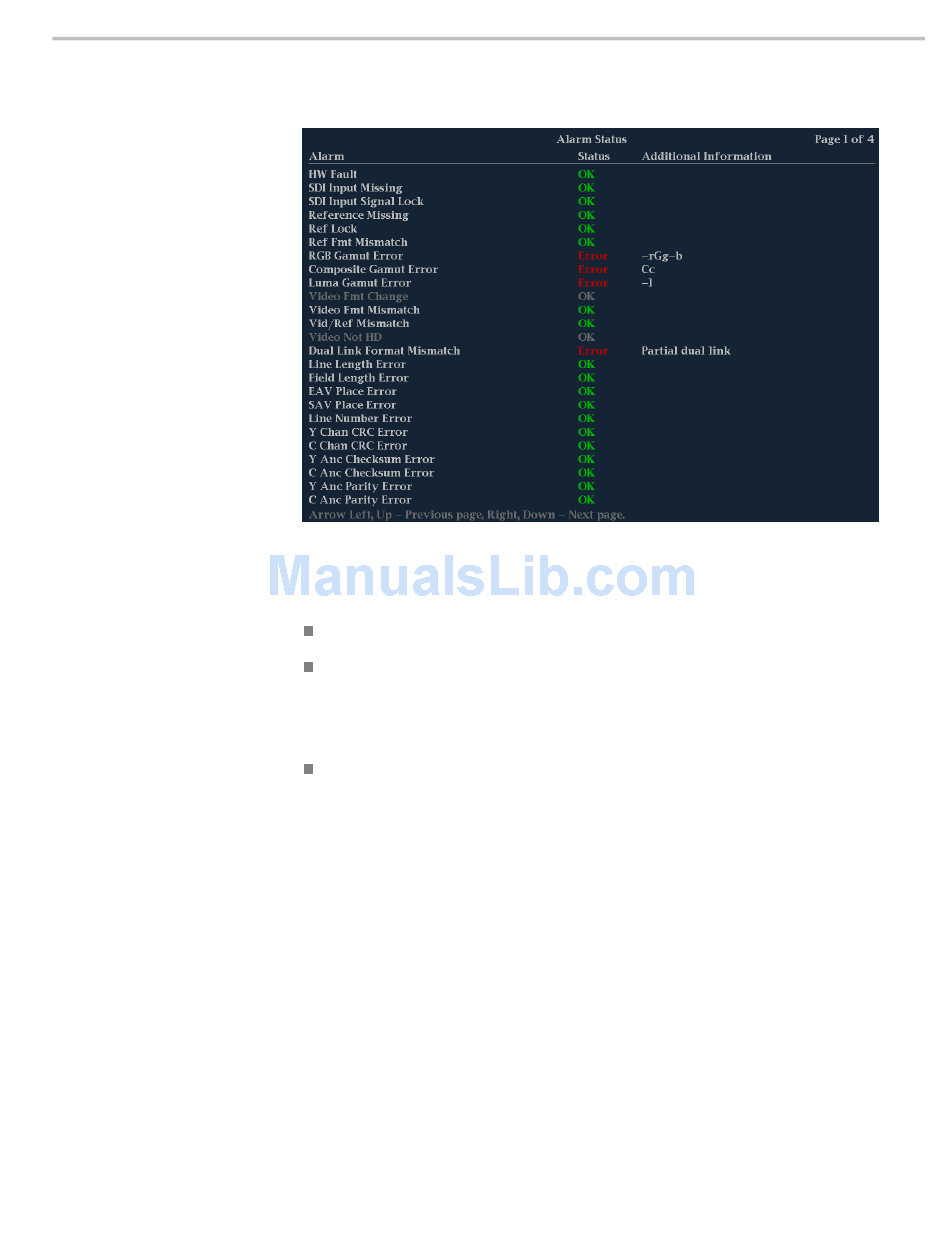

Figure 46: Alarm Status display

Elements of the Alarm Status display.
Alarm: Shows alarms that occurred.
Status: Shows whether an error occurred but has cleared (green), whether an
error has appeared in the last 5 seconds but has cleared (yellow), or whether
an error is ongoing (red). Gray indicates the alarm is not being logged but
still provides information on the function.
Additional Information: Provides explanatory information about the error,
if available.
Alarm Status pop-up menu. Mute Alarms mutes alarms for all Status display
types.
Display information
73
