- Page 1 WVR5200 Waveform Rasterizers System Integration Technical Reference *P077054900* 077-0549-00...
- Page 3 WVR5200 Waveform Rasterizers System Integration Technical Reference Warning The service instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
- Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 5: Table Of Contents
General Safety Summary ..................Service Safety Summary..................Preface ....................... Where to Find More Information ................Physical, Environmental, and Power Specifications ............Rack Installation ....................Instrument Connectors ..................... Video System Installation..................Power-On and Power-Off Procedure ................Network Operation ....................WVR5200 System Integrator... -
Page 6: General Safety Summary
Do not operate in wet/damp conditions. Do not operate in an explosive atmosphere. Keep product surfaces clean and dry. Provide proper ventilation. Refer to the manual's installation instructions for details on installing the product so it has proper ventilation. WVR5200 System Integrator... - Page 7 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: WVR5200 System Integrator...
-
Page 8: Service Safety Summary
Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. WVR5200 System Integrator... -
Page 9: Preface

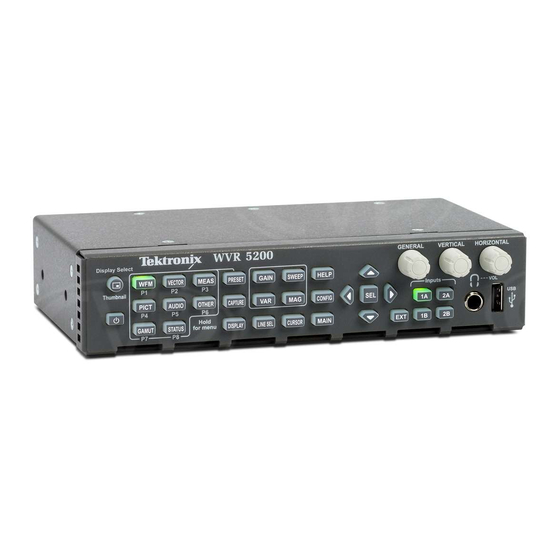

Preface This document provides information for system integrators who are designing systems for high-definition (HD), standard-definition (SD), and 3 Gb/s SDI digital video content where the Tektronix WVR5200 Waveform Rasterizer is to be deployed. Where to Find More Information The following tables list the documentation that is available for the product and shows where you can find it: in a printed manual, on the product documentation... - Page 10 These photos might be useful if you need to present information WVR5200 to your customer Front and rear panel line art This line art might be useful if you need to present information Product Documentation to your customer CD and this manual WVR5200 System Integrator...
-
Page 11: Physical, Environmental, And Power Specifications
0 °C to +40 °C Nonoperating -20 °C to +60 °C Humidity Operating 20% to 80% RH (relative humidity) at up to +40 °C, noncondensing Nonoperating 5% to 90% RH (relative humidity) at up to +60 °C, noncondensing WVR5200 System Integrator... - Page 12 The intake air vents in the front of the instrument must not be blocked and the rear exhaust vents requires at least 1 inch of clearance. No clearance is required above or below the instrument. WVR5200 System Integrator...
-
Page 13: Rack Installation
fit one or two (side by side) instruments. See the instruction manual that is included with the rack adapter kit for installation procedures. Figure 1: Depth dimensions of WVR5200 in a standard 19 inch rack. WVR5200 System Integrator... -
Page 14: Instrument Connectors
NOTE. More illustrations and photographs of these instruments are available in JPEG format on the Tektronix Web site (www.tektronix.com) and on the Product Documentation CD that was shipped with your instrument. Figure 2: Rear panel... - Page 15 The SDI OUT can be selected to output either the looped-through input signal or a test signal that contains configurable error brightups. This is done from the Config > Outputs > SDI Output menu. The following table lists the characteristics of the SDI video connectors. WVR5200 System Integrator...
- Page 16 first four instrument presets in group “A” using ground closure. The following table lists the signal characteristics of the Remote connector. NOTE. For more information on Preset recall, refer to the user manual on the Product Documentation CD that was shipped with your instrument. WVR5200 System Integrator...
- Page 17 The EXT DISPLAY connector is a female DVI-I connector with socket contacts. This is the external display monitor output. The display resolution is 1024 x 768. The output supports DVI monitors directly and analog PC (RGB) monitors with the use of a DVI-I to VGA adapter. WVR5200 System Integrator...
- Page 18 Blue – (Link 2) Digital clock – (Links 1 and 2) Analog red Analog horizontal sync Analog green Analog ground Return for R, G, B signals Analog blue Characteristic Description Output Connector DVI-I (integrated, digital and analog) WVR5200 System Integrator...
- Page 19 Name Description TX_D1+ Transceive Data+ TX_D1- Transceive Data- RX_D2+ Receive Data+ Not used Not used RX_D2- Receive Data- Not used Not used Description Characteristic Ethernet connector RJ-45 LAN supporting 10/100/1000 BaseT; supports manual and DHCP address modes WVR5200 System Integrator...
- Page 20 USB memory drive. The following table describes the signal characteristics of the USB connector. Table 10: USB connector specifications Connector Characteristic Description Type Host Speed Complies with USB 1.1 and 2.0 Full Speed Specification (12 Mb/s) WVR5200 System Integrator...
-
Page 21: Video System Installation
The instrument can operate almost anywhere in the distribution system where serial digital system monitoring is needed. For Monitoring the Video Bit Stream of a Serial Receiver. Route one or more incoming serial signals into the SDI inputs on the rear-panel of the instrument. WVR5200 System Integrator... - Page 22 For Monitoring the Route the incoming serial signal into one of the instrument SDI inputs. Embedded Audio Signal in a Serial Digital Video Stream Figure 5: Connecting an SD, HD, or 3 Gb/s signal with embedded audio WVR5200 System Integrator...
- Page 23 The termination must be 75 Ω and DC coupled (good return loss extends to DC). An appropriate termination for the EXT REF connector is Tektronix part number 011-0102-00; this is a 75 Ω, End-of-Line termination.
-
Page 24: Power-On And Power-Off Procedure
60 Hz, over the range of 100-240 Volts, without the need for configuration, except the power cord. (See page 2, International power cords.) The typical power draw is 22 Watts. Refer to the WVR5200 Specifications and Performance Verification Technical Reference on the Product Documentation CD for additional information on power and environmental requirements. -
Page 25: Network Operation
Ethernet Connection Connect the instrument to your network using an Ethernet cable. You can connect it directly to the instrument or through a HUB, as shown below. Figure 8: Connecting Ethernet WVR5200 System Integrator... - Page 26 9. Repeat steps 7 and 8 for the Subnet Mask and the Gateway Address. 10. If desired, select Instrument Name and then press the right arrow button to assign the instrument a network name. 11. Press the CONFIG button to close the configuration menu. WVR5200 System Integrator...
- Page 27 The SNMP commands are contained in a MIB (Management Information Base). Refer to the WFM Series Waveform Monitors and WVR Series Waveform Rasterizers Management Information Base Technical Reference (Tektronix part number 077-0261-XX) for information about using the MIB to control the instrument.
- Page 28 For example, the IP address 124.161.038.092 should be entered as follows: 124.161.38.92 7. The Web browser will display the remote interface for the instrument. To make a selection, click the desired link. WVR5200 System Integrator...
