Getting acquainted with your instrument
20
When multiple inputs are being monitored, the status bar shows each signal type,
any alarms associated with either of the signals, and other information. (See
Figure 8.)

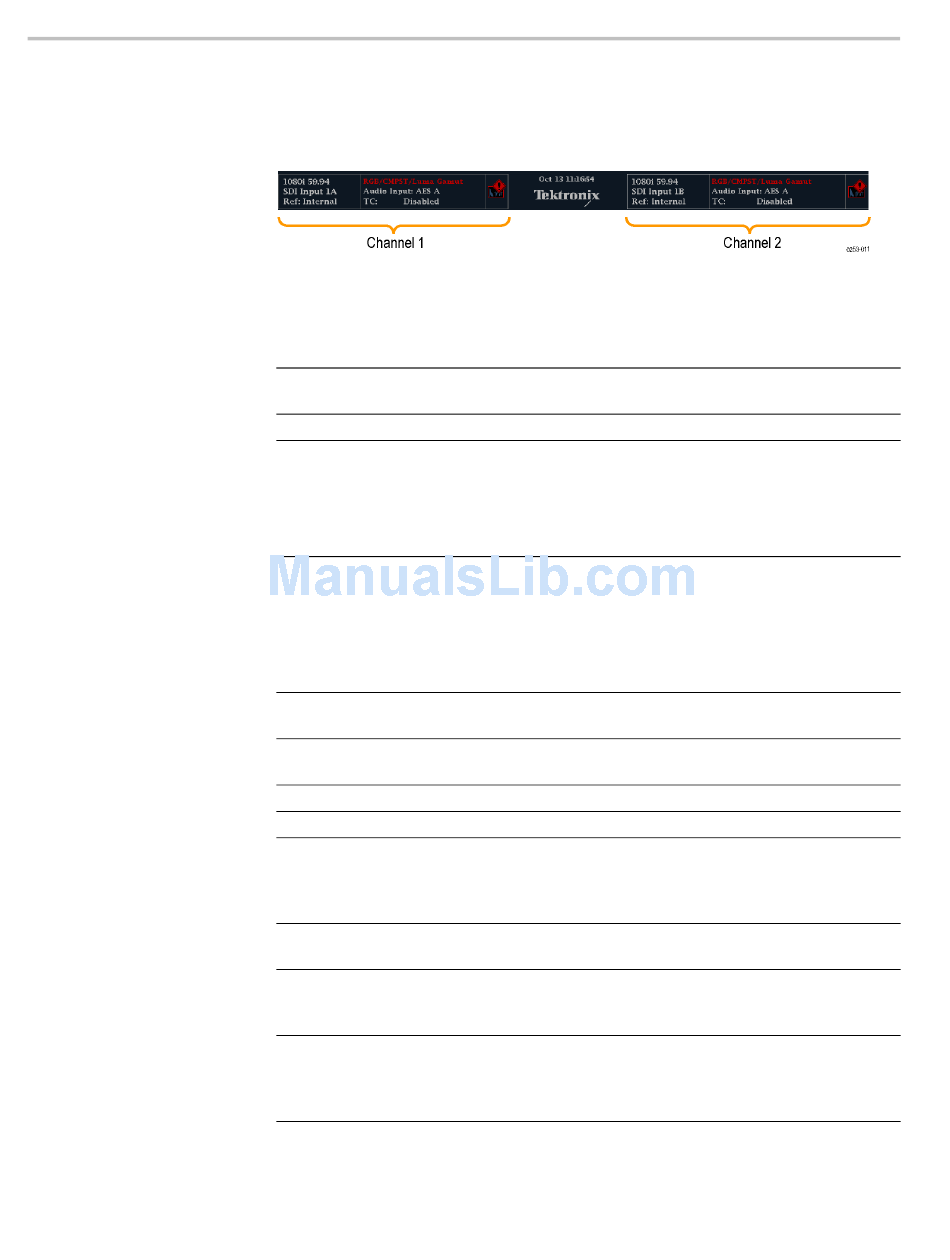

Figure 8: Status bar in simultaneous input mode

Status display
element Description
Input Format Text indicating the format of the signal on the selected input or whether
signal is missing or unlocked.
EDH Error A one-line area that is visible if EDH errors are present.
RGB Gamut Error A one-line area that is visible if RGB gamut errors are present.
NOTE.
the same line in the display, if both RGB and Composite Gamut errors
are present at the same time, the message "RGB and Cmpst Gamut"
will appear.
Composite Gamut A one-line area that is visible if Composite gamut (Arrowhead) errors
Error are present.
NOTE.
the same line in the display, if both RGB and Composite Gamut errors
are present at the same time, the message "RGB and Cmpst Gamut"
will appear.
A one-line area that is visible if Luma errors are present.
Luma Gamut
Errors
Alarm/Error An icon visible when alarms of types other than those in the four
Indicator readouts just listed occur.
Date and Time Readout of the date and time (set in CONFIG > Utilities).
Instrument Name Name assigned to the instrument in the CONFIG > Utilities menu.
Audio Status An up to 32-character string indicating the selected audio input or the
embedded audio channel status, when embedded audio is the selected
input. In the latter case, each character shows the status of a specific
channel: – for not present and p for present.
Timecode A readout showing the selected time-code value.
Readout
Reference Source Text indicating the source of the current reference. Possible references
are: Ext., Internal. Also indicates format and whether the reference is
missing or unlocked.
Current Input Text indicating the selected input. Some possible inputs are: SDI 1A,
SDI 2A, SDI 1B, SDI 2B, Cmpst 2A, and Cmpst 2B (depending on
installed options). Also indicates if the current input is not in Auto mode
or is unlocked.
Because RGB and Composite Gamut messages appear on
Because RGB and Composite Gamut messages appear on
