Elements of the Gamut
display
GAMUT pop-up menu
WVR8200 and WVR8300 User Manual

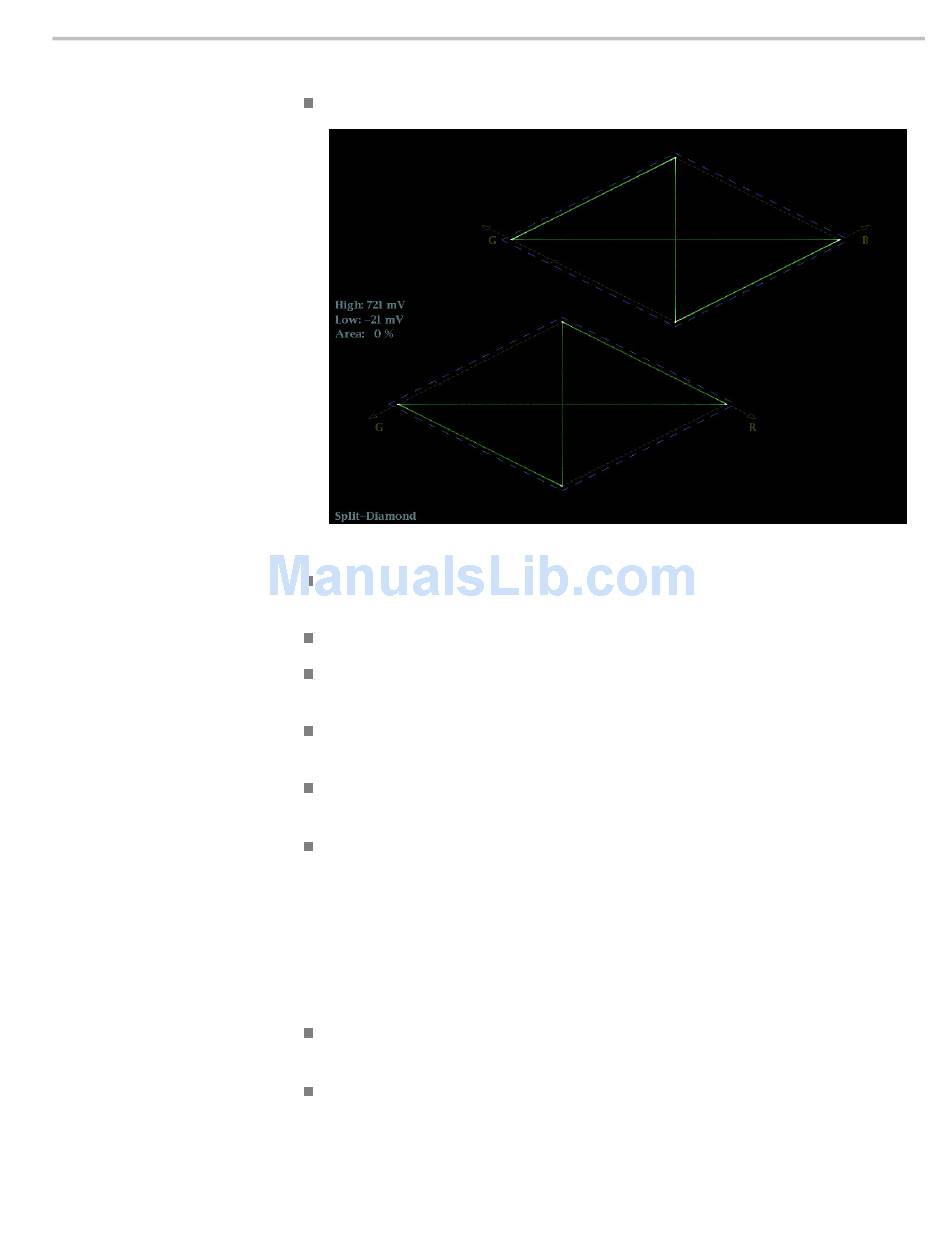

Split Diamond: provides a reliable method of detecting invalid colors
High threshold: Shows the currently specified high threshold (Diamond
High or Arrowhead Max).
Low threshold: Shows the currently specified low threshold (Diamond Low).
Gamut display type: Shows the selected Gamut display type - Diamond,
Split Diamond, Spearhead, or Arrowhead.
Threshold indicators: Indicates the threshold settings using blue dashed
lines.
Luma Minimum: Shows the currently specified minimum luma threshold
(in the Arrowhead display).
Luma Maximum: Shows the currently specified maximum luma threshold
(in the Arrowhead display).
The GAMUT pop-up menu allows you to select the type of gamut display shown
in the active tile and to turn on Multi-Input display mode. To change the display
type in the GAMUT display, use the pop-up menu to select from the following
displays:
Diamond shows Gamut violations of the SDI input if translated to RGB
color space.
Split Diamond offsets the two halves of the Diamond to allow you to better
see negative RGB Gamut errors.
