Incoming inspection

Basic turn on and self test

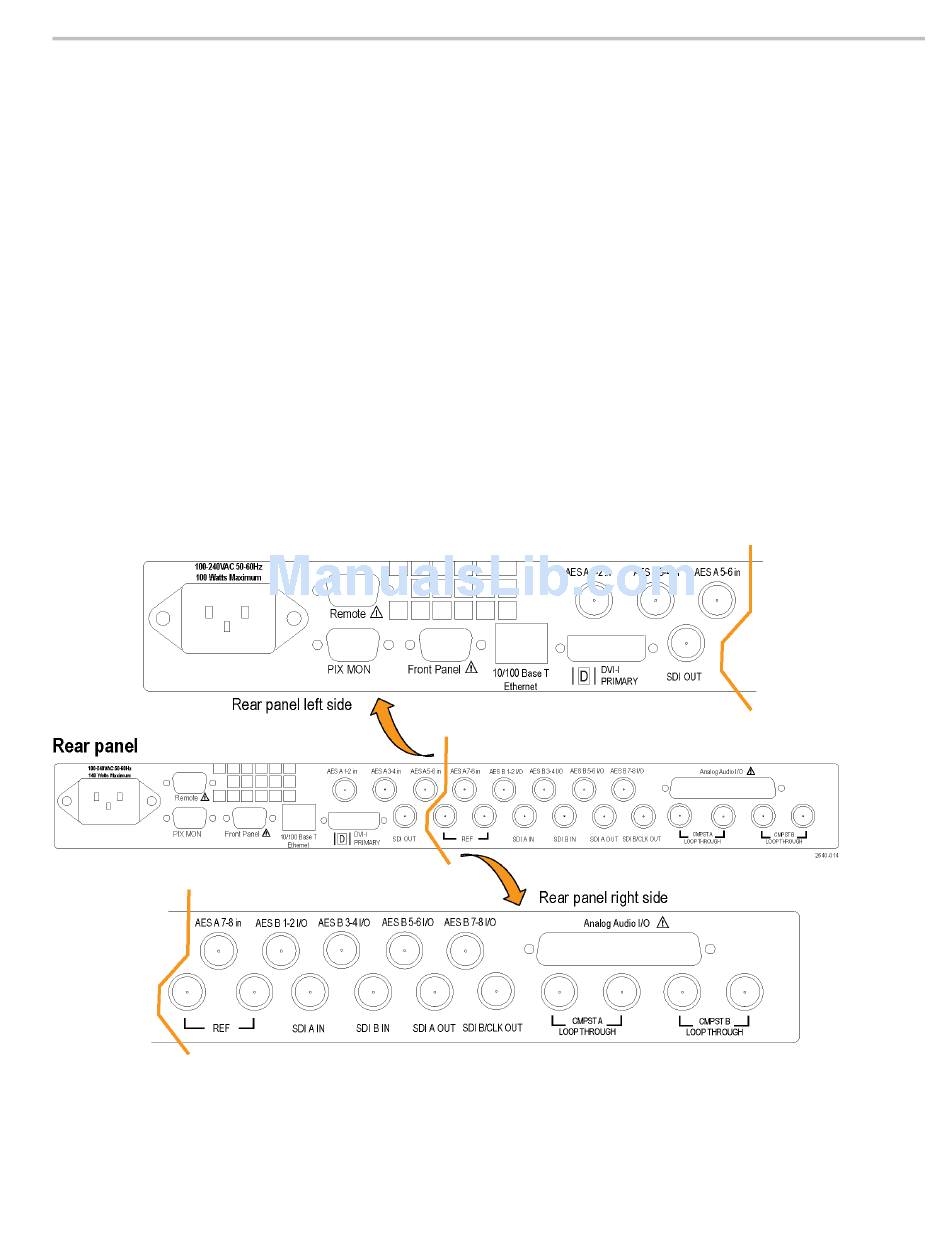

Figure 2: Rear panel

WVR8200 and WVR8300 User Manual
The incoming inspection procedures are optional procedures to check the
functionality of your instrument. These procedures require no equipment other
than an external monitor or display. For a more robust inspection, see the
performance verification procedures in the WVR8200 and WVR8300 Specifications
and Performance Verification Technical Reference that is included on the Product
Documentation CD that shipped with your instrument.
The following test can performed with or without the external monitor. Using the
external monitor allows you to check that the DVI connector on the rear panel is
working properly.
1. Connect a monitor to the EXT DISPLAY connector on the rear panel of the
instrument. This connector is a DVI-I connector with socket contacts. The
output supports DVI monitors directly and analog PC (RGB) monitors using a
DVI-I to VGA adapter.
2. Connect the AC line cord to the rear of the instrument and to a 100 to
240 VAC source.
