Display information
Selecting audio input for
embedded 16-channel
audio
100
1. Select a tile.
2. Press and hold the Audio button to open the Audio display in a tile and pop
up the Audio menu.
3. Use the arrow keys and SEL button to make selections in the steps that follow.
4. Select Audio Input and then select the Emb. 16-Ch option.

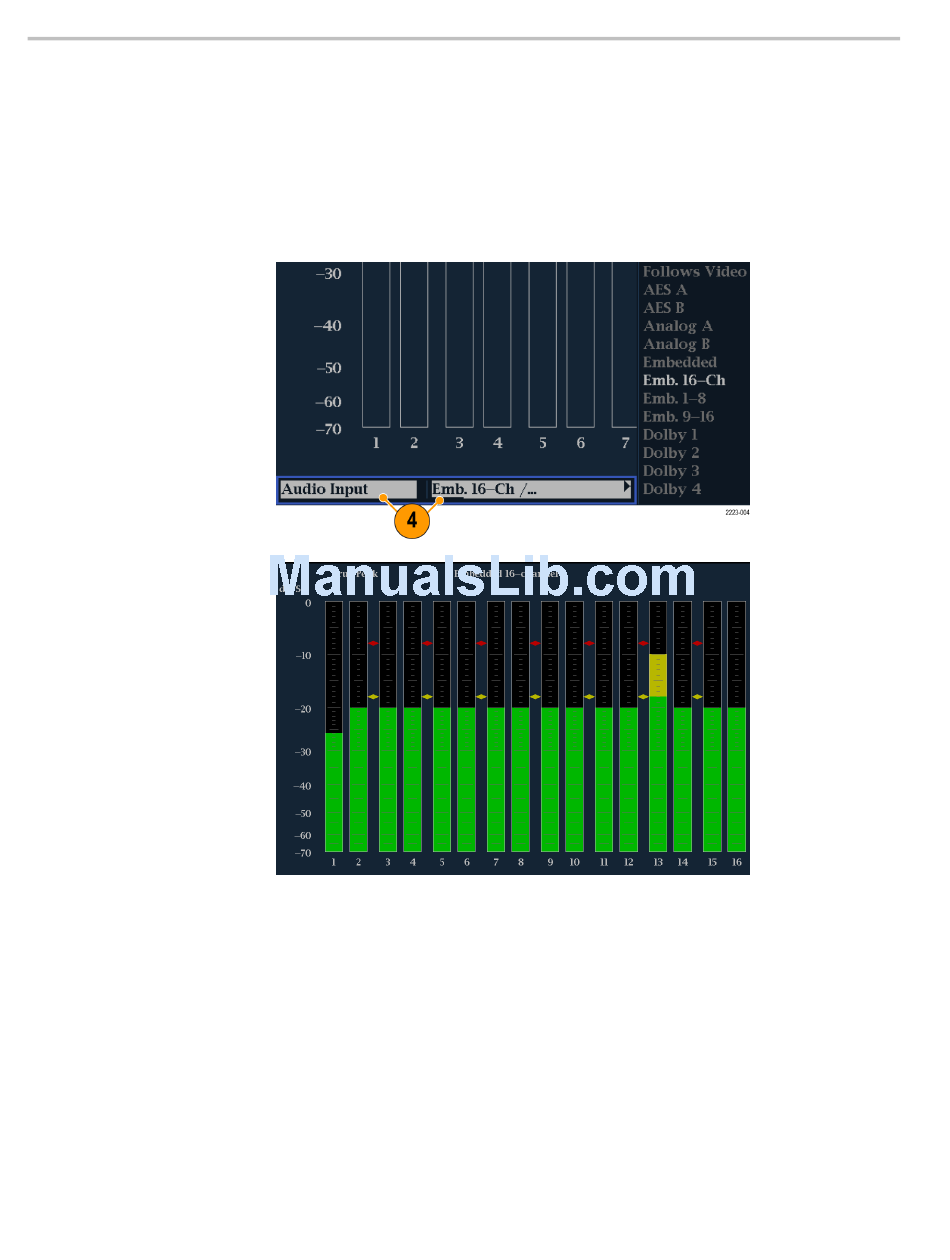

Figure 58: 16-Channel audio bars display
WVR8200 and WVR8300 User Manual
