Configuring signal inputs
Difference Map and
red/cyan anaglyph
36
When 3D input is enabled from the Main button, you can use the Difference Map
display in the selected measurement button menu to see the difference between
left and right images. The difference map is a subtraction of the two luma video
signals L-R or R-L to produce a grayscale difference map image.
The Red/Cyan anaglyph display shows the left image in red and the right image
in cyan, with identical left and right objects shown in monochrome. This allows
you to isolate differences between objects and gauge the depth of the object
within the image.

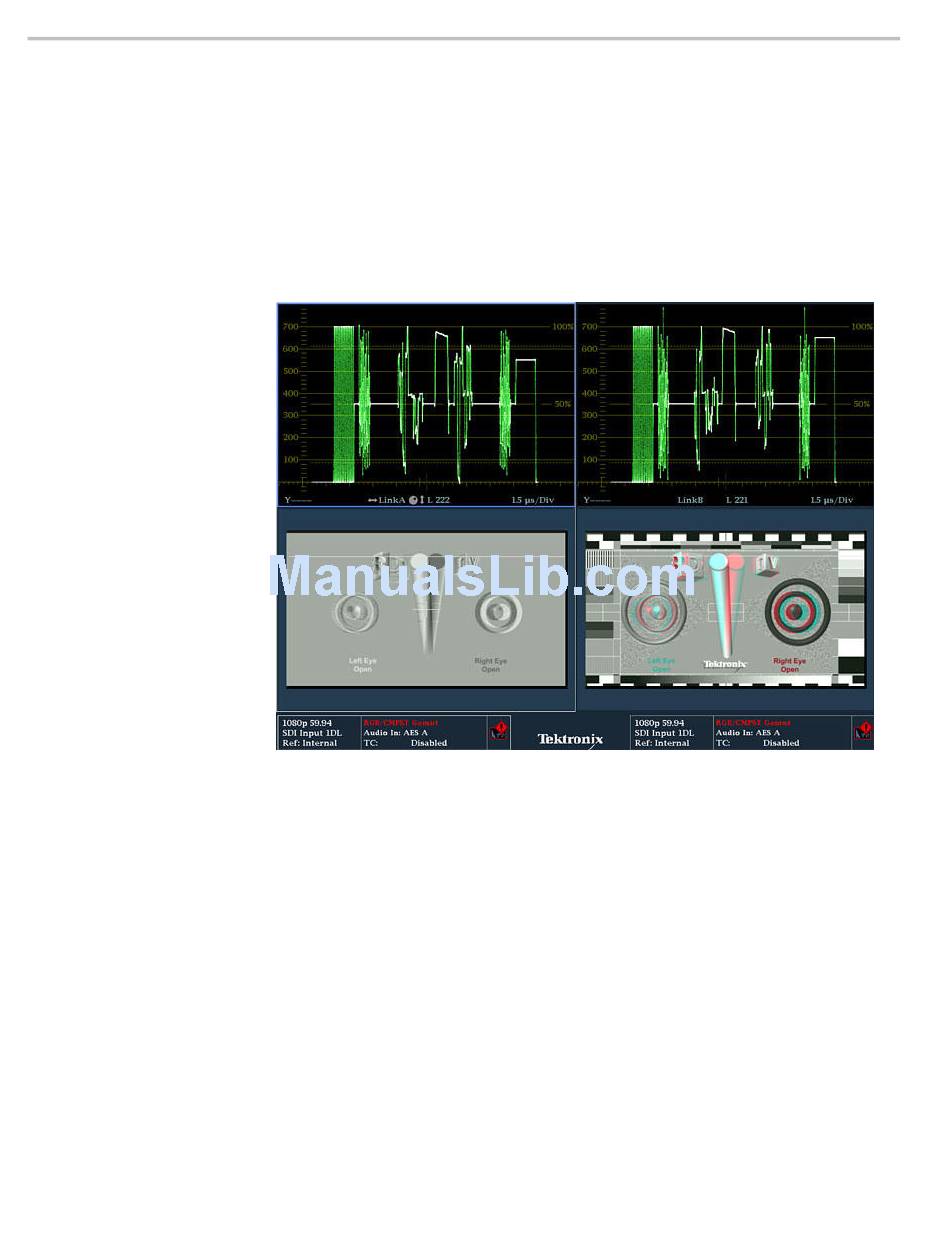

Figure 22: 3D Left and Right Eye images showing a Difference Map and Red/Cyan
Anaglyph using SIM
WVR8200 and WVR8300 User Manual
