Figure 24: 3D Left And Right Eye Images Showing Disparity Grid And Disparity Cursor Measurement Using - Tektronix WVR8200 User Manual

Configuring signal inputs
Disparity Grid and cursors
38
A Disparity Grid can be used to measure the depth of an object within an image.
The grid can be overlaid over the picture with a horizontal disparity between
1 to 15% of screen width and a vertical disparity of 50%, 25%, or 10% (user
selectable). The horizontal and vertical position controls allow the grid to be
moved around within the picture display to gauge the depth of objects within
the image.
A set of Disparity Cursors are also available for precise measurement of horizontal
disparity of an object between the Left and Right Eye images. Readout is given
of the pixel difference between the cursors and the percentage of disparity of
an object.

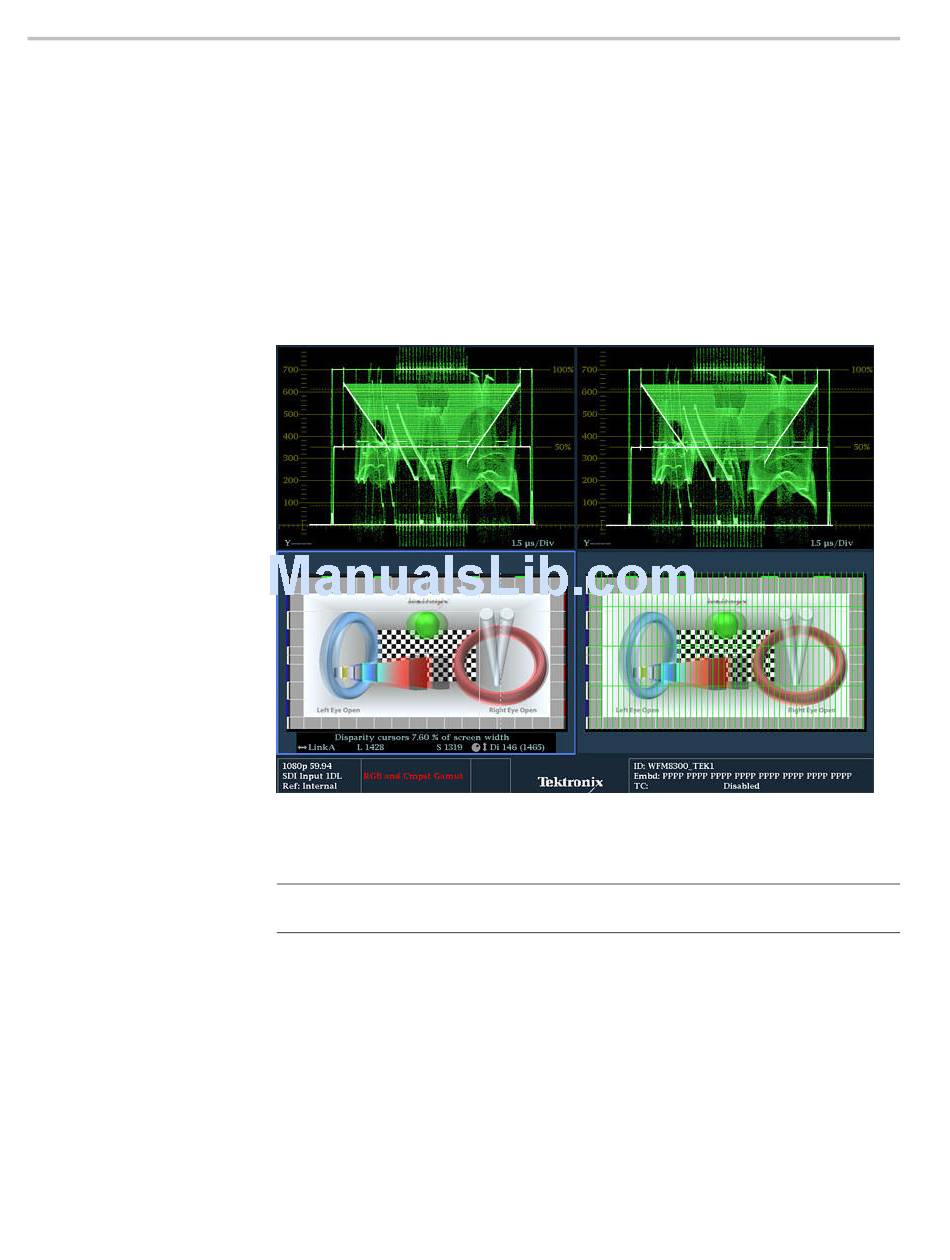

Figure 24: 3D Left and Right Eye images showing Disparity Grid and Disparity
Cursor measurement using SIM
NOTE.
Additional 3D settings can be found in the CONFIG button menu under
Graticules/Readouts and Display.
