Audio Session display
WVR8200 and WVR8300 User Manual
The Audio Session display contains several performance parameters that you can
display to see an overview of the audio input signal. This instrument maintains a
running audio status session. (See Figure 50.)

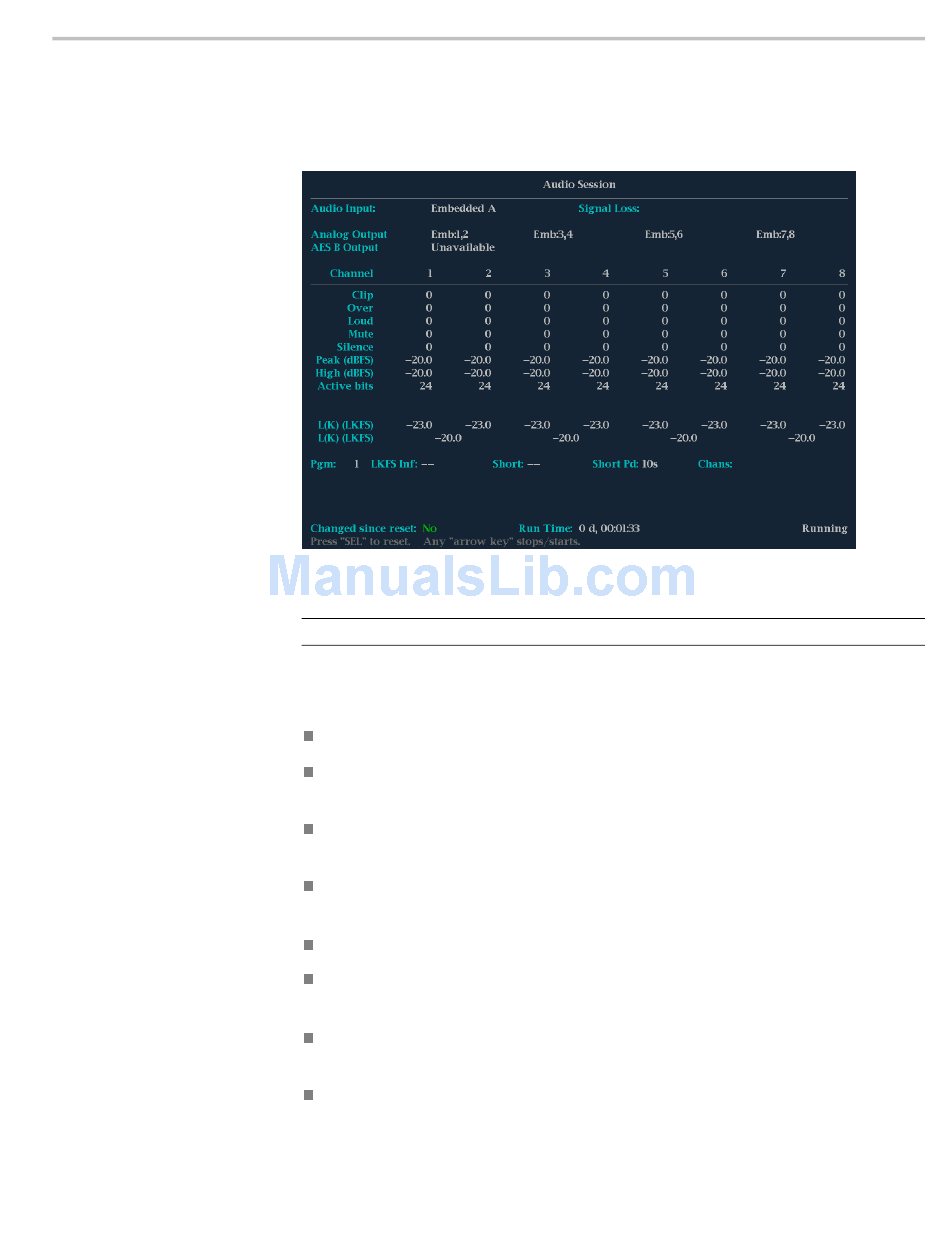

Figure 49: Audio Session display

NOTE.
Audio features require Option AD or DPE.
Elements of the Audio Session display.
Audio Input: Shows the selected input source.
Signal Loss: Indicates the level meter bars (1-8) that have triggered a signal
loss alarm. Dashes indicate no alarm was triggered.
Analog Output: Identifies which level meter bar pair is mapped to which
Analog Output.
AES B Output: Identifies which level meter bar pair is mapped to which
AES B Output, if enabled.
Data Collect: Indicates the status of error collection as Running or Stopped.
Channel: This row aligns the channel number with the status readouts that
appear below the row.
Clip: The number of CLIPs detected during the session. (Only displayed for
digital audio feeds.)
Over: The number of OVERs detected during the session. (Only displayed
for digital audio feeds.)
