Gamut display
WVR8200 and WVR8300 User Manual
Pressing the GAMUT button calls one of the Gamut displays. The Gamut display
provides four proprietary Tektronix display types to enable you to check the
gamut of an SDI signal. Set the thresholds for gamut displays from the CONFIG
menu. The available Gamut displays are:

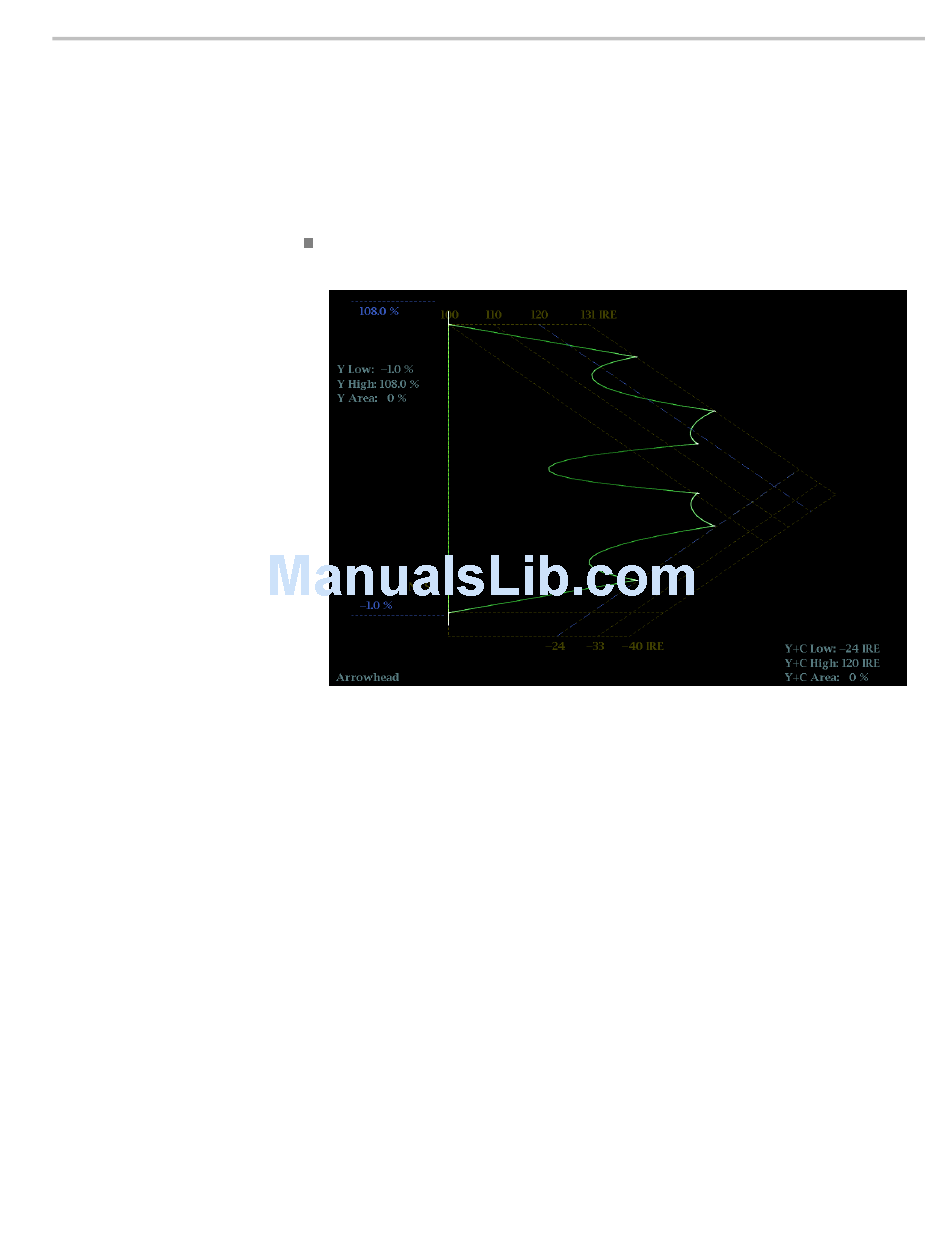

Arrowhead: provides NTSC and PAL composite gamut information directly
from the SDI signal
Display information
49
