Getting started

Network installation

Connecting directly to a
8
See the WVR8200 and WVR8300 Safety and Installation Instructions that shipped
with your instrument for basic installation instructions.
If you are installing this instrument into a system, see the WVR8200 and WVR8300
System Integration Technical Reference for detailed installation instructions.
Once your instrument is physically installed, you might want to connect it directly
to a PC and a network. The following information can help you do that.
The following procedure will help you connect your instrument to a PC:
PC
1. Connect the instrument directly to a PC with an Ethernet cable. The instrument
has an auto-crossover feature. You can also use a HUB. (See Figure 1.)
2. Set up the instrument as described in the following procedures, choosing
Manual IP mode to set the IP address manually. Be sure to set an address that
is compatible with the setting of your PC.
3. If you are using an SNMP setup, use the SNMP setup procedure.

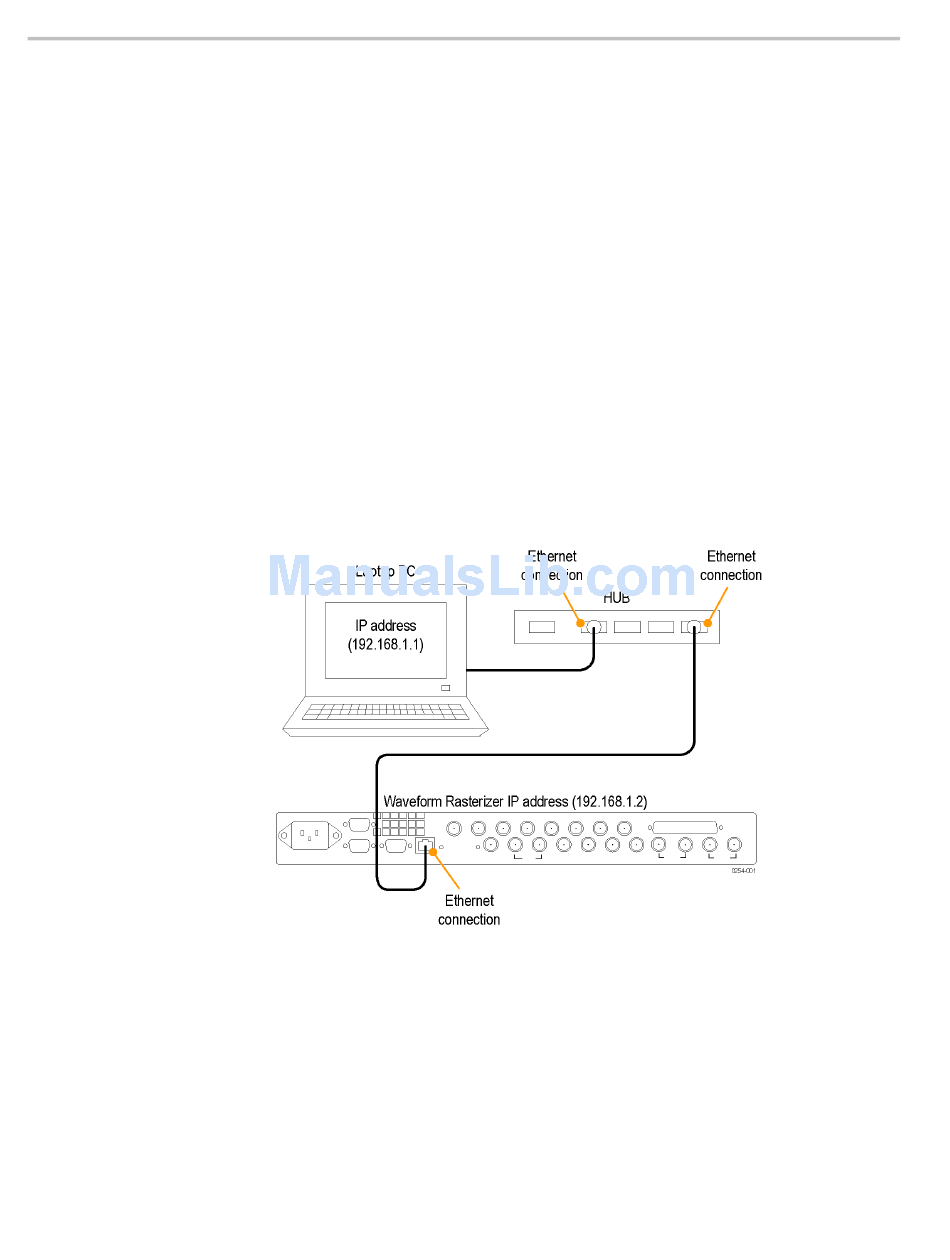

Figure 1: Connecting the instrument to a PC

WVR8200 and WVR8300 User Manual
