UHDTV1/4K signals

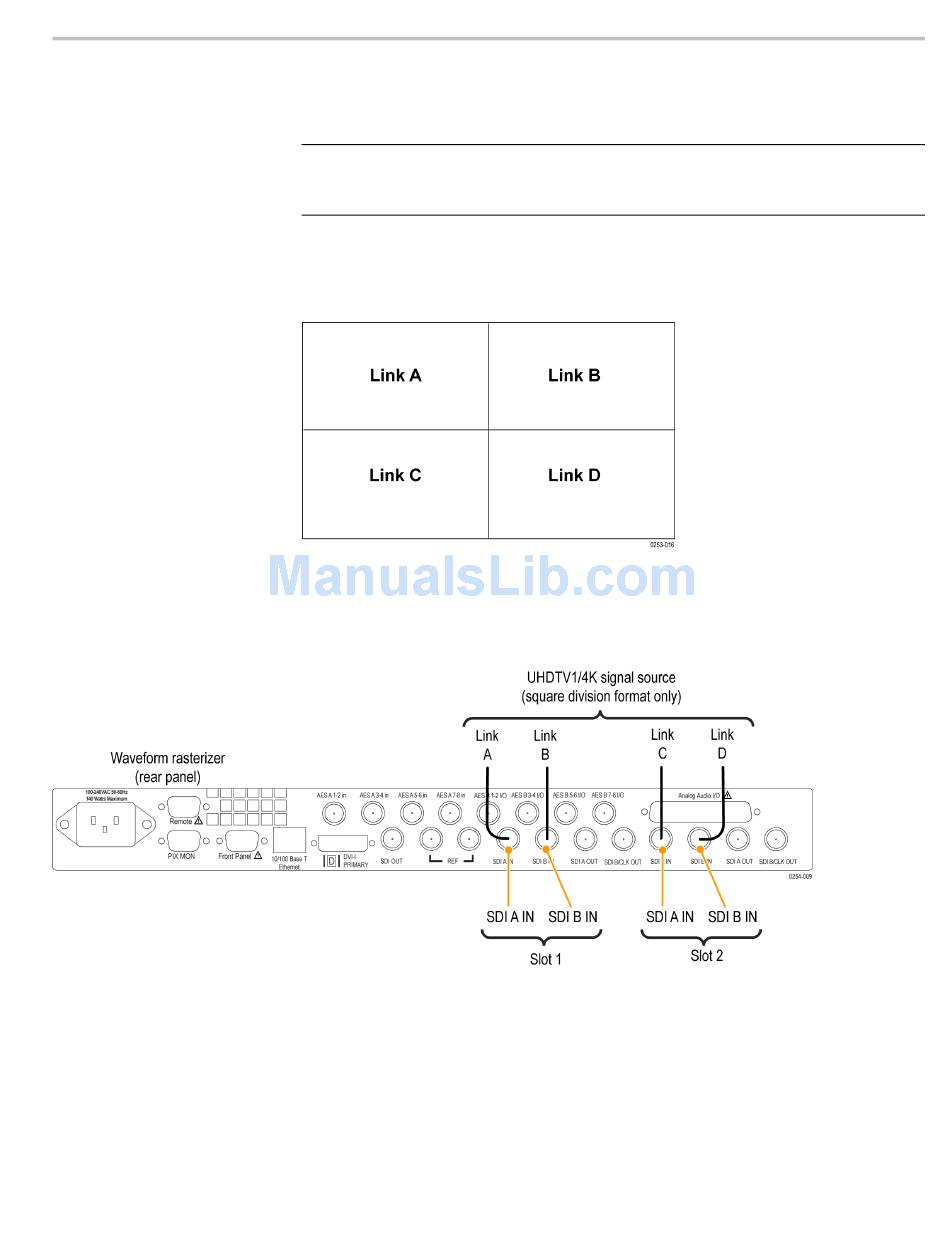

Figure 10: UHDTV1/4K signal connections (Options 4K, 3G, 2SDI)

WVR8200 and WVR8300 User Manual
NOTE.
The UHDTV1/4K signal must be in square division format and each
quadrant must connect to the SDI inputs as shown below. The instrument must
have Options 4K, 3G, and 2SDI installed.
In square division signals, the four links of the signal combine to display the
video picture as shown below.
Figure 9: Mapping of the four links that make up a UHDTV1/4K format signal
Connect each link of the UHDTV1/4K signal to each of the SDI inputs as shown
below. Use the Picture display to verify proper signal connections.
Configuring signal inputs
23
