Getting started

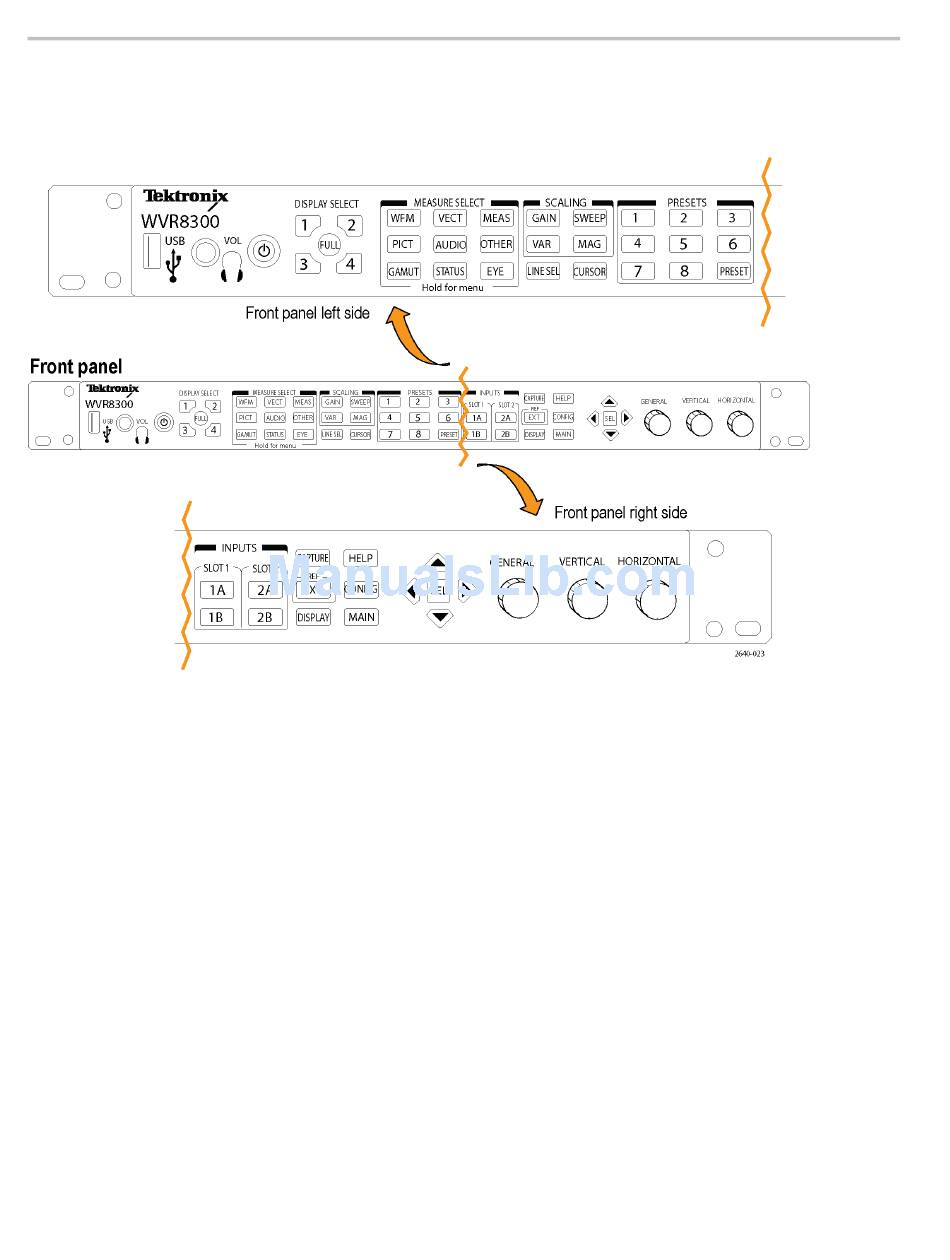

Figure 3: Front panel

Fan test
12
3. Press the Power button on the front panel to turn the instrument on. It is
located on the bottom left corner of the front panel.
4. After about 30 seconds, the power-on diagnostic page should appear on the
screen.
5. Verify that all self tests pass. Any failures are shown in red. The results of
the power-on diagnostics are erased from the screen, but you can view the
results by selecting CONFIG > Utilities > View Diagnostics Log > SEL or
by viewing them on the instrument Web page.
6. After the diagnostics are finished, the instrument state is restored. When the
progress indicator in the status bar is finished, the instrument has finished
initializing.
7. Record Pass or Fail for the POST (Power On Self Test) in the test record.
8. If it is still open, exit the Diagnostics Log.
You should be able to hear the fans and feel air coming out of the back of the
instrument. At low temperatures, the fans will turn slowly and be very quiet.
