Pop-up menus
To set display parameters
WVR8200 and WVR8300 User Manual
All pop-up menus are displayed by pressing and holding the specified display
button for three seconds. To hide a pop-up menu, press the specified button again.
Pop-up menus appear in the active tile and, in general, control only settings
specific that tile. A pop-up menu will not appear if it is not appropriate for the
current instrument setting (for example, trying to display the Gamut menu when
viewing a composite input signal).
Use the pop-up menus to set up the measurements that you display.
1. Select a tile by pressing one of the numbered DISPLAY SELECT buttons.

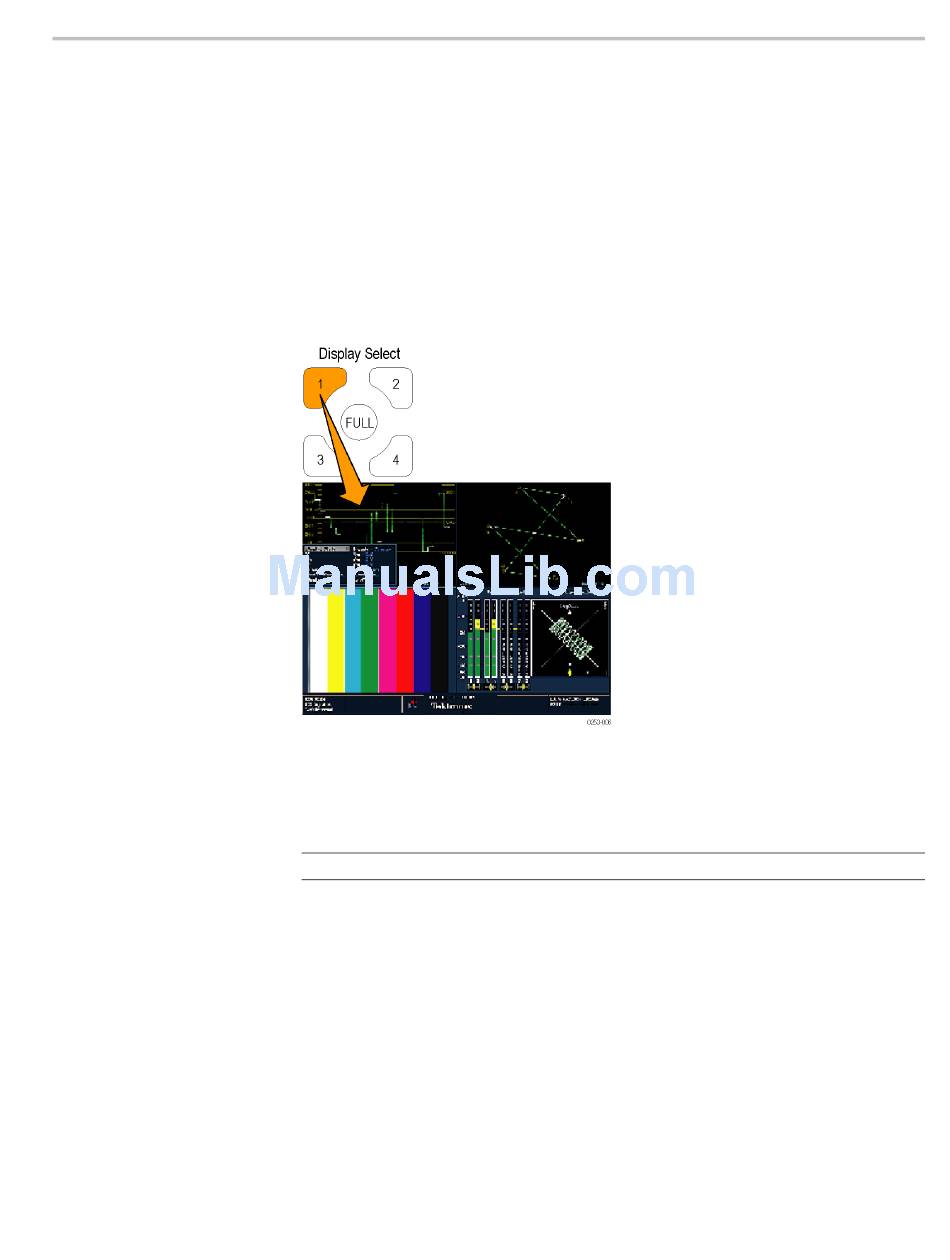

Figure 27: Using the Display Select buttons

2. Press and hold the chosen display button and the display and the pop-up menu
for that display appears.
NOTE. The selections in a pop-up menu can change depending on settings.
3. Use the right and left keys to traverse between menu panels. The instrument
surrounds the panel selected with a blue border. (See Figure 28.)
4. Use the up and down arrow keys to select parameters in a menu. (See
Figure 28.)
Display information
43
