Configuring signal inputs
SyncVu™ and SIM SIM is ideal for by simultaneously monitoring the Left Eye signal and the Right
Eye signal. You can use SyncVu™ in conjunction with SIM when input A is used
monitoring of 3D
for the Left Eye and input B is used for the Right Eye. When SyncVu is enabled,
the Left and Right tile displays are synchronized, so that if a Picture display is
selected for Tile 1, Tile 2 will automatically show a Picture display in exactly
the same mode as Tile 1. This enables you to quickly configure the instrument
identically for Left and Right Eye 3D monitoring.
NOTE.
SIM and 3D measurements and displays are included with Option 3D for
the WFM8200. The WFM8300 comes standard with SIM and 3D capabilities.

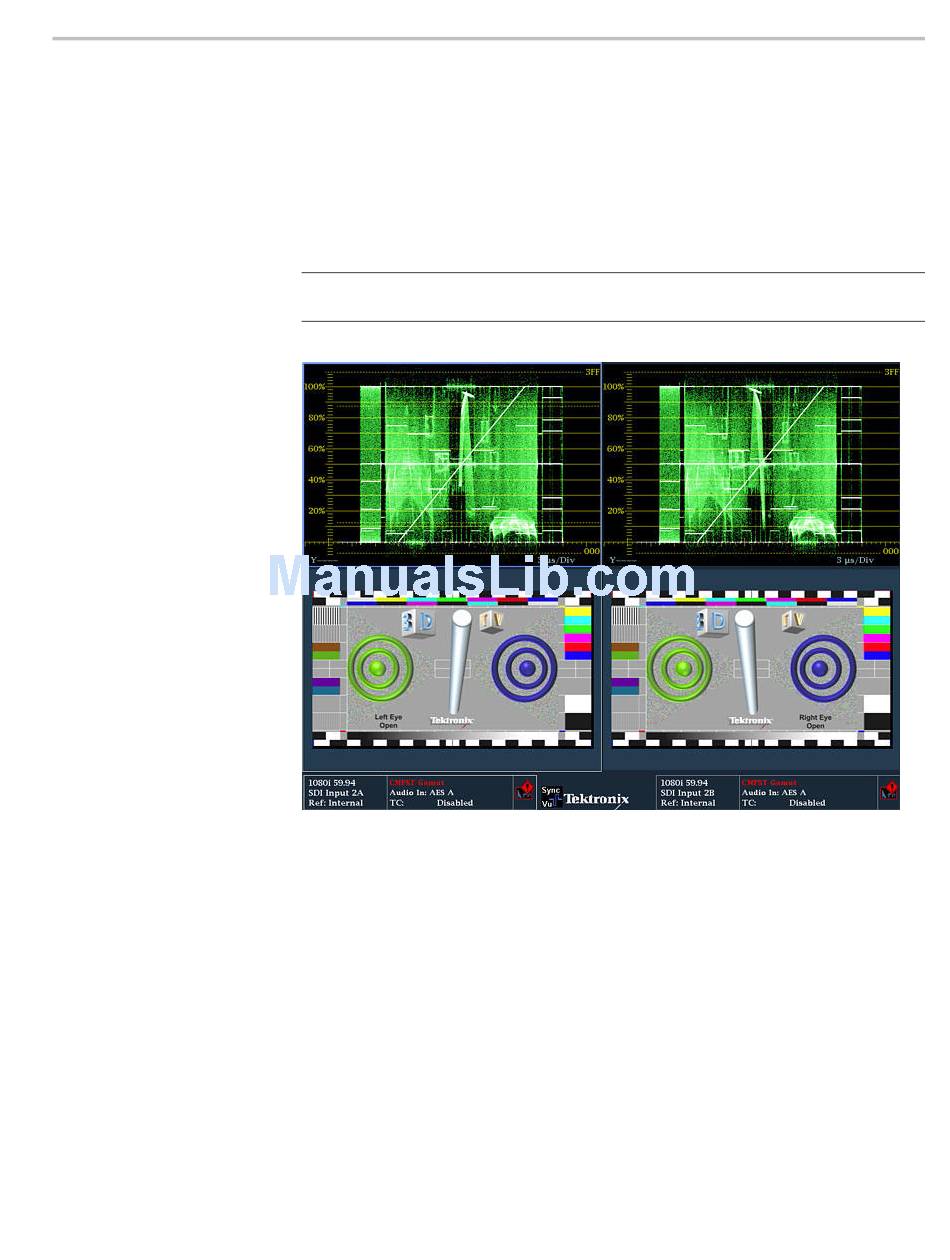

Figure 21: Simultaneous 3D display of Left Eye and Right Eye signals

WVR8200 and WVR8300 User Manual 35
