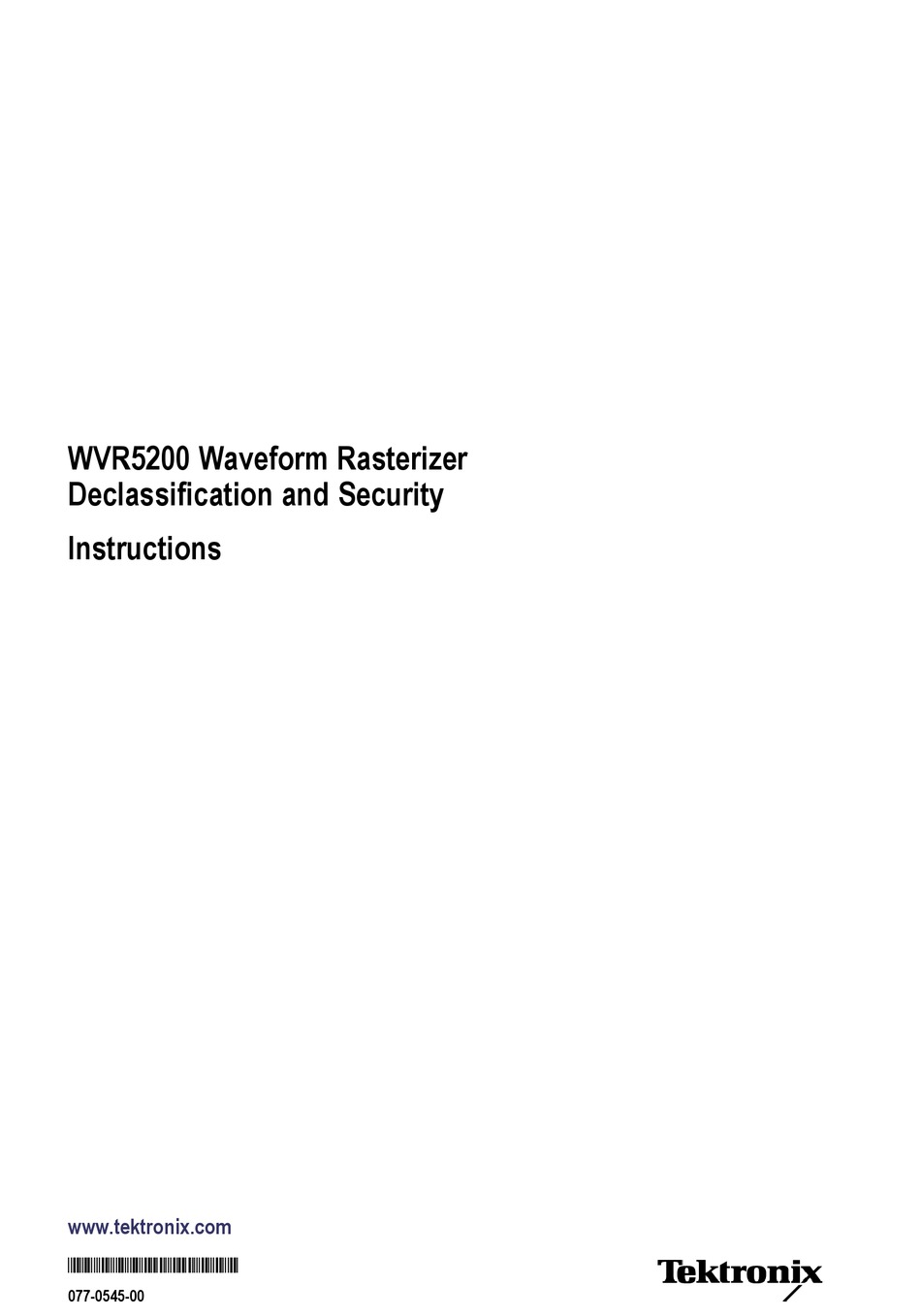

- Page 1 WVR5200 Waveform Rasterizer Declassification and Security Instructions www.tektronix.com *P077054500* 077-0545-00...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 3 Table of Contents Preface ......................Clear and Sanitize Procedures..................Memory Devices....................Data Export Devices................... Troubleshooting..................... How to Clear or Sanitize a Nonfunctional Instrument............. How to Recover from Clearing or Removing the Instrument’s Memory ........ WVR5200 Declassification and Security...
- Page 4 Table of Contents WVR5200 Declassification and Security...
- Page 5 The instructions also tell how to declassify an instrument that is not functioning. Products The following Tektronix product is covered by this document: WVR5200 (Options 3G, GEN, AUD, CAM, PROD, LOUD, and DATA). Related Documents The following table lists the documentation that is available for the product and shows where you can find it: in a printed manual, on the product documentation...
- Page 6 Scrub. This is equivalent to sanitize. User-modifiable. The user can write to the memory device during normal instrument operation, using the instrument interface or remote control. Volatile memory. Data is lost when the instrument is powered off. WVR5200 Declassification and Security...
- Page 7 20 seconds DDR2 DSY 64 MB X 32 Frame Buffer #1 Written by FPGA board, U14, None Remove the power processor source from the for DSY FPGA system instrument for at least 20 seconds WVR5200 Declassification and Security...
- Page 8 3. Check each group and overwrite presets that are not empty as described in the previous step. 4. Navigate to the top level menu and select Rename Preset. Rename all named groups and presets with the label “Default”. WVR5200 Declassification and Security...
- Page 9 3. Navigate to IP Address. Then press > to enter the edit mode. Enter “000.000.000.000” for the IP address. 4. Repeat Step 3 for the Subnet Mask, Gateway Address, and SNMP Trap Address 1 through SNMP Trap Address 4. 5. Press the CONFIG button to exit the configuration menu. WVR5200 Declassification and Security...
- Page 10 4. Press the CONFIG button to exit the configuration menu. Enable Ethernet and SNMP To enable Ethernet and SNMP access, use the same procedures you would use to disable these devices, but select On to enable each device. Access Procedure WVR5200 Declassification and Security...
-
Page 11: Troubleshooting
How to Clear or Sanitize a Nonfunctional Instrument To sanitize a nonfunctional instrument, remove the CPU board and return the instrument to Tektronix for installation of a new CPU board. How to Recover from Clearing or Removing the Instrument’s Memory Reload the system software per the loading instructions.
