Status bar icons
Rear panel specifications
WVR8200 and WVR8300 User Manual
Display Icons
See the WVR8200 and WVR8300 Installation and Safety Instructions that
shipped with your instrument for rear panel specifications. It is also available
in electronic format on the Product Documentation CD and on the Web at
www.tektronix.com/manuals.
Getting acquainted with your instrument
Description

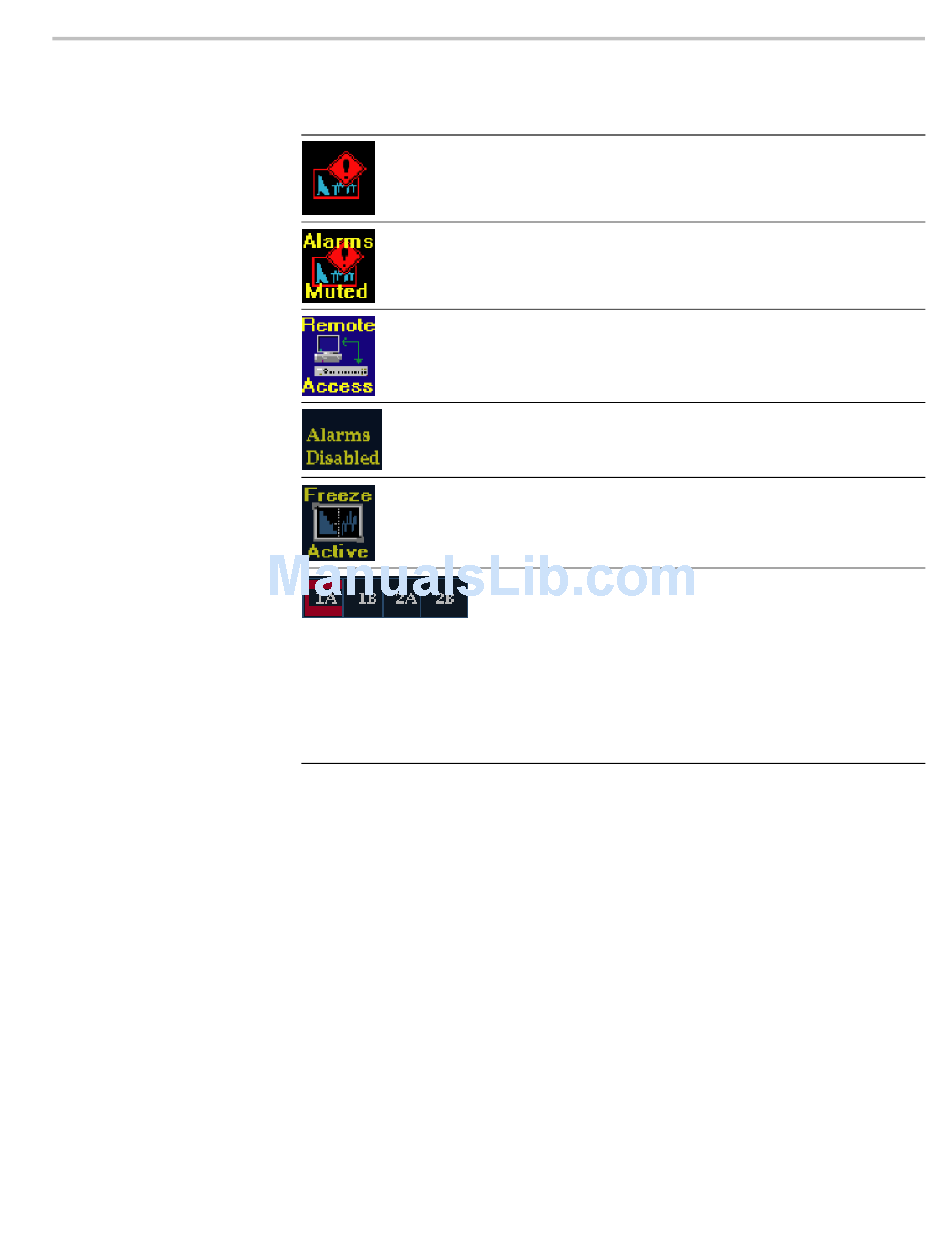

Warning - Appears when an error or an alarm that is mapped
to the user interface triggers.
Alarms Muted - Appears when the alarms are muted from the
STATUS pop-up menu.
Remote Access - Appears when the instrument is accessed
from the network. For example, when sending commands to the
instrument from the remote interface.
Alarms Disabled - This text appears in the Status Bar when
Alarms are disabled from the Configuration menu.
Freeze Active - Appears when the tiles are frozen or captured.
Camera Tally – Appears when camera tally mode is on. This
setting is accessed from the CONFIG > Utilities > Ground Closure
Mode menu. This mode used the REMOTE connector and is
used to define which input is On-Air (RED) and which input is
available to be adjusted (GREEN). When this mode is on, it is
also indicated above the Picture display of the selected input.
NOTE.
For REMOTE connector pin descriptions, see the
WVR8200 and WVR8300 Waveform Monitors Installation and
Safety Instructions.
