Signal generation

WVR8200 and WVR8300 User Manual
If this instrument has Option PHY or Option GEN installed, it can generate
SD-SDI and HD-SDI signals. With Option 3G installed, it can also generate
a 3 Gb/s test signal. (See Figure 26.)
Three types of signals can be generated in Level A and Level B:
75% bars
100% bars
Pathological
For more information about these signals, see the appropriate SMPTE standard.

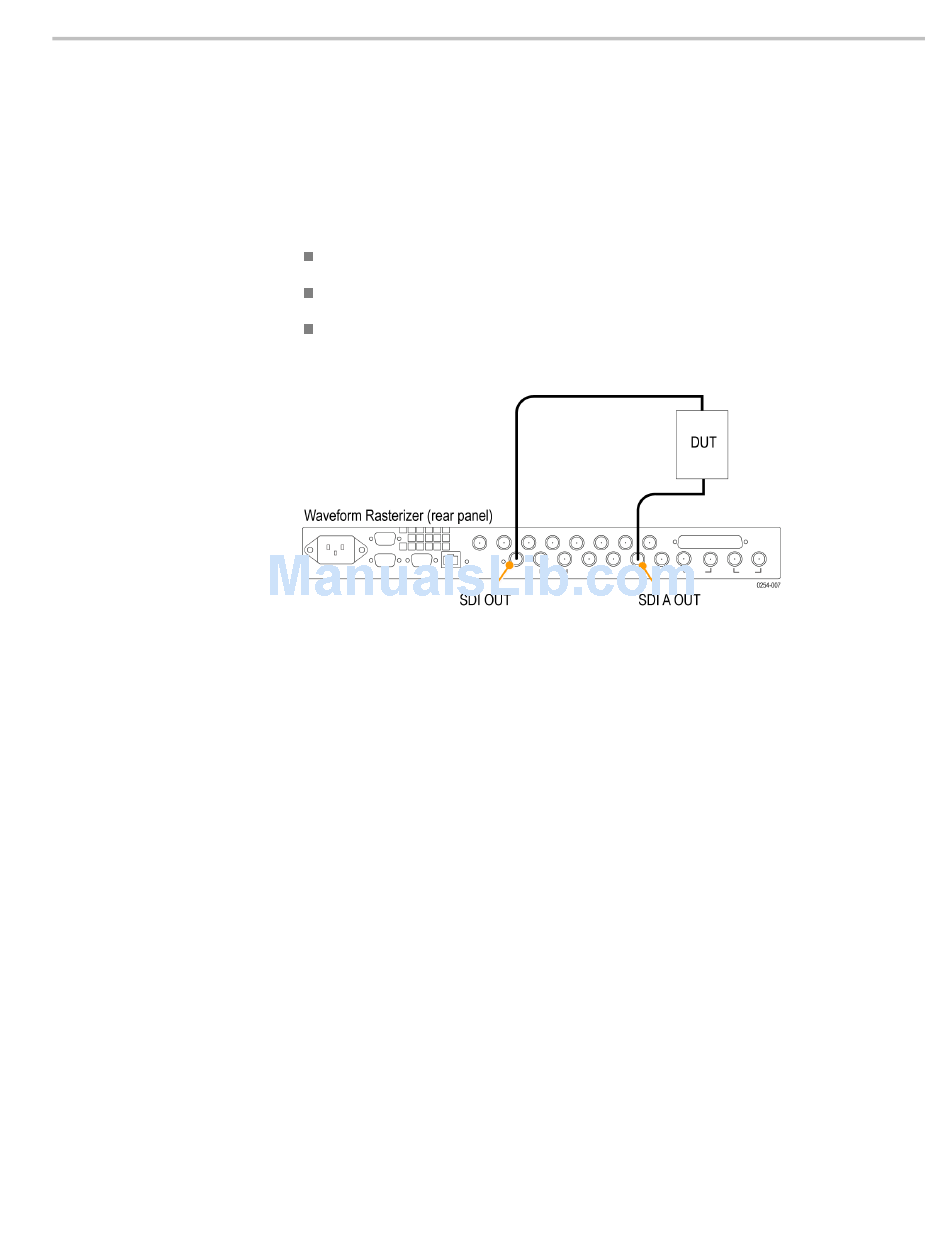

Figure 26: Signal generation connection

After you have connected the signals, press the CONFIG button on the front panel
of the instrument and navigate to the Outputs submenu. From this submenu,
select the test signal pattern, level, and format you want to generate.
Configuring signal inputs
41
