Checking gamut
140
Set the thresholds for gamut. (See page 138, To set up gamut checks.) After
selecting the Diamond display, compare the signal to the display to determine
out-of-gamut components. Note the following:
The intensity of a vector indicates its duration.
A momentary out-of-gamut condition appears as a faint trace. Long duration
violations show as a bright trace.
When evaluating out-of-gamut components, consider the following examples.
(See Figure 73.)
Example A:
R - Ok
G > 700 mV
B - Ok
Example B:
R - Ok
G - Ok
B > 700 mV
Example C:
R - Ok
G - Ok, 350 mV
B < 0 mV

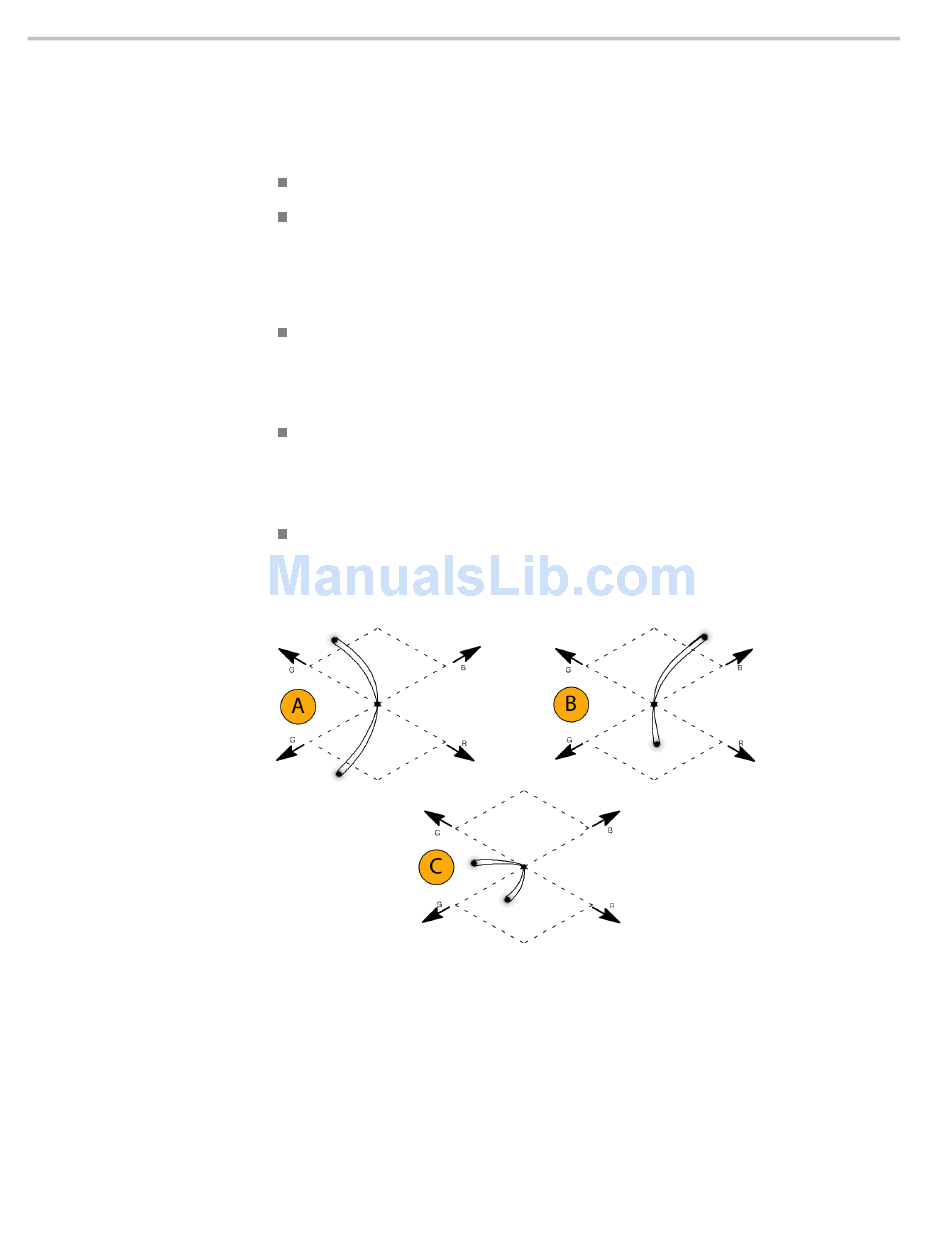

Figure 73: Out-of-gamut examples

WVR8200 and WVR8300 User Manual
