Status displays

Error Log display
WVR8200 and WVR8300 User Manual
Pressing the STATUS button calls up the Status display, which provides several
views of signal status. Status displays are text displays that show signal status.
You can view current alarms and errors (those occurring now and within the last
few seconds), a history of errors and alarms (up to 10,000 entries), video error
statistics or audio error statistics. You can display a different Status display type
in all four tiles.
View a log of errors and control the error logging settings. (See Figure 45.)

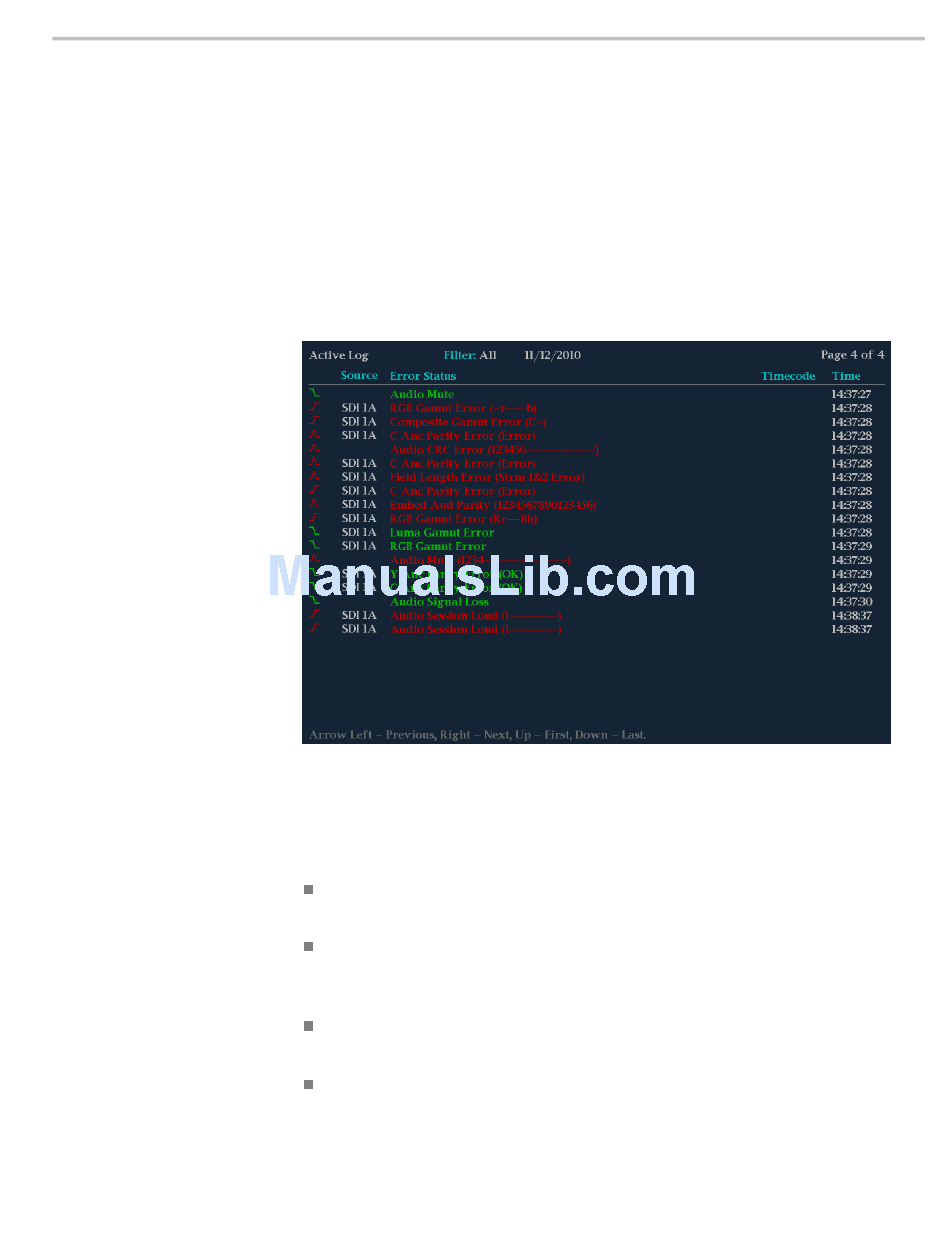

Figure 45: Error log display
Elements of the Error Log display.
Across the top of the display screen, the following items are shown:
Log Status: Shows that the currently viewed log is active (Active Log) or
that logging has stopped (Active Log (Stopped)).
Filter: Shows the currently selected error filter. All means that all errors
from all inputs and channels are being shown. You can also select to view
errors by input or channel.
Date: Shows the date, according to the internal clock, that the error occurred.
The date is displayed as month/day/year.
Page: Shows which page you are viewing out of the total number of pages in
the log.
