Dolby Audio Status display
WVR8200 and WVR8300 User Manual
When your instrument is equipped with Option DPE, you can view Dolby
metadata for the currently monitored audio source (AES and embedded inputs),
Dolby Timing, and Dolby VANC data from the Dolby Audio Status display.
Select to view the metadata from the audio data stream or from the VANC. (See
Figure 55.)

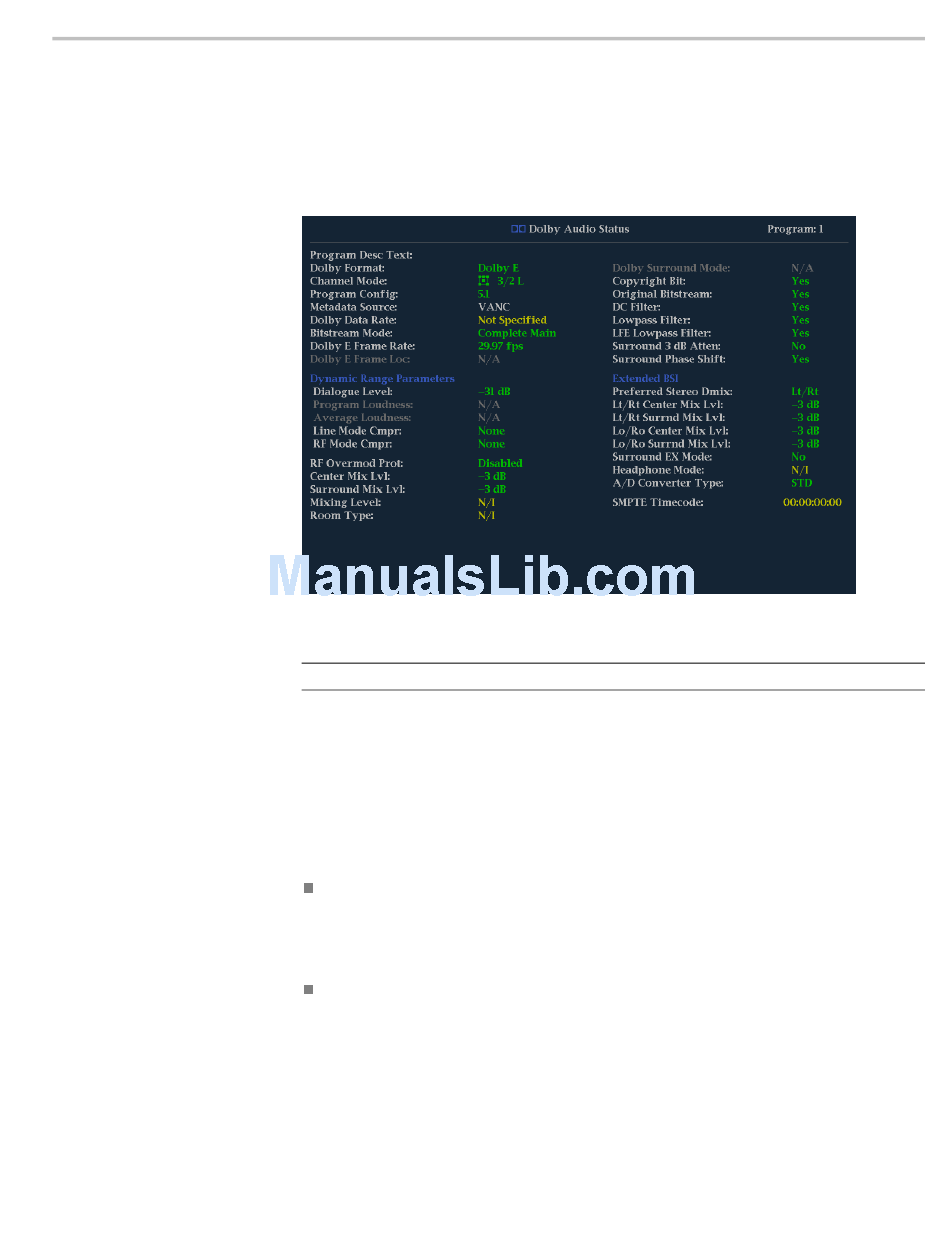

Figure 55: Dolby Audio Status display

NOTE.
Requires Option DPE.
Elements of the Dolby Audio Status display. The following is a list of some of
the elements that show on the Dolby Status display. Some elements apply only
to Dolby type E. If Dolby type D is detected, these elements display with their
names grayed out and with a value of N/A. For a complete list of the elements that
might appear, see the instrument online help: when the Dolby Status display is
active in a tile, press the HELP button.
Program Description Text: A 32-character ASCII text field used by the
program author to describe the audio program; for example, the name of the
program (Movie Channel Promo), the program source (Football Main Feed),
or the program language (Danish).
Dolby Format: Indicates the Dolby Format. This indicator is also tied to the
Dolby Format Error/Alarm: if the Alarm is asserted, the Dolby Format is
displayed in red.
