Getting acquainted with your instrument
Layout and usage
16

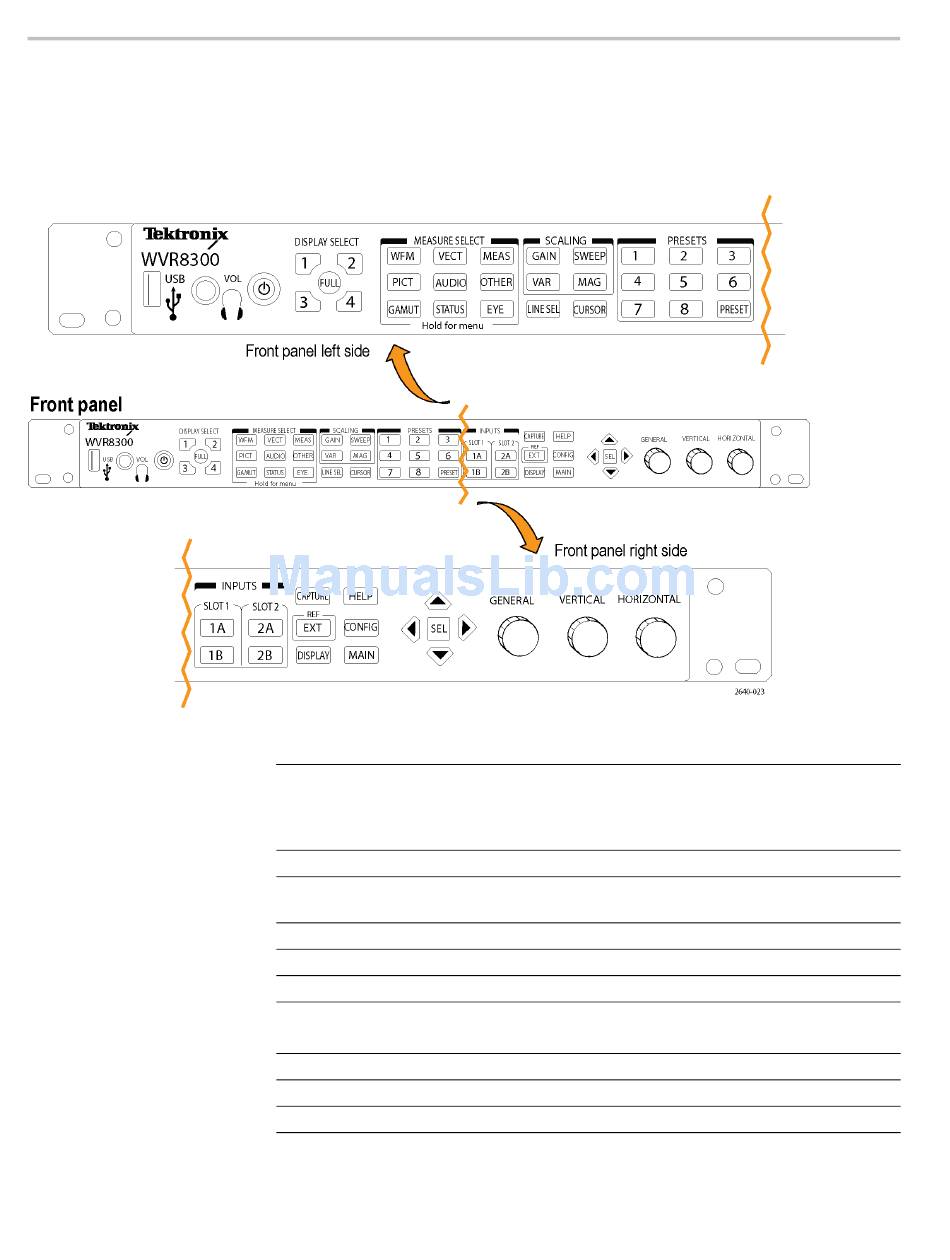

The primary front panel elements shown below are described in the table that
follows. The Usage Procedure column in the table refers you to a procedure in
this manual that explains how to use the element. If there is no page reference, the
information given explains the basic function of the element.
Control Element or Group
Display selection buttons
Measurement buttons
Gain and Sweep buttons
Preset buttons
Input Selection buttons
Line Select button
EXT REF button
Capture button
Help button
Cursor button
Usage Procedures
Press the numbered buttons to choose which
of the four tiles to activate. You can also
view a tile full-screen by pressing the FULL
button.
(See page 42, To select a display.)
(See page 105, Gain, sweep, and
magnification.)
(See page 111, Presets.)
(See page 22, Configuring signal inputs.)
(See page 109, Line Select.)
(See page 40, Reference loop.)
(See page 185, To time a studio.)
(See page 108, Capture.)
(See page 18, To navigate online help.)
(See page 107, Cursors.)
