Configuring signal inputs
Video Session displays for
UHDTV1 and 4K signals
32
When monitoring UHDTV1 or 4K signals (Option 4K), the Video Session display
is divided between two pages. Use the Up/Down arrows to move between the
pages. (See page 77, UHDTV1/4K elements of the Video Session display.)

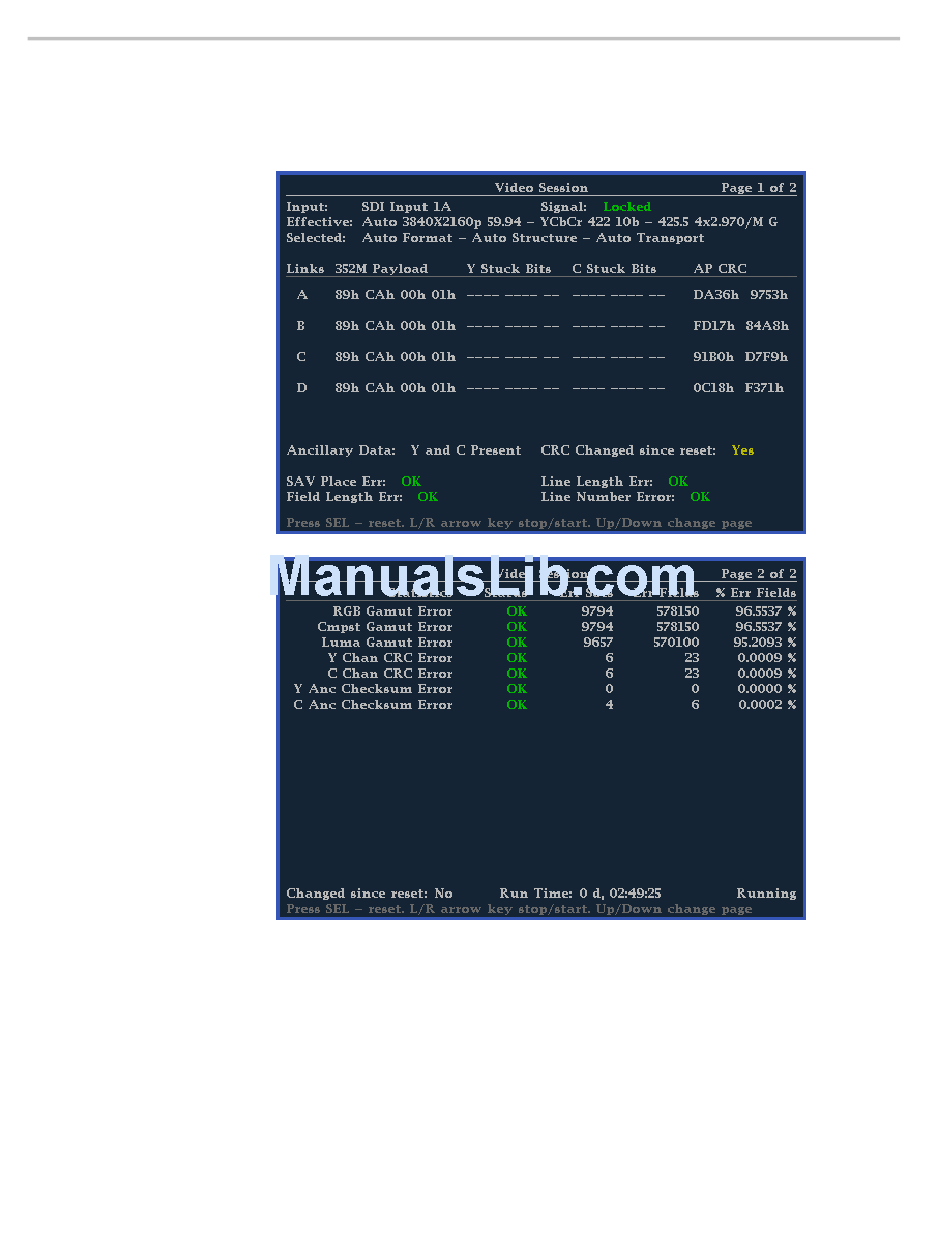

Figure 18: Video Session display of UHDTV1 or 4K signal
WVR8200 and WVR8300 User Manual
