Quick selection of 1-8 or
9-16 channels of embedded
audio
UHDTV1/4K audio
monitoring
WVR8200 and WVR8300 User Manual
1. Select a tile.
2. Press and hold the Audio button to open the Audio display in a tile and pop
up the Audio menu.
3. Use the arrow keys and SEL button to make selections in the steps that follow.

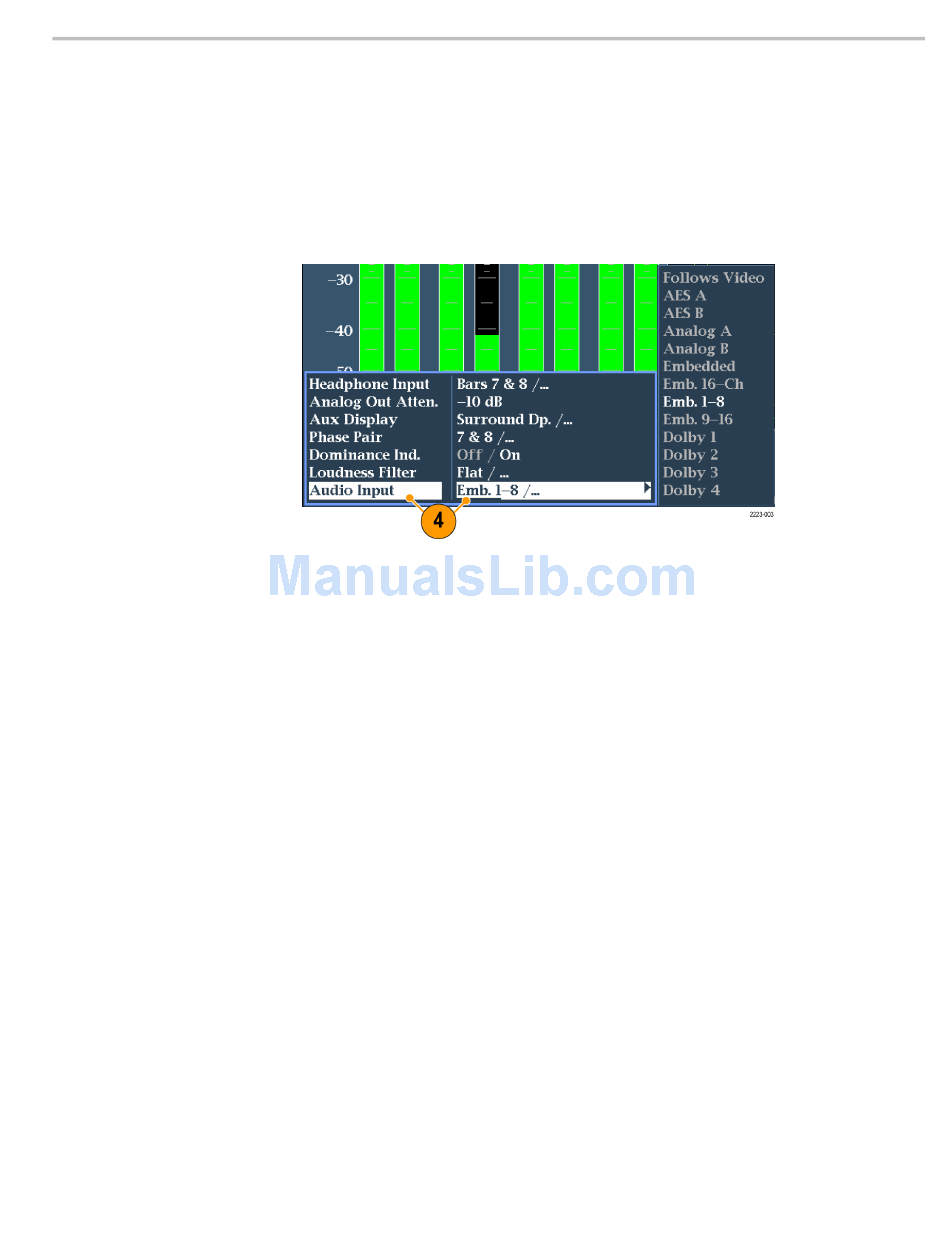

4. Select Audio Input and then select Emb. 1-8 or Emb. 9-16.
When monitoring UHDTV1/4K signals, the monitoring is based on Dual Link
audio mapping with only the first two links being monitored.
