1+1 Hot Standby ODU Installation
The installation of the 1+1 Hot Standby ODU is done using a combiner which has two
latch mount positions for main and standby ODUs, and the latch and bolt mount for
connecting to the antenna. The ODUs may be attached to the combiner first and the
combiner bolted and latched to the antenna next as shown below. Two IF cables must
be run to each of the two IDUs.
The ODUs must be mounted using the same polarization for 1+1 hot standby operation.
For more detail see the manual for the SMC-XX-XX combiner family.

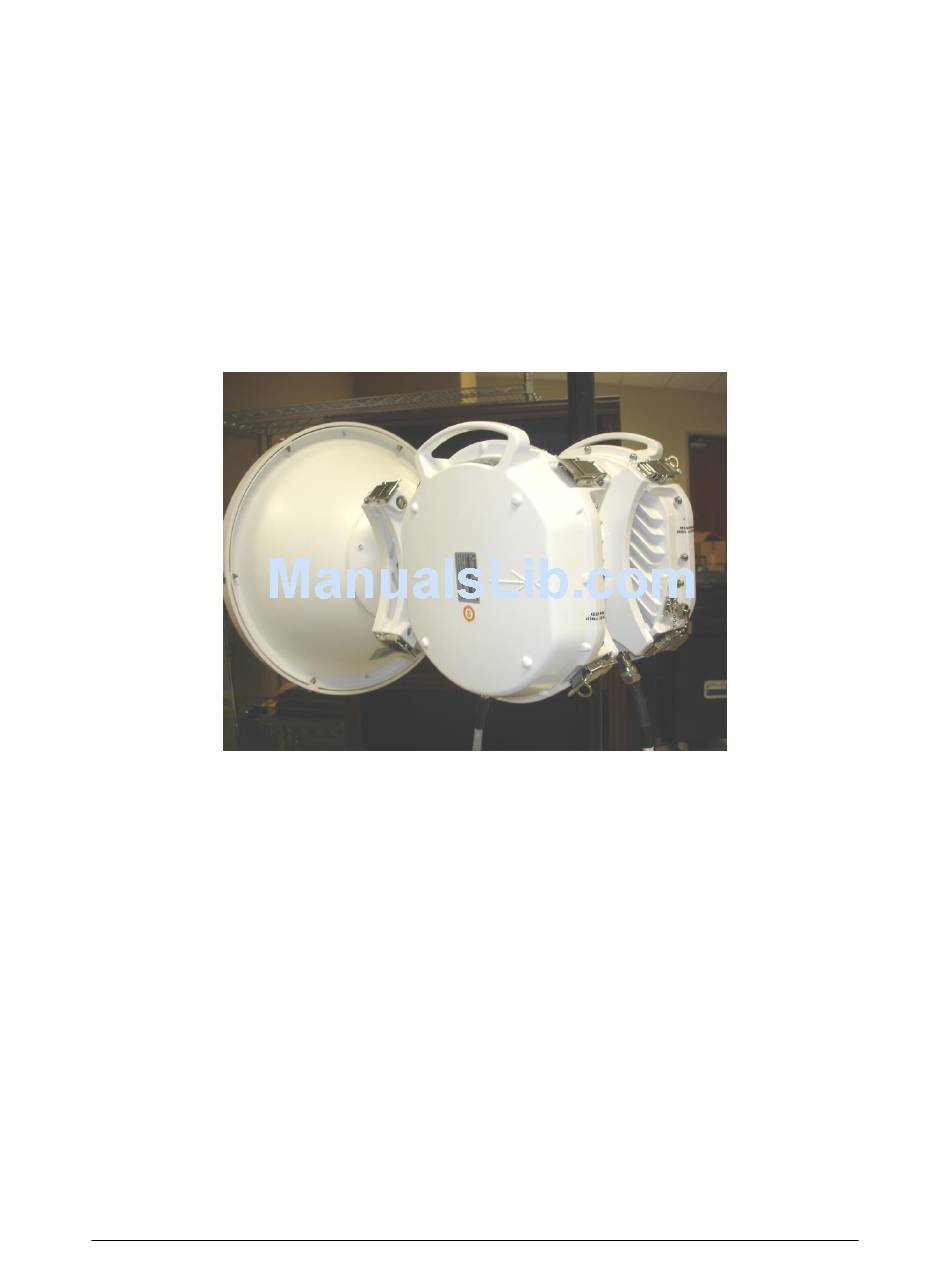

Figure 30 ODUs on SMC combiner (1+1)
