DB9 Port Interfaces

DB9 Console cable Pin-outs

The console cable is a null modem cable with female DB9 connectors (Figure 48) on
both sides. The pin outs for creating a console cable are listed in Table 13.
Trango Systems, Inc.

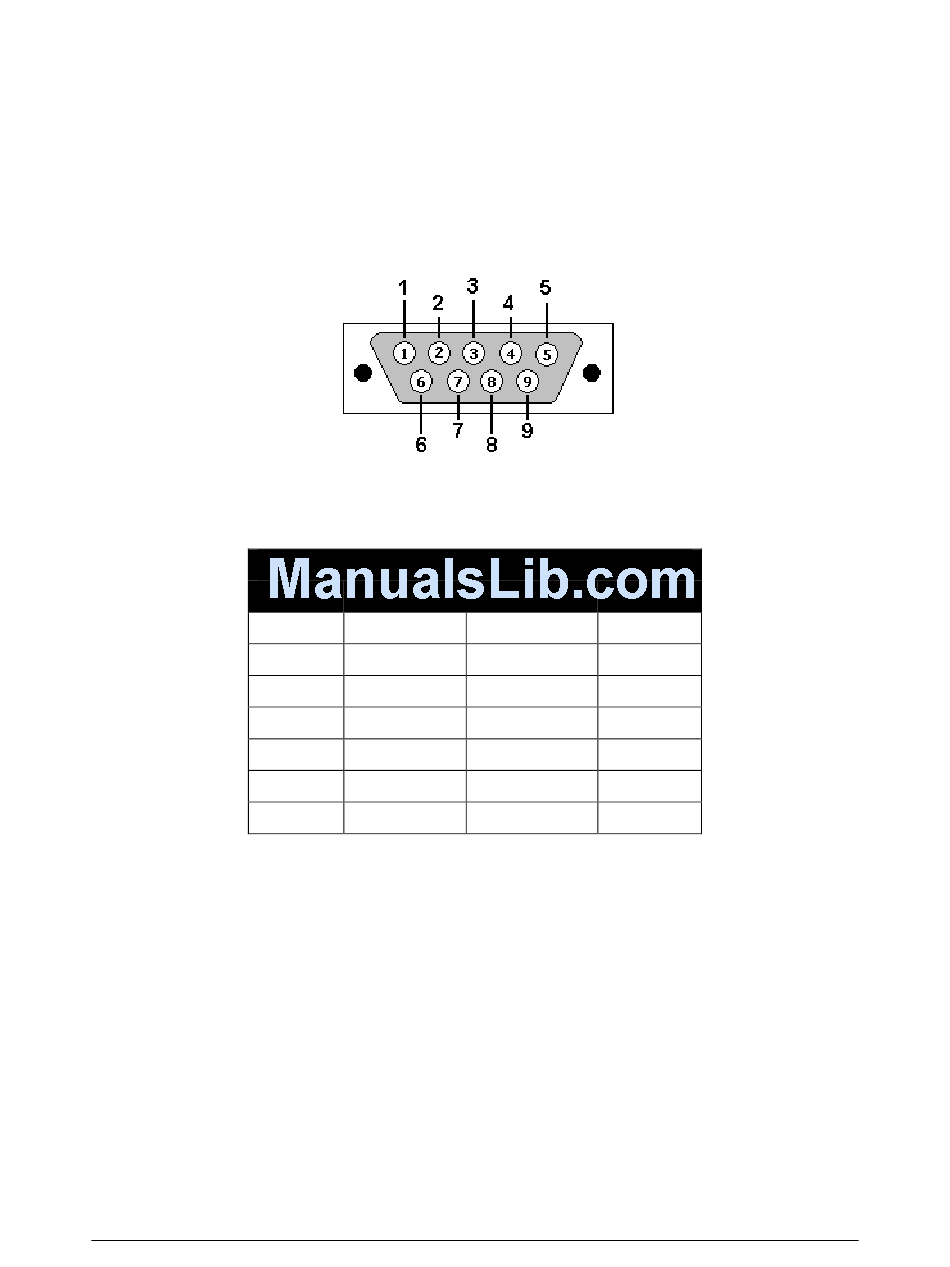

Figure 61 Console Cable Connector

Console Cable Pin outs
IDU Signal
1,6 CD
2 RxD
3 TxD
4 DTR
5 GND
7 RTS
CTS

Table 15 Console Cable Pin-outs

GigaPlus User Manual Rev 3.1
Direction PC
IN 4
IN 3
OUT 2
OUT 1,6
5
OUT 8
IN 7
