Figure 50 Diagnostic Options - Trango Systems TrangoLINK GigaPlus User Manual

Config Execute executes the config file just imported. The config should be saved after
the verification of proper operation.
.

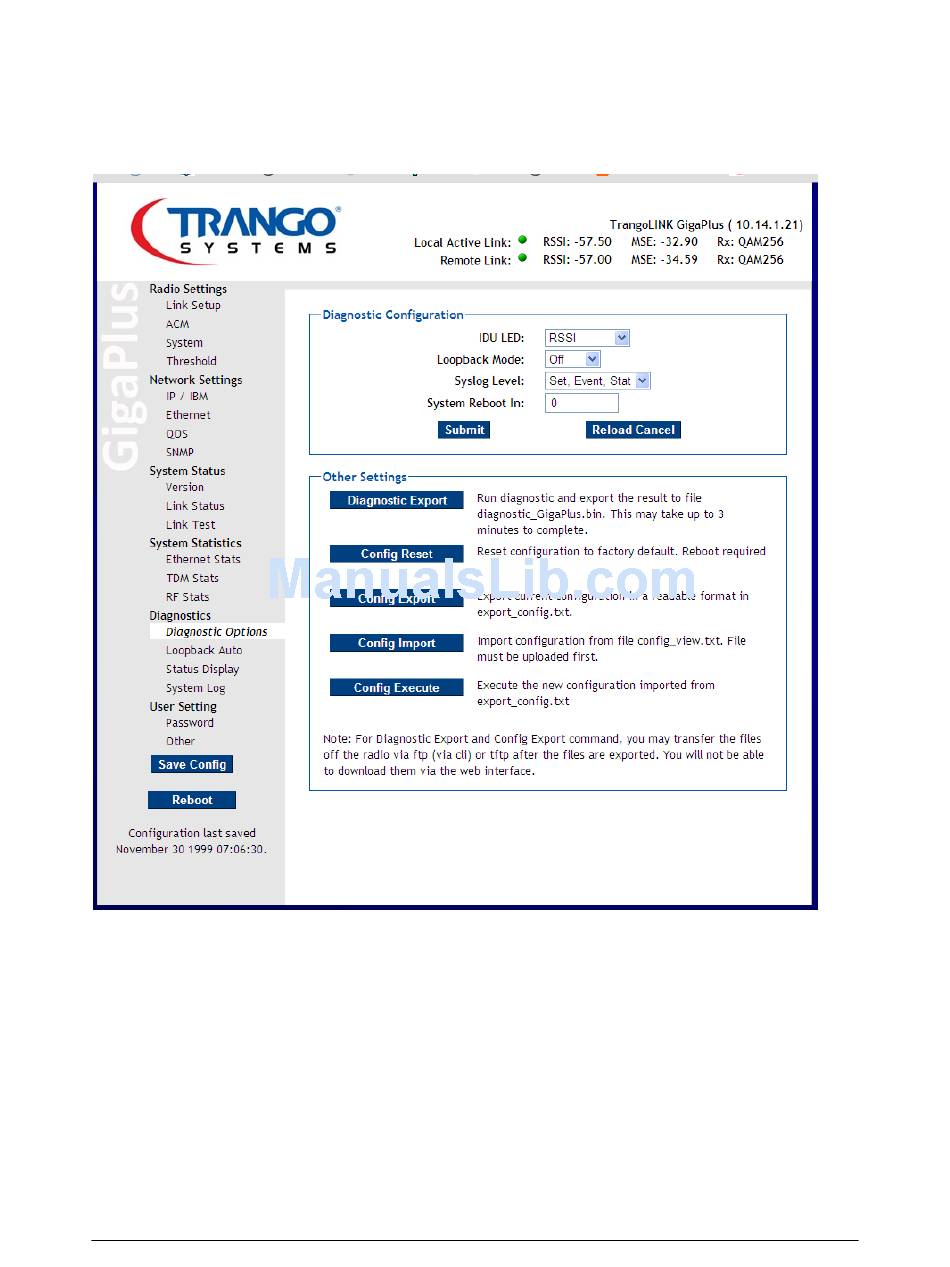

Figure 50 Diagnostic Options

Loopback Auto runs a Linktest in the digital and IF loopback modes automatically so
that the link restores upon completion. This is very useful for running diagnostics on the
far end of a link where communication will be lost during the test. The Link will be
broken during the test so ensure that a maintenance window is planned. For a single
iteration the link will be down for up to 10 seconds.
108
Trango Systems, Inc. GigaPlus User Manual Rev 3.1
