Appendix C – Cable Wiring
This appendix shows the wiring of the various interfaces on the GigaPlus unit.

Ethernet Cabling

The Figures below show the cable pin-outs for straight-through and cross-over Ethernet
cables. The images below conform to EIA/TIA industry standard for 568 A and B.
If the first and second pins are orange, the cable is 568B. If the first and second pins are
green, the cable is 568A (Figure 46).
If one end of the cable is A and the other end is B it is a cross-over cable.

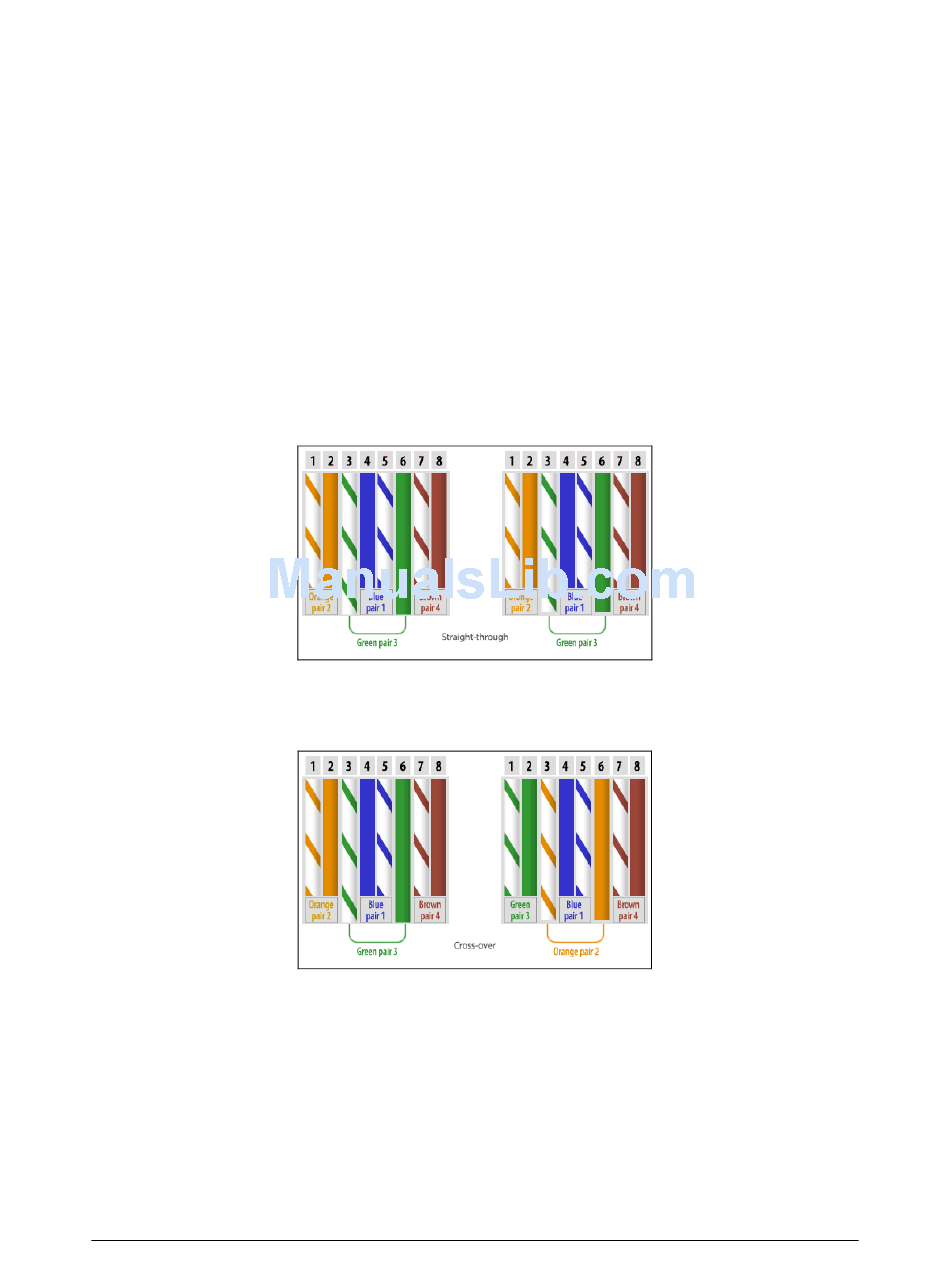

Figure 59 EIA/TIA 568A Straight through

Figure 60 EIA/TIA 568B Cross-Over
