3.0 Network Operation Detail

This section describes key network related elements of the system in detail.

1+0 Non-Protected Link Configuration

The diagram below shows the typical setup of the GigaPlus in a network environment.
Although this configuration is call non-protected, it is commonly used in ring
architectures which use layer 2 or 3 routing to reroute the traffic the other direction if
the link fails.
The Figure below shows the non-protected 1+0 link setup with switches or routers.

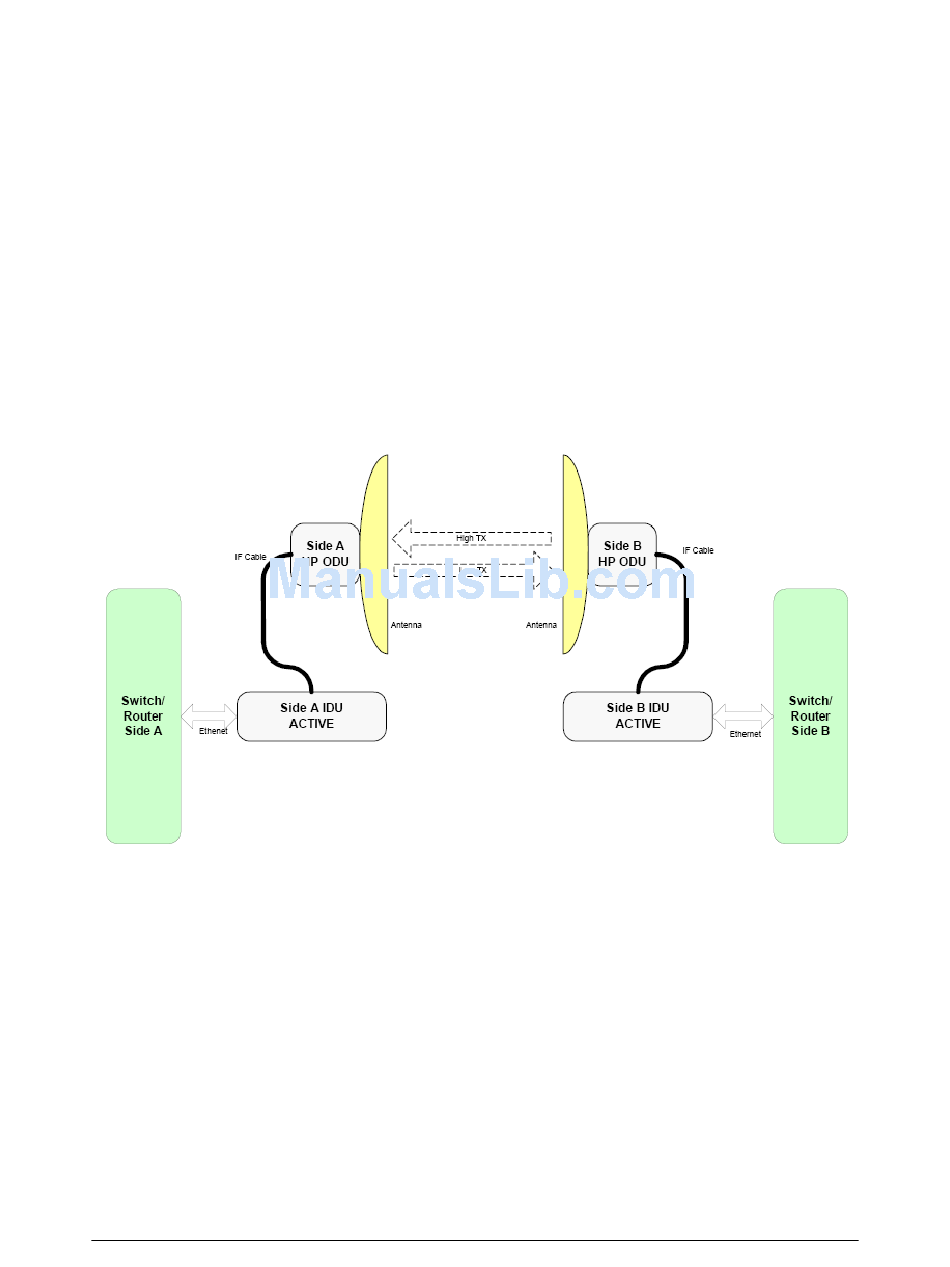

Figure 10 1+0 Setup
