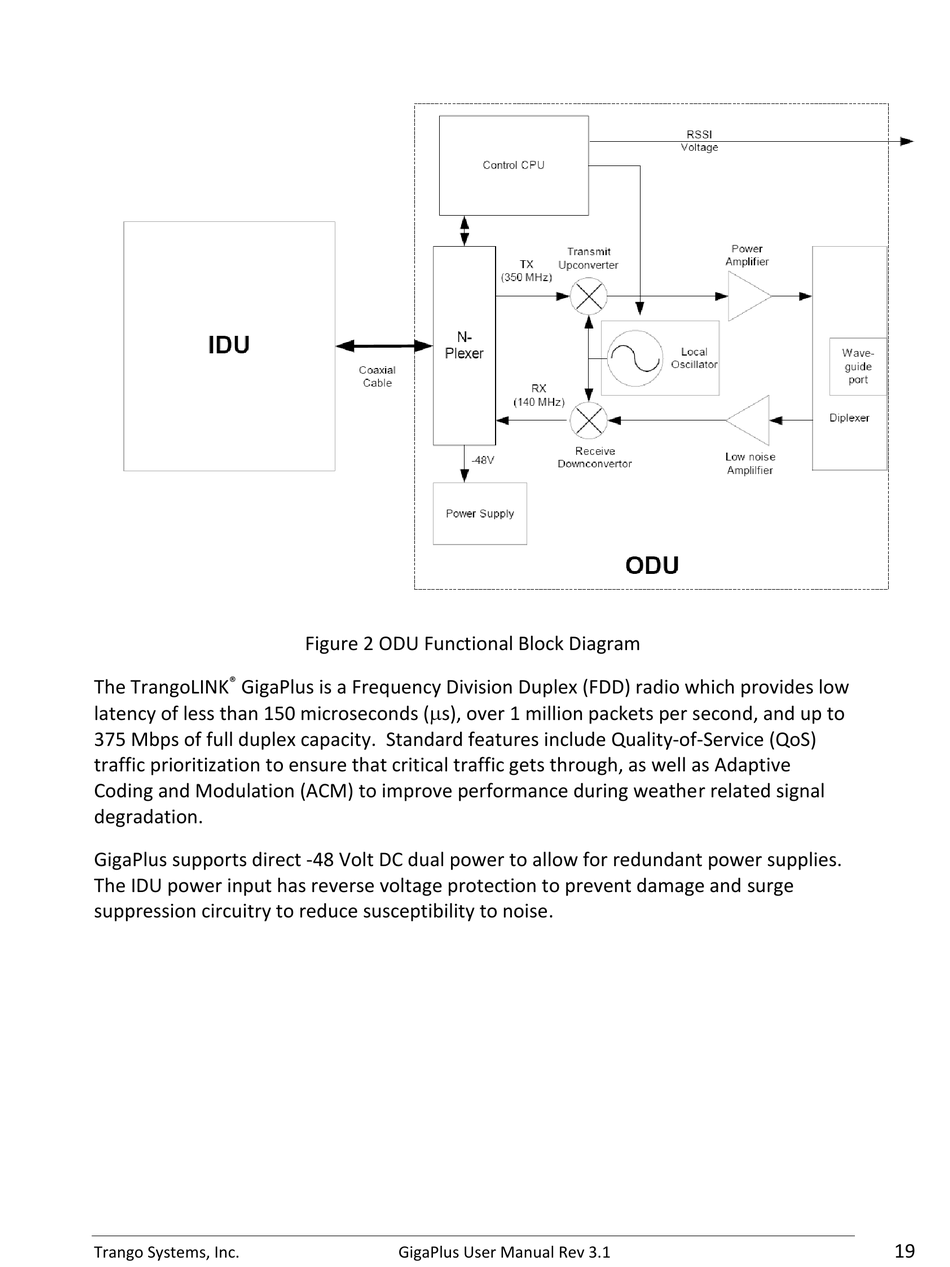

Figure 2 ODU Functional Block Diagram

®
The TrangoLINK GigaPlus is a Frequency Division Duplex (FDD) radio which provides low
latency of less than 150 microseconds (s), over 1 million packets per second, and up to
375 Mbps of full duplex capacity. Standard features include Quality-of-Service (QoS)
traffic prioritization to ensure that critical traffic gets through, as well as Adaptive
Coding and Modulation (ACM) to improve performance during weather related signal
degradation.
GigaPlus supports direct -48 Volt DC dual power to allow for redundant power supplies.
The IDU power input has reverse voltage protection to prevent damage and surge
suppression circuitry to reduce susceptibility to noise.
