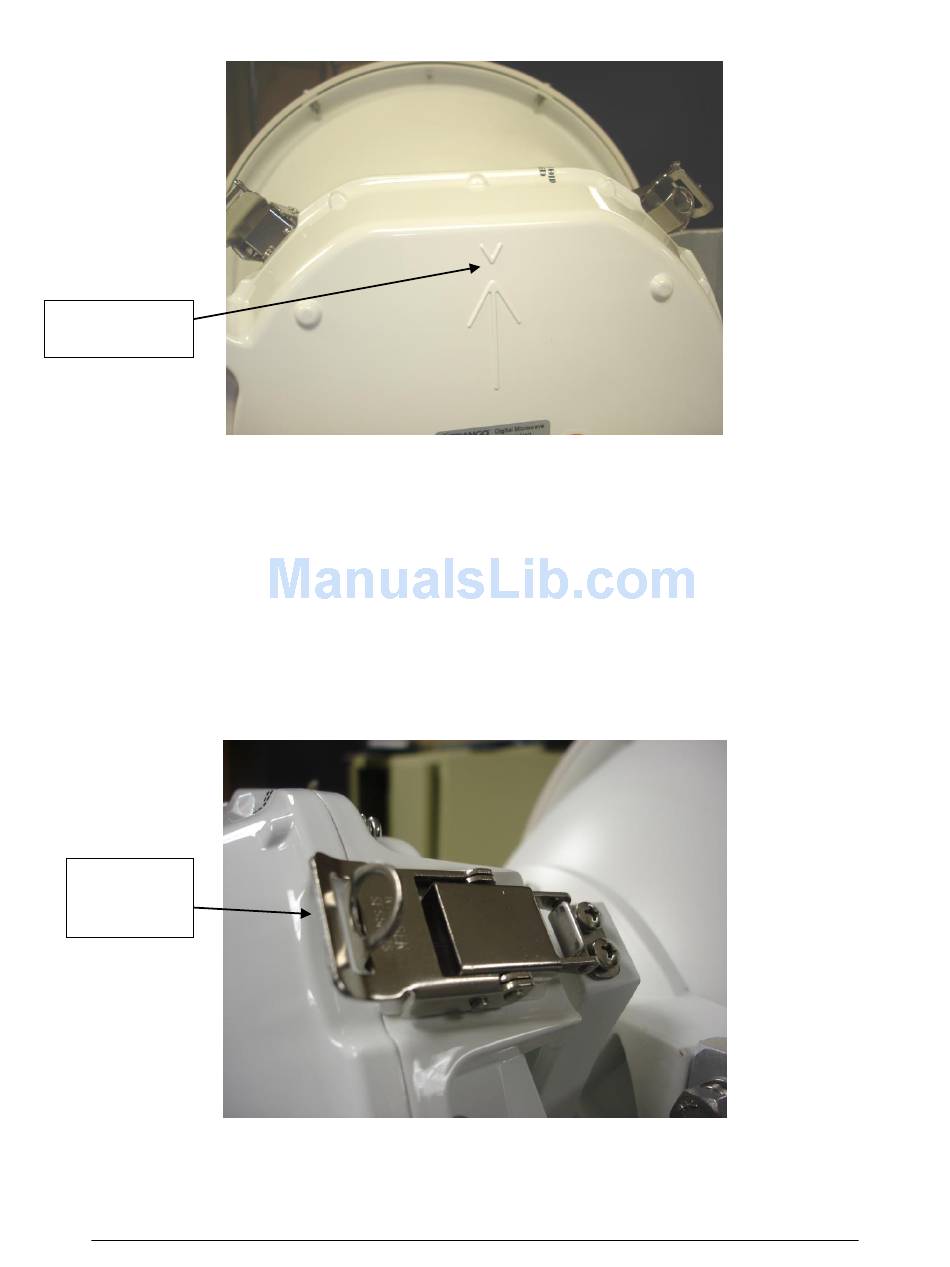

Figure 25 Polarization Indication; Figure 26 Latch - Trango Systems TrangoLINK GigaPlus User Manual

"V" polarization
indicator at top
Cover the antenna O-ring with silicone grease per the Antenna manual. Failure to do
this may result in a damaged O-ring and subsequent damage to or water intrusion into
the antenna or ODU.
Gently slide the ODU onto the antenna and clip the four spring loaded latches to the
antenna clips as shown below. The latches should be very snug and "click" into place. If
there is difficulty closing the latches, then check the waveguide for debris or foreign
matter around the perimeter.
Secure the latches that have eyelets with locks if desired.
Latch with
Eyelet
Trango Systems, Inc.

Figure 25 Polarization Indication

Figure 26 Latch
