Location of Serial No. and Out of Band MAC address

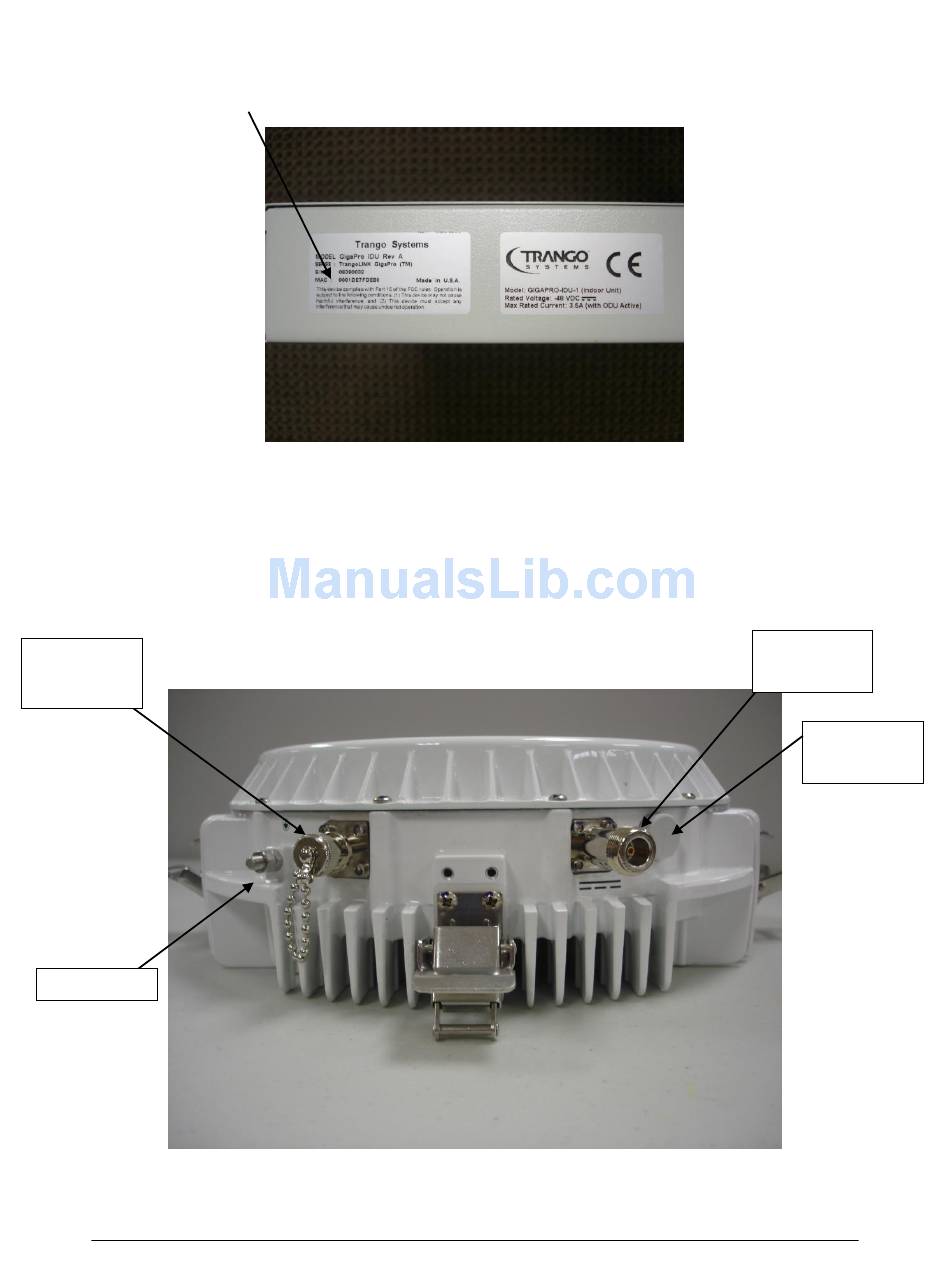

Figure 4 Side of IDU (Shows where MAC address can be found)
Ports and Indicators – Outdoor Unit
The Figure below shows the various ports on the GigaPlus HP ODU. The HP1 and HP2
ODUs have the same ports but slightly different appearance.
RSSI Voltage
BNC -F
Ground Lug
Trango Systems, Inc.
Figure 5 Outdoor Unit Connectors/Indicators (HP Model)
GigaPlus User Manual Rev 3.1
N-Female IF
Connector
Air Pressure
Vent
