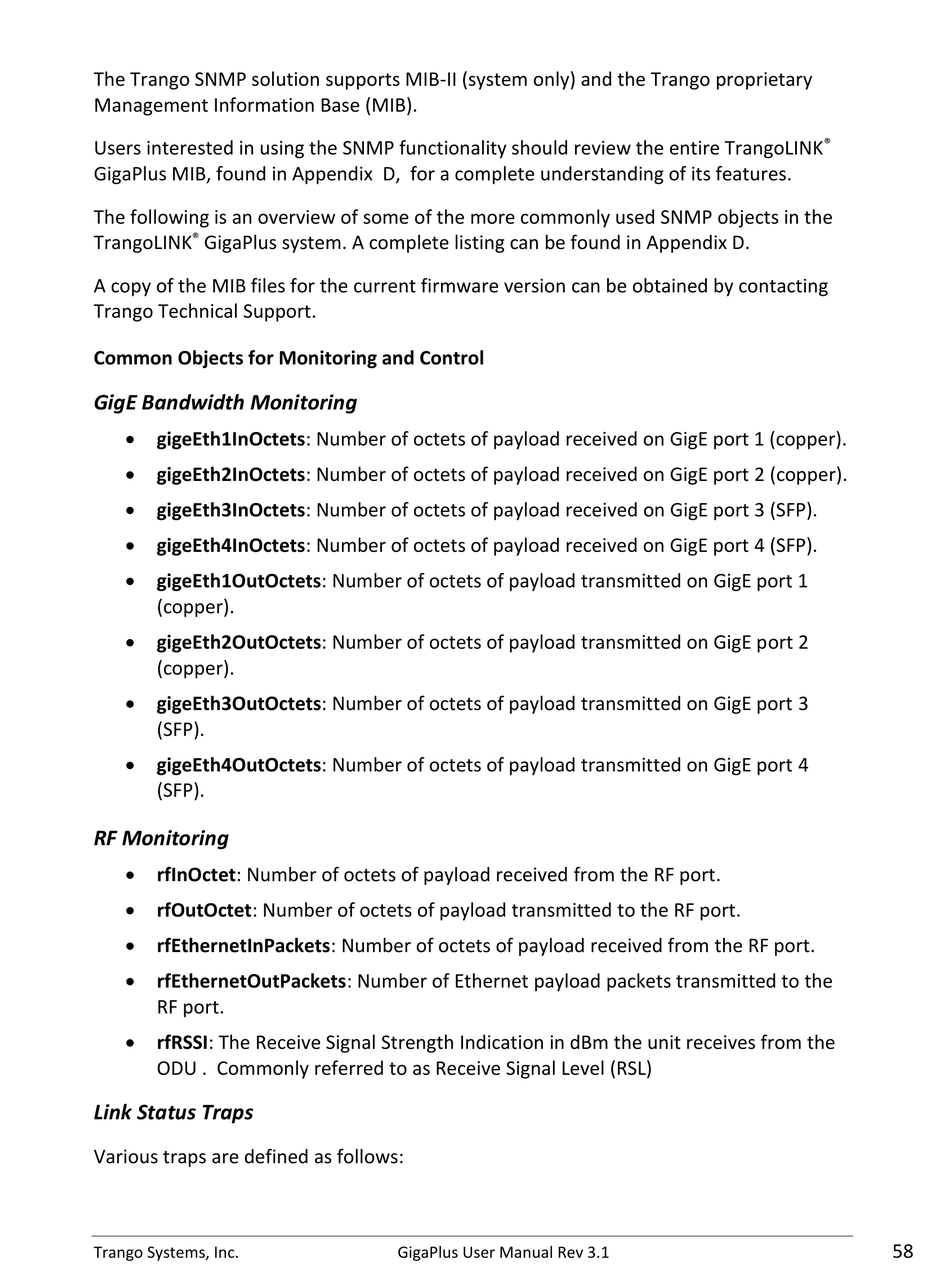

The Trango SNMP solution supports MIB-II (system only) and the Trango proprietary
Management Information Base (MIB).
Users interested in using the SNMP functionality should review the entire TrangoLINK
GigaPlus MIB, found in Appendix D, for a complete understanding of its features.
The following is an overview of some of the more commonly used SNMP objects in the
®
TrangoLINK GigaPlus system. A complete listing can be found in Appendix D.
A copy of the MIB files for the current firmware version can be obtained by contacting
Trango Technical Support.

Common Objects for Monitoring and Control

GigE Bandwidth Monitoring
 gigeEth1InOctets: Number of octets of payload received on GigE port 1 (copper).
 gigeEth2InOctets: Number of octets of payload received on GigE port 2 (copper).
 gigeEth3InOctets: Number of octets of payload received on GigE port 3 (SFP).
 gigeEth4InOctets: Number of octets of payload received on GigE port 4 (SFP).
 gigeEth1OutOctets: Number of octets of payload transmitted on GigE port 1
(copper).
 gigeEth2OutOctets: Number of octets of payload transmitted on GigE port 2
(copper).
 gigeEth3OutOctets: Number of octets of payload transmitted on GigE port 3
(SFP).
 gigeEth4OutOctets: Number of octets of payload transmitted on GigE port 4
(SFP).
RF Monitoring
 rfInOctet: Number of octets of payload received from the RF port.
 rfOutOctet: Number of octets of payload transmitted to the RF port.
 rfEthernetInPackets: Number of octets of payload received from the RF port.
 rfEthernetOutPackets: Number of Ethernet payload packets transmitted to the
RF port.
 rfRSSI: The Receive Signal Strength Indication in dBm the unit receives from the
ODU . Commonly referred to as Receive Signal Level (RSL)
Link Status Traps
Various traps are defined as follows:
