Power Supply Installation
The GigaPlus requires a -48 Volt power supply to power both the IDU and the ODU.

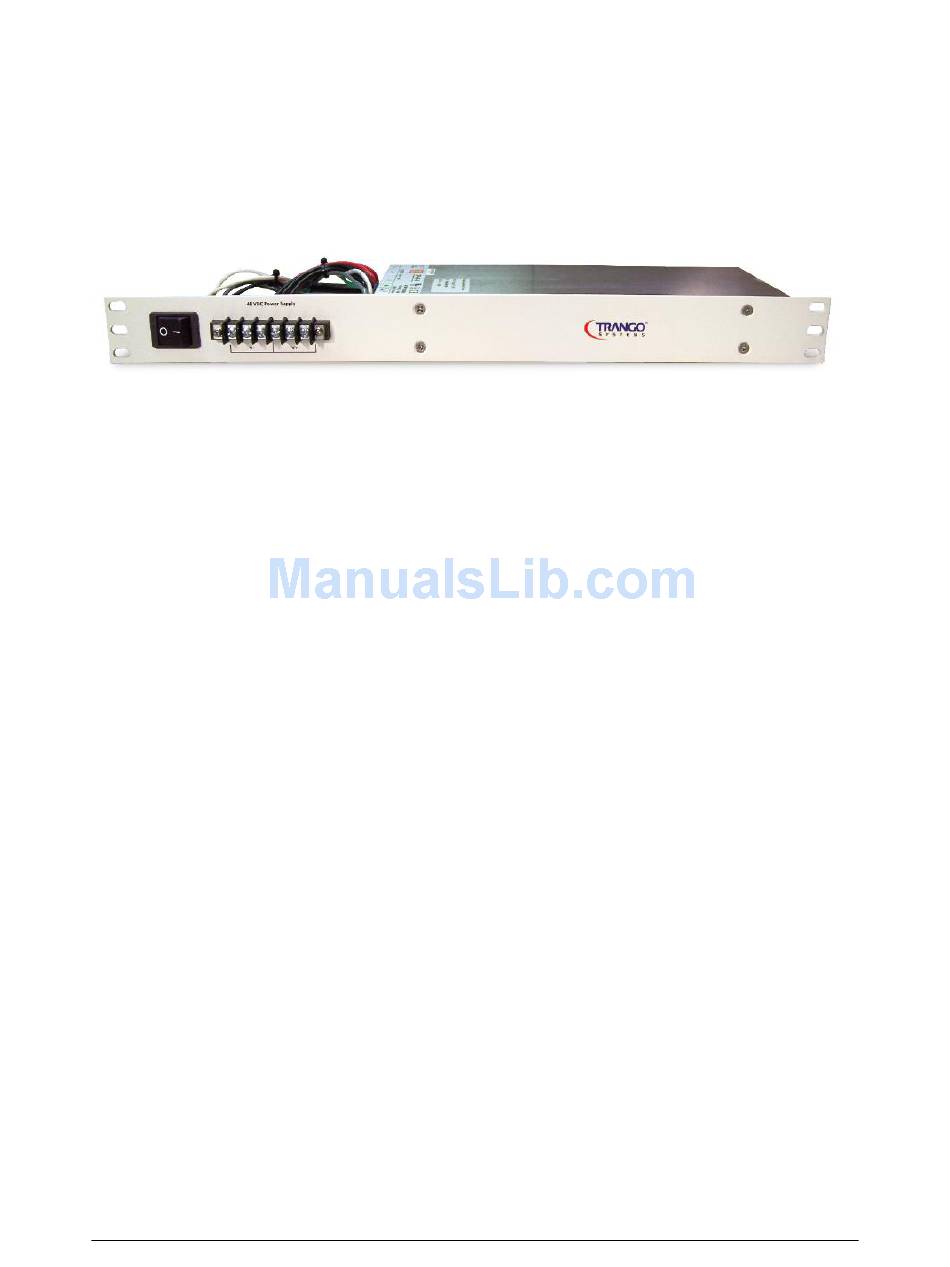

Trango recommends the -48 VDC, 1U rack mount power supply (part# P-SUPPLY-1U-
48). This power supply can support up to two GigaPlus IDUs and ODUs and is shown
below:
Install the power supply in a temperature controlled shelter or standard 19 inch rack
using the holes provided.
NOTE: Ensure that only a -48 Volt Supply is used and that the wiring is correct. If a +48
VDC supply is used and the Earth ground is wired to the negative terminal shown in
the figure, permanent damage to the unit may occur.
71
Trango Systems, Inc.
GigaPlus User Manual Rev 3.1
