Console Port; Simple Network Management Protocol (Snmp); Figure 14 Console Port Setting - Trango Systems TrangoLINK GigaPlus User Manual

Console Port

GigaPlus features a console port which is multiplexed with the port for the 1+1 hot
standby operation. If 1+1 hot standby is active the console cable cannot be used. The
console port is useful in the event that the unit cannot be accessed via TCP/IP (HTTP or
Telnet). A Terminal Emulation program such as HyperTerminal or Putty can be used to
access the radio's CLI via the console port as shown in Figure 12.

Simple Network Management Protocol (SNMP)

®
TrangoLINK GigaPlus supports Simple Network Management Protocol (SNMP) for
network management. Network management consists of 4 categories:
1. Configuration
2. Accounting
3. Alarm
4. Monitoring/Control
These capabilities allow the network operator to provide superior services through
higher network accessibility and integrated accounting system. Use of SNMP requires
the customer to have already implemented a NMS or SNMP software package.
Trango Systems, Inc.

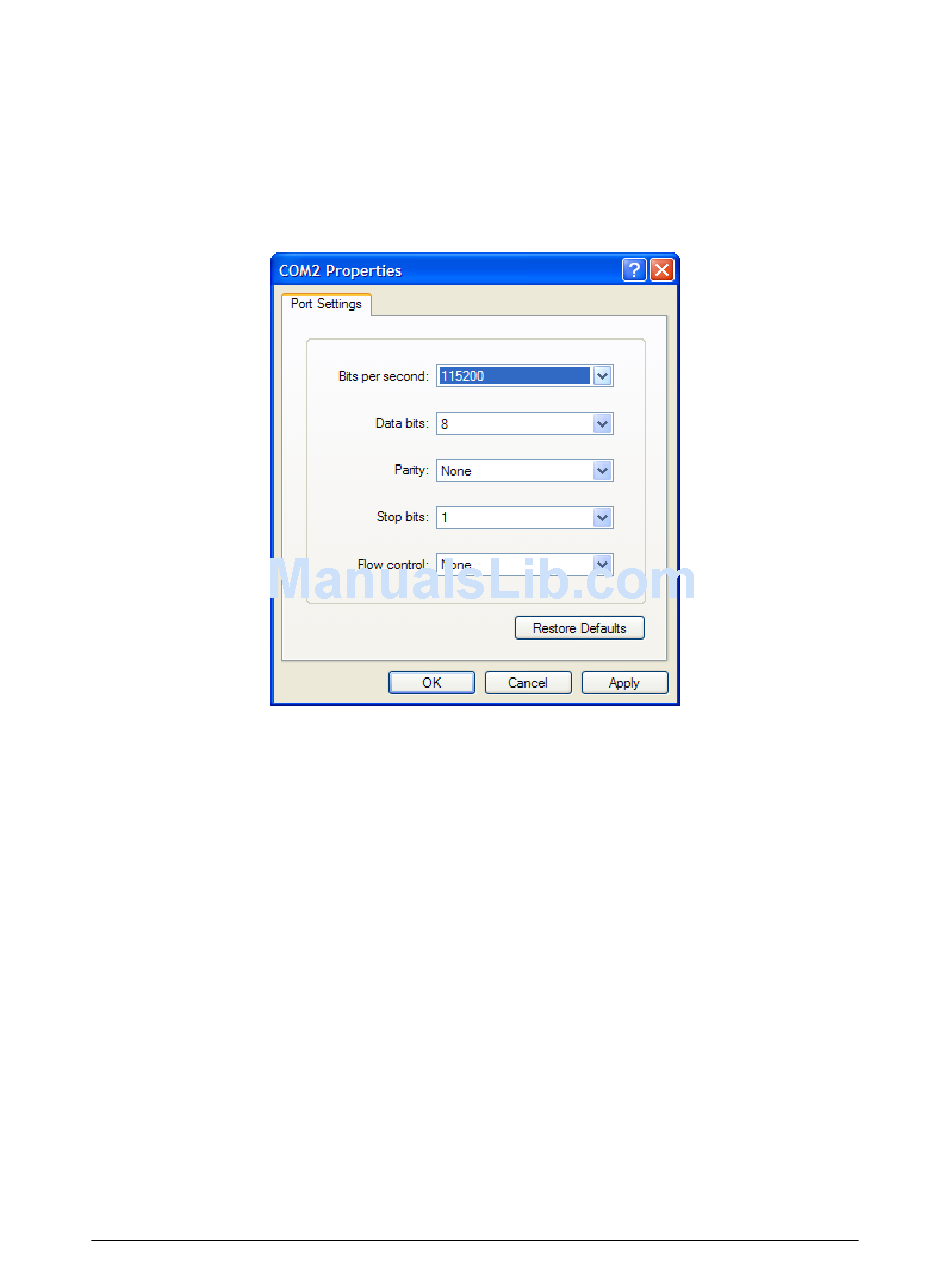

Figure 14 Console Port Setting

GigaPlus User Manual Rev 3.1
57
