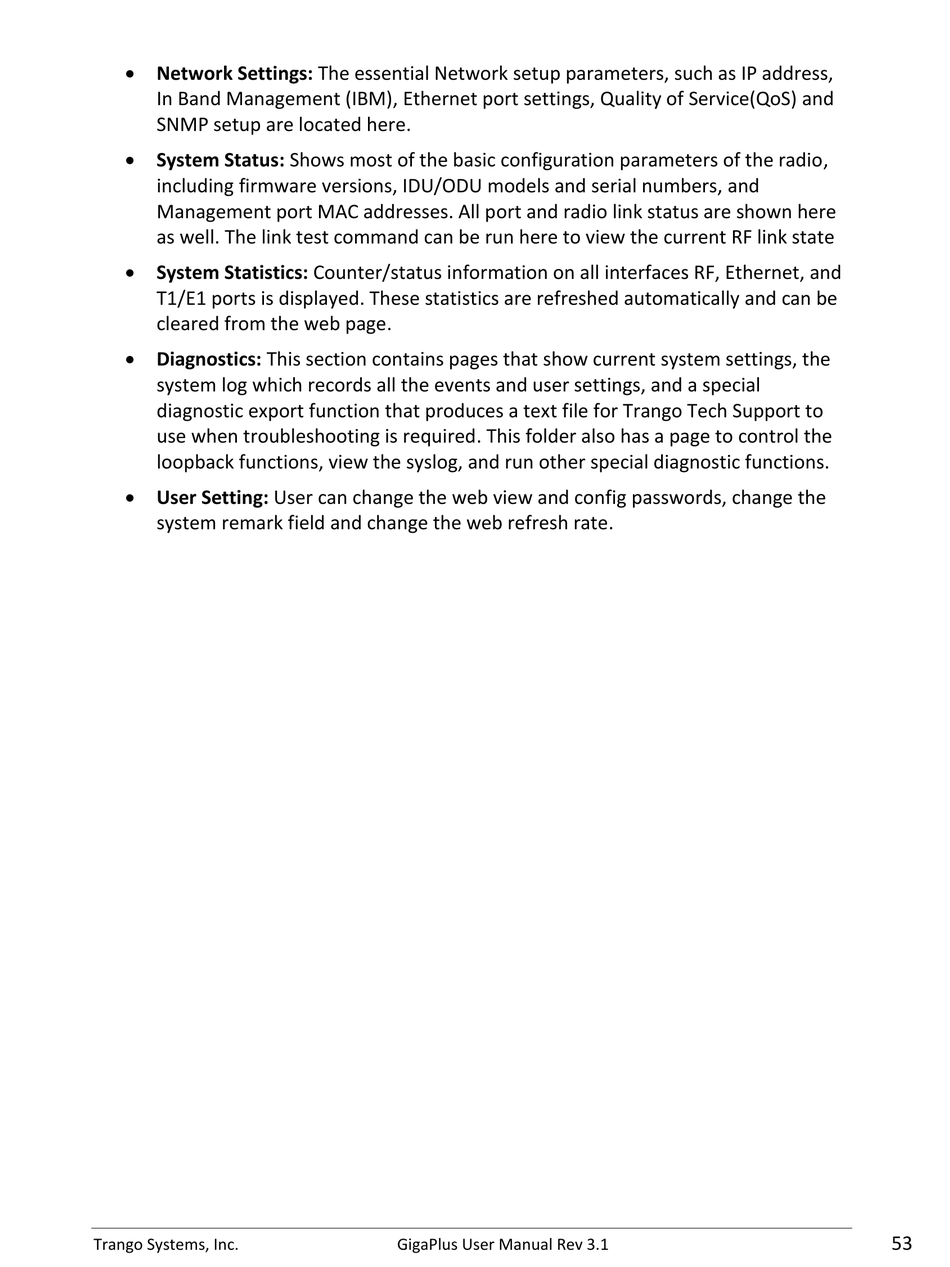

 Network Settings: The essential Network setup parameters, such as IP address,
In Band Management (IBM), Ethernet port settings, Quality of Service(QoS) and
SNMP setup are located here.
 System Status: Shows most of the basic configuration parameters of the radio,
including firmware versions, IDU/ODU models and serial numbers, and
Management port MAC addresses. All port and radio link status are shown here
as well. The link test command can be run here to view the current RF link state
 System Statistics: Counter/status information on all interfaces RF, Ethernet, and
T1/E1 ports is displayed. These statistics are refreshed automatically and can be
cleared from the web page.
 Diagnostics: This section contains pages that show current system settings, the
system log which records all the events and user settings, and a special
diagnostic export function that produces a text file for Trango Tech Support to
use when troubleshooting is required. This folder also has a page to control the
loopback functions, view the syslog, and run other special diagnostic functions.
 User Setting: User can change the web view and config passwords, change the
system remark field and change the web refresh rate.
