Weather Proofing Cabling

It is important to properly seal each antenna connection to protect against moisture and
corrosion. Trango Systems recommends using Coax-Seal which should be applied over
the ODU N-Type connector. Coax-Seal is a gum-like tape which is applied by wrapping
around the connector and then compressed/molded to form a single cohesive
protective covering over the connector.

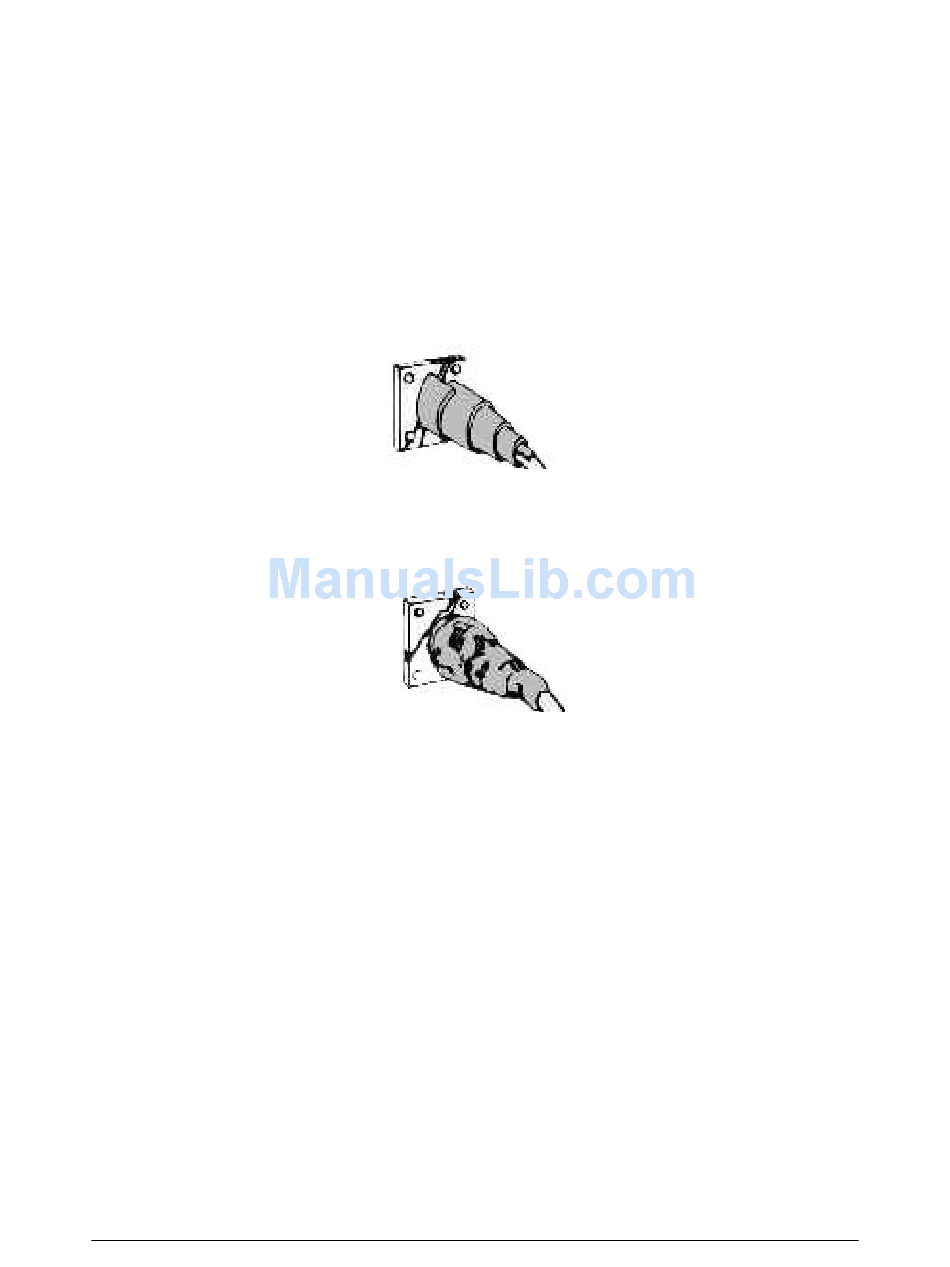

To properly apply the Coax-Seal product first wrap the connector/case as shown in
Figure 28:

Figure 28 Weather Proofing of cable

Secondly, compress the Coax-Seal product to mold into a single protective covering
(Figure 29):

Figure 29 Complete weather proofing of cable
