CDM-570/570L Satellite Modem with Optional IP Module
IP Module CLI and Telnet Operation
17.2.2.1 Fast Ethernet Interface (fei0) Page

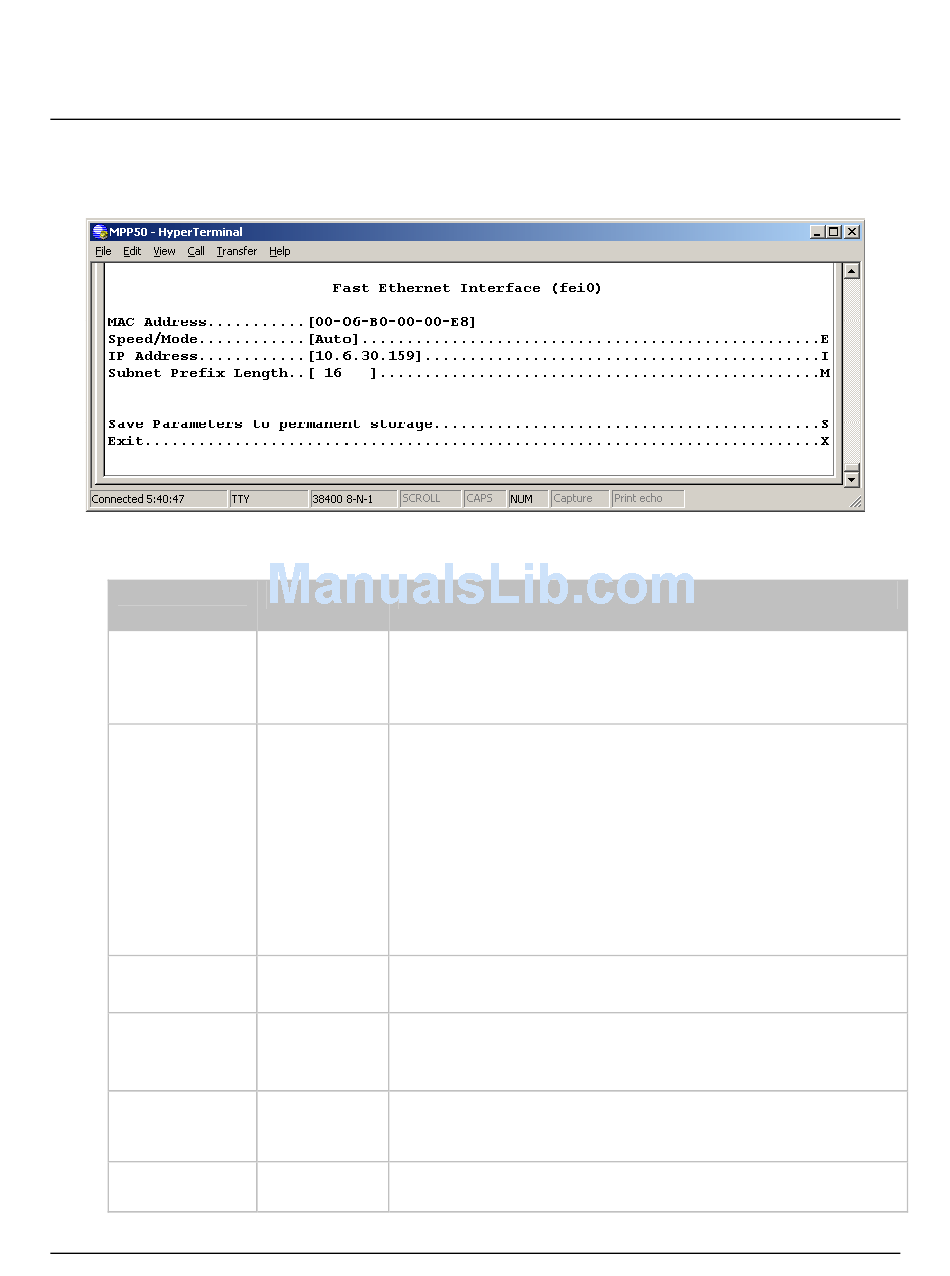

The Fast Ethernet Interface page is activated from the Interface Configuration page.
The Fast Ethernet Interface page contains the following options/fields:
Menu
Options/Fields
MAC Address
Speed/Mode
IP Address
Subnet Prefix
Length
Save
Parameters
Exit
Entry
Read Only The MAC Address defines the hardware destination MAC
Address that is used when an Ethernet packet is destined for
IP M
the
unique and has been assigned permanently at the factory.
E The Ethernet Speed Mode is a configurable parameter and
thus its exact setting can vary between specific installations.
The default setting allows the Ethernet port to auto negotiate
its link speed on power-up. Selections are:
1 -- Auto
2 -- 10 MB/sec Half Duplex
3 -- 100 MB/sec Half Duplex
4 -- 10 MB/sec Full Duplex
5 -- 100 MB/sec Full Duplex
I This is the IP Address assigned the Ethernet Traffic Interface.
Enter the IP address in aaa.bbb.ccc.ddd format
M Specifies the Subnet Mask assigned to the Ethernet Traffic
Interface.
Enter the subnet mask prefix length (8...30)
S This option allows a user to save the current configuration to
permanent storage. This configuration will be restored on
each successive power cycle.
X This option allows a user to exit the current menu and return
to its parent menu.
