CDM-570/570L Satellite Modem with Optional IP Module
Quick-Start Guide
D.2 easyConnect Point-to-Point System Configuration
Ethernet Interface (fei0)
IP Address:
Mask:
Satellite IP Modem (CDM-IP 1)
IP Address:
Mask:
10 BaseT
Ethernet Hub
The steps in this guide will lead to the following configuration:

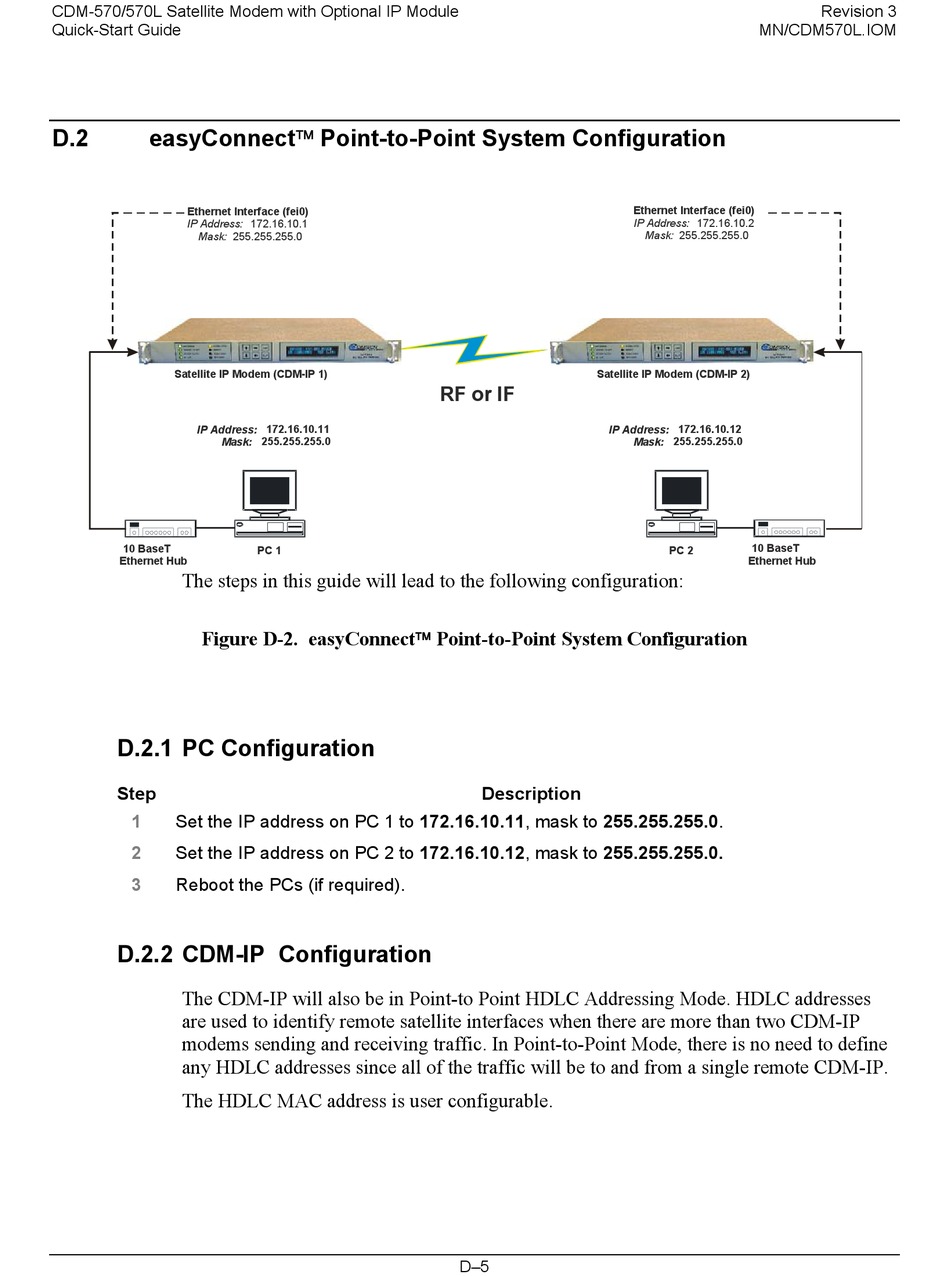

Figure D-2. easyConnect Point-to-Point System Configuration

D.2.1 PC Configuration

Step
1 Set the IP address on PC 1 to 172.16.10.11, mask to 255.255.255.0.
2 Set the IP address on PC 2 to 172.16.10.12, mask to 255.255.255.0.
3 Reboot the PCs (if required).

D.2.2 CDM-IP Configuration

The CDM-IP will also be in Point-to Point HDLC Addressing Mode. HDLC addresses
are used to identify remote satellite interfaces when there are more than two CDM-IP
modems sending and receiving traffic. In Point-to-Point Mode, there is no need to define
any HDLC addresses since all of the traffic will be to and from a single remote CDM-IP.
The HDLC MAC address is user configurable.
172.16.10.1
255.255.255.0
172.16.10.11
255.255.255.0
PC 1
Satellite IP Modem (CDM-IP 2)
RF or IF
IP Address:
Description
D–5
MN/CDM570L.IOM
Ethernet Interface (fei0)
IP Address: 172.16.10.2
Mask: 255.255.255.0
172.16.10.12
Mask: 255.255.255.0
10 BaseT
PC 2
Ethernet Hub
Revision 3
