CDM-570/570L Satellite Modem with Optional IP Module
IP Module CLI and Telnet Operation
17.2.2.2 Satellite/HDLC Interface (HDL0) Page

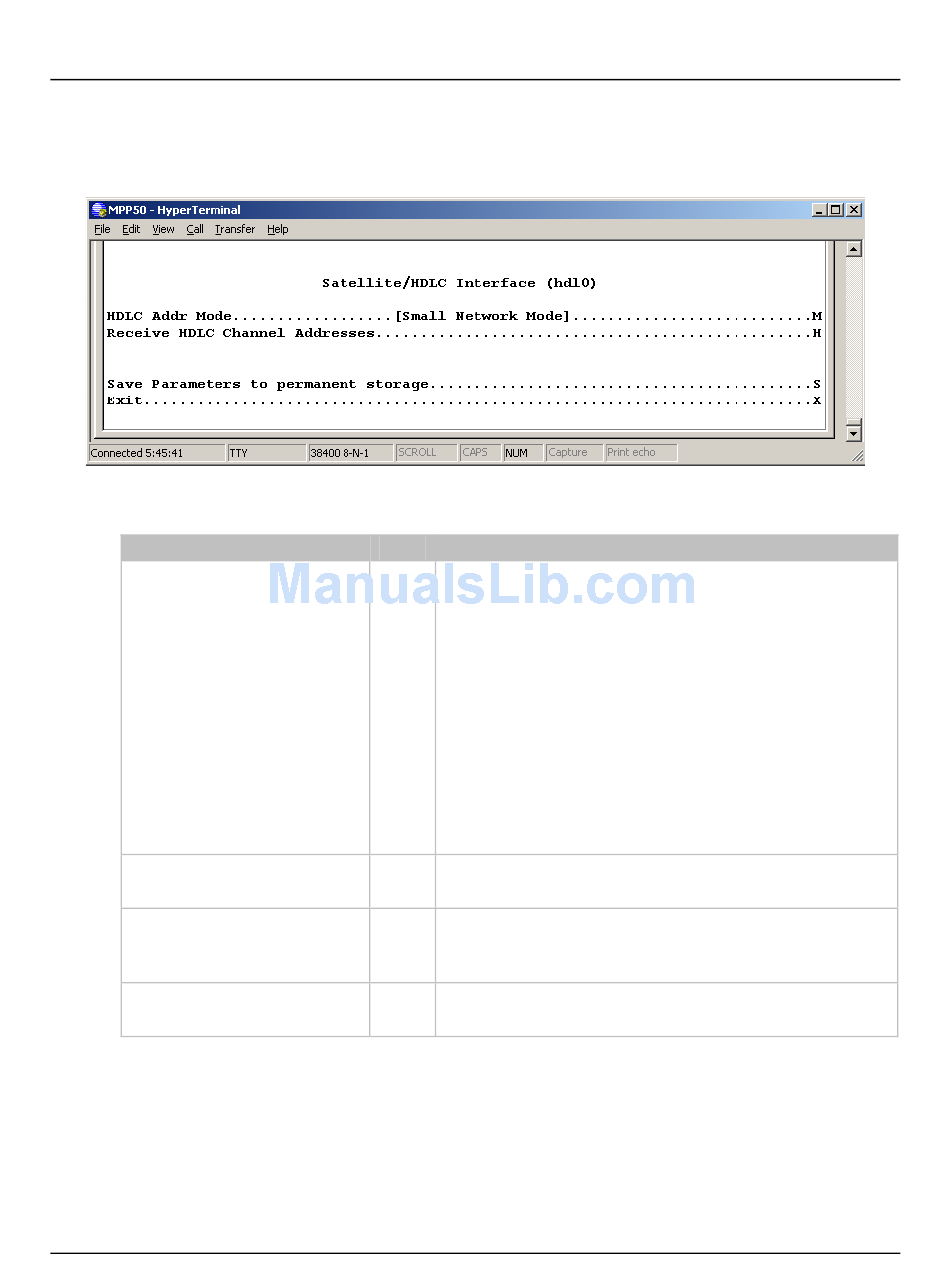

The Satellite/HDLC Interface (HDL0) page is activated from the Interface Configuration
page.
The Satellite/HDLC Interface page contains the following options/fields:
Menu Options/Fields
HDLC Addr Mode
Receive HDLC Channel
Addresses
Save Parameters
Exit
Entry
M Toggles [Point-To-Point Mode], [Small Network Mode],
and [Large Network Mode]
Point-To-Point Mode – In this mode of operation, no
HDLC address is transmitted over the satellite link.
The restrictions on using this mode are that it can only
be used for pure Point-to-Point configurations.
Small Network Mode (up to 254 addresses) - In this
mode of operation a single byte HDLC address will be
transmitted over the satellite link (0x1 – 0xFE).
Large Network Mode (up to to 32766 addresses) - In
this mode of operation a two byte HDLC address will
be transmitted over the satellite link (0x1 – 0xFFFE).
H Activates Receiver HDLC Addresses page.
S This option allows a user to save the current
configuration to permanent storage. This configuration
will be restored on each successive power cycle.
X This option allows a user to exit the current menu and
return to its parent menu.
