CDM-570/570L Satellite Modem with Optional IP Module
Quick-Start Guide
D.3

Router Mode Point-to-Point System Configuration

The steps in this guide will lead to the following configuration:
Ethernet Interface (fei0)
IP Address: 172.16.10.1
Mask: 255.255.255.0
IP Destination
172.17.10.0/24
RX HDLC Address – 0x01
Satellite IP Modem (CDM-IP 1)
IP Address: 172.16.10.11
Mask: 255.255.255.0
GW: 172.16.10.1
10/100 BaseT
Ethernet Hub

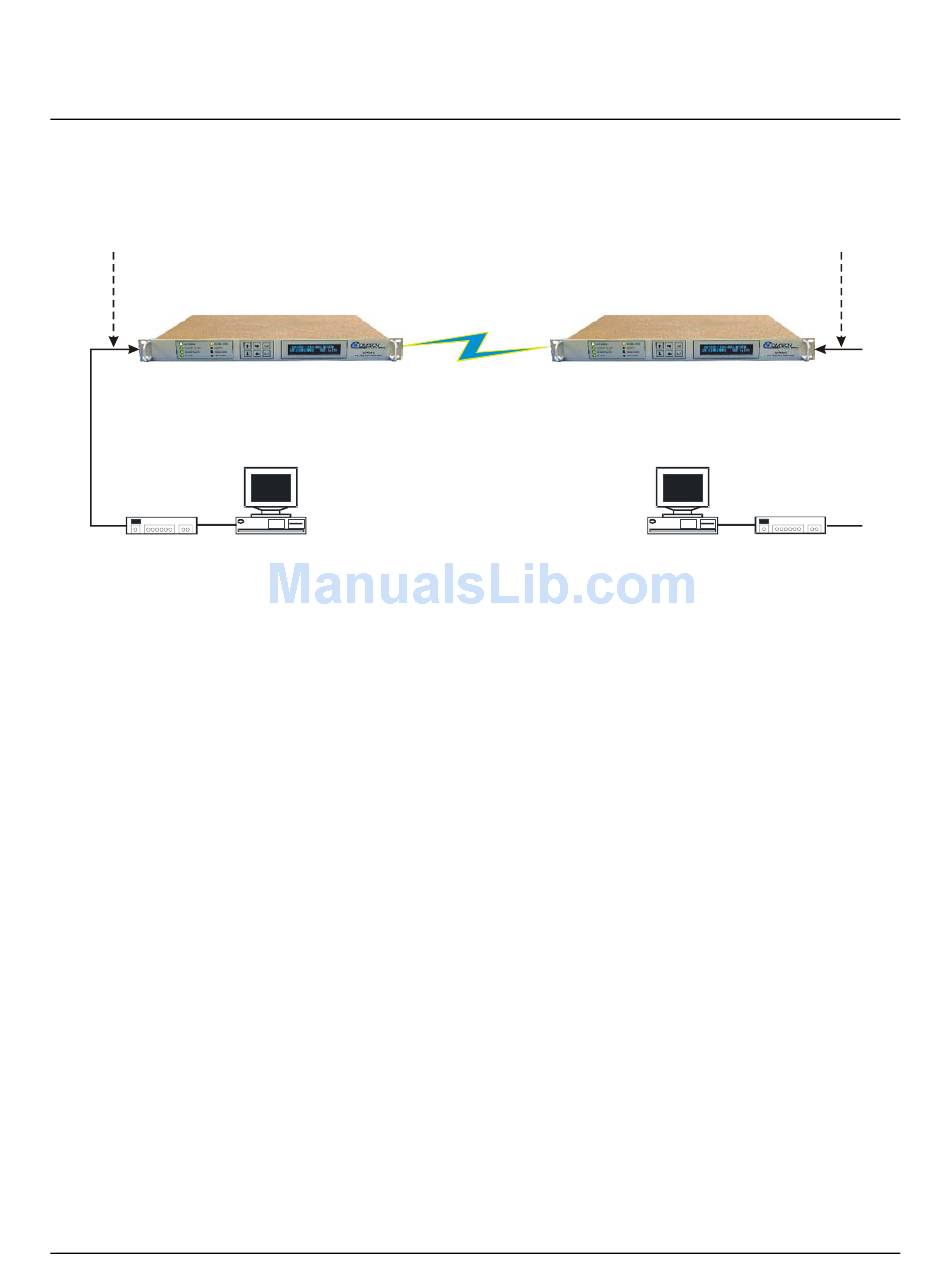

Figure D-3. Router Mode Point-to-Point System Configuration

D.3.1 PC Configuration

Step
1 Set the IP address on PC 1 to 172.16.10.11, mask to 255.255.255.0. Set PC Gateway to
172.16.10.1
2 Set the IP address on PC 2 to 172.17.10.11, mask to 255.255.255.0. Set PC Gateway to
172.17.10.1
Reboot the PCs (if required).
Route Table
Next Hop Type
0x02 To Sat
PC 1
IP Destination
172.16.10.0/24
Satellite IP Modem (CDM-IP 2)
RF or IF
Description
D–7
MN/CDM570L.IOM
Ethernet Interface (fei0)
IP Address: 172.17.10.1
Mask: 255.255.255.0
Route Table
Next Hop Type
0x01 To Sat
RX HDLC Address – 0x02
IP Address: 172.17.10.11
Mask: 255.255.255.0
GW: 172.17.10.1
10/100 BaseT
PC 2
Ethernet Hub
Revision 3
