CDM-570/570L Satellite Modem with Optional IP Module
IP Module CLI and Telnet Operation

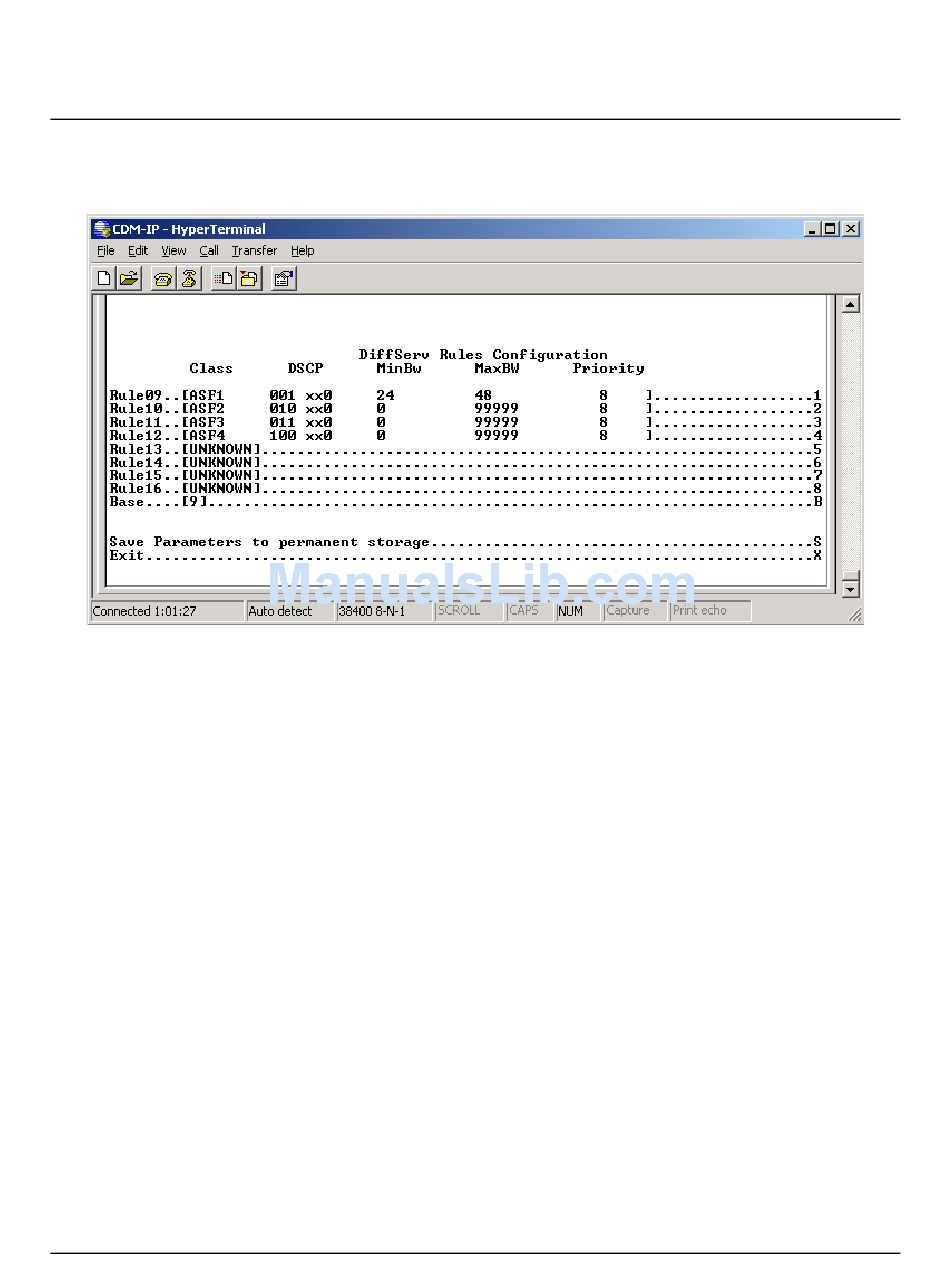

17.2.3.3 16.2.4.2 QoS Configuration Page – DiffServ Mode
The QoS Rules Configuration page is activated from the QoS Configuration page.
In DiffServ Mode, the IP Module will prioritize all traffic by the DSCP value contained
within the IP header of each packet. All packets that do not have a DSCP value will be
placed in the Default Queue and have a Priority of 9.
Configuration of DiffServe Rules is only allowed for Assured Forwarding Classes 1-4
(Rule 9-12), where a Minimum and Maximum Bandwidth can be assigned.
See the Error! Reference source not found.Quality of Service section for a more detailed
description of this QoS option.
